Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 27, 2018, 11:10 AM

  • 16 0331_16 0330_9272018_043520.mp4

Date
09/27/2018
W/O
0729304
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00665
PipeID
P13382
Time
4:10 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0988
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
SAN MARINO
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
21
Purpose
Capital Improvement Program Assesment
Project
20180921MDM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
20 in.
Upstream MH
16 0331
Downstream MH
16 0330
Dir. of Survey
Downstream
Length Surveyed
60.7 ft.
Total Length
60.7 ft.
Structural Index
2
Structural Quick
3526
Structural Rating
27
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
27
Pipe schematic from manhole 16 0331 to 16 0330
MH: 16 0331MH: 16 0330downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:40AM0 ft. MWM - Water Mark, 20 %of cross sectional area6 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE11 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE13.7 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H16.3 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - H16.3 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H17.9 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open26.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL37.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open51.8 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT51.8 ft. B - Broken, at 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT FRACTURE51.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT51.8 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT51.8 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, - SLIGHT54.8 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - SLIGHT54.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT54.8 ft. B - Broken, at 04 o'clock, within 8 inches of joint: YES, Finish - SLIGHT FRACTURE54.8 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES, Finish - SLIGHT55.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active60.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active60.7 ft. AMH - Downstream Manhole, Survey Ends - 5:05AM

Observation photos (3)

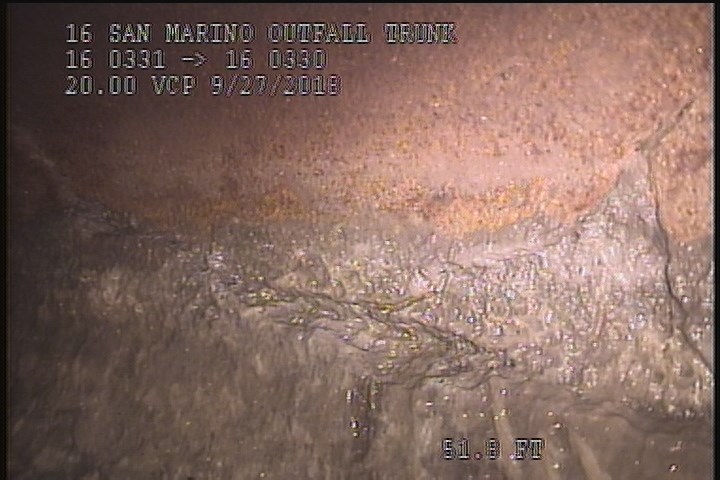

  • Broken, at 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT FRACTURE

    51.8 ft. - Broken, at 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT FRACTURE

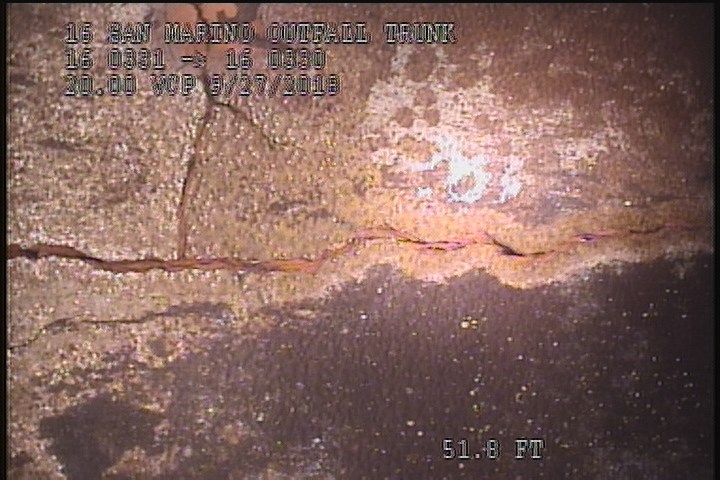

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    51.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

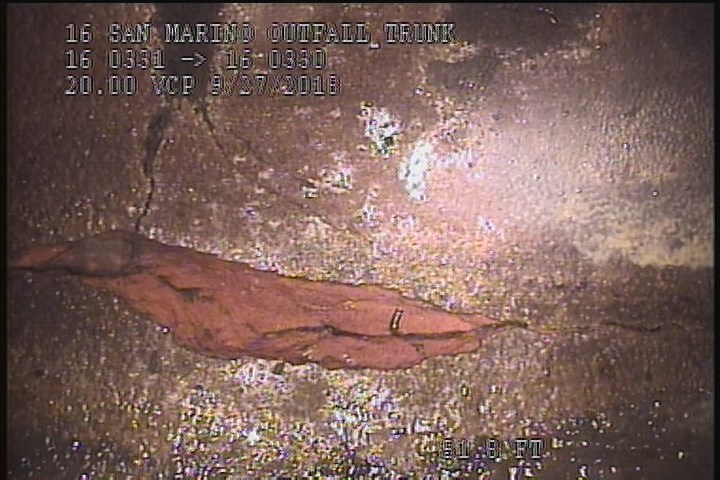

  • Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    51.8 ft. - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P13382Work order 0729304

Observations (23)

DistanceCodeObservation
54.8FLSLIGHT
51.8FLSLIGHT
16.3FCH
11FCHAIRLINE
51.8BSLIGHT FRACTURE
37.3TFOpen
51.8FLSLIGHT
51.8FLSLIGHT
17.9TBOpen
0MWL—
16.3FCH
26.6FLSL
0AMH4:40AM
6FCHAIRLINE
55.9TFActive
54.8FLSLIGHT
51.8FCSLIGHT
0MWM—
13.7FCH
54.8BSLIGHT FRACTURE
54.8FLSLIGHT
60.7AMH5:05AM
60.2MGOConn. @ Mh, 9 O' Clock. Active

Properties (4)

custom_field_three
BROKEN PIPE SLIGHT FRACTURE JOINT TO JOJNT
custom_field_two
2
customer
LACSD
datetime
2018-09-27T04:10:16-07:00
