Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 24, 2018, 07:32 AM

  • 16 0356_16 0355_9242018_025047.mp4

Date
09/24/2018
W/O
0729304
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00665
PipeID
P13407
Time
12:32 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0981
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
SAN MARINO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20180921MDM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Upstream MH
16 0356
Downstream MH
16 0355
Dir. of Survey
Downstream
Length Surveyed
283.9 ft.
Total Length
283.9 ft.
Structural Index
2
Structural Quick
352B
Structural Rating
47
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
49
Pipe schematic from manhole 16 0356 to 16 0355
MH: 16 0356MH: 16 0355downstream0 ft. MGO - General Observation - MH CONN ACTIVE 6:000 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:55AM8.9 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT19.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE21.6 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT24 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - SL24 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL26.5 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H26.5 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - SL27 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Finish - SL30 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H30 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H34 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H36.5 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL44.2 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL45.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open47.3 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SL47.3 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL48.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H48.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open49.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL49.7 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL52.4 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H52.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H54.8 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS54.9 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS54.9 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS54.9 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS75.8 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - ROCK147.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open150.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped247.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped249.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active283.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 50% SLIGHT AT JOINTS283.6 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 15% SLIGHT AT JOINTS283.6 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 15% SLIGHT AT JOINTS283.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 50% HAIRLINE AT JOINTS283.9 ft. AMH - Downstream Manhole, Survey Ends - 3:40AM

Observation photos (3)

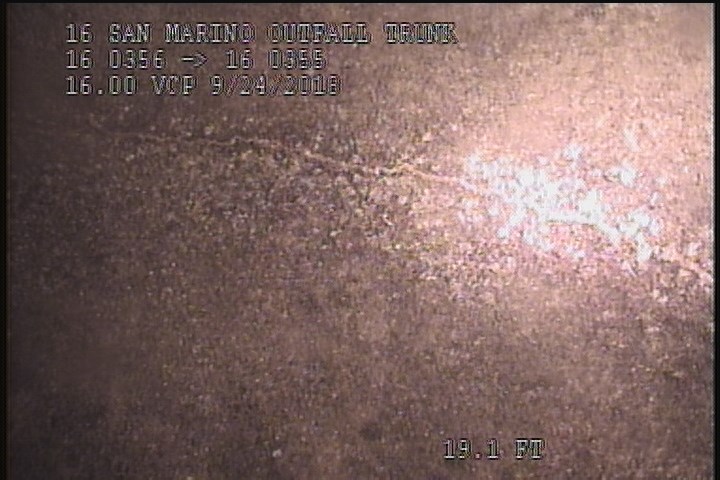

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

    19.1 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

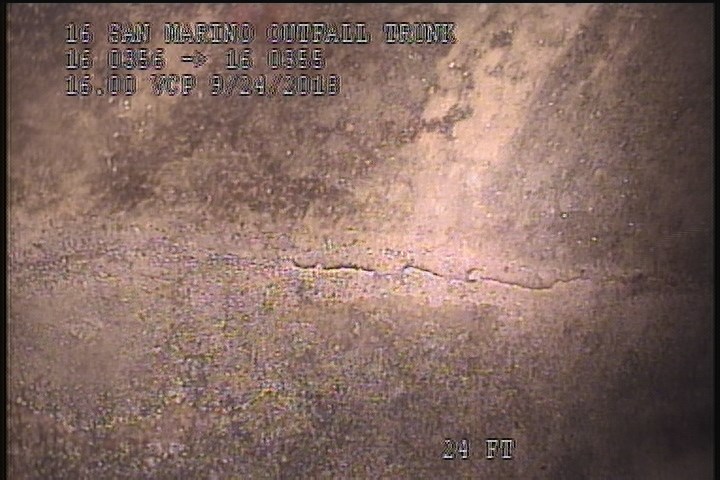

  • Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - SL

    24 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - SL

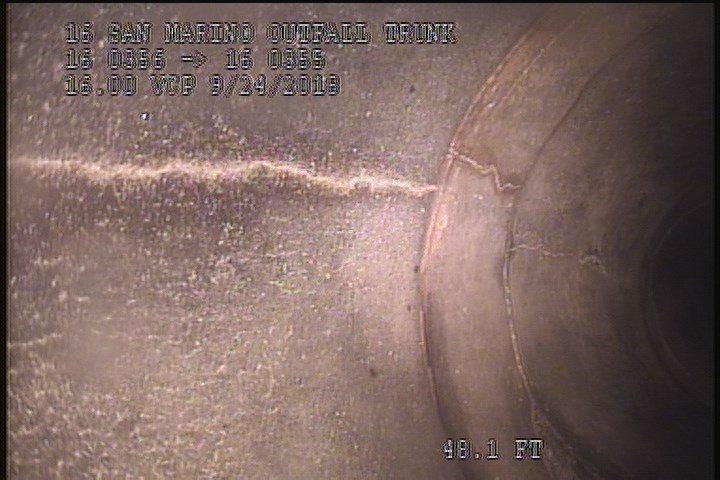

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    48.1 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

All inspections of P13407Work order 0729304

Observations (40)

DistanceCodeObservation
21.6FCSLIGHT
283.9AMH3:40AM
54.9FCSLIGHT AT JOINTS
54.9FLHAIRLINE AT JOINTS
0MGOMH CONN ACTIVE 6:00
44.2FCSL
24FLSL
75.8DSZROCK
48.1FLH
30FCH
147.7TFOpen
49.7FCSL
8.9FCSLIGHT
47.3FCSL
52.4FCH
247.3TFCCapped
150.2TFCapped
45.6TFOpen
54.8FCHAIRLINE AT JOINTS
26.5FCH
49.7FCSL
283.6FC50% SLIGHT AT JOINTS
36.5FCSL
0MWL—
27FLSL
47.3FCSL
19.1FLHAIRLINE
0MWM—
249.8TFActive
34FCH
30FLH
283.6FL15% SLIGHT AT JOINTS
48.1TFOpen
54.9FLSLIGHT AT JOINTS
0AMH2:55AM
24FCSL
283.6FL15% SLIGHT AT JOINTS
26.5FCSL
283.6FC50% HAIRLINE AT JOINTS
52.4FLH

Properties (4)

custom_field_three
SLIGHT FRACTURE JOINT TO JOINT
custom_field_two
2
customer
LACSD
datetime
2018-09-24T00:32:08-07:00
