Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 24, 2018, 07:28 AM

  • 16 0359_16 0358_9242018_004455.mp4

Date
09/24/2018
W/O
0729304
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00665
PipeID
P13410
Time
12:28 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0978
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20180921MDM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
14 in.
Upstream MH
16 0359
Downstream MH
16 0358
Dir. of Survey
Downstream
Length Surveyed
197.8 ft.
Total Length
197.8 ft.
Structural Index
2
Structural Quick
4132
Structural Rating
32
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
32
Pipe schematic from manhole 16 0359 to 16 0358
MH: 16 0359MH: 16 0358downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM9 ft. MGO - General Observation - 14" VCP10.1 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SLIGHT12.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL12.1 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL14.9 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL14.9 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL17.5 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL17.5 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL19.6 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL19.6 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL22.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL24.2 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS24.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS24.2 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS24.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS81.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active98.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active197.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% SLIGHT AT JOINTS197.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% HAIRLINE AT JOPINTS197.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% SLIGHT AT JOINTS197.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 50% HAIRLINE AT JOINTS197.8 ft. AMH - Downstream Manhole, Survey Ends - 1:10AM

Observation photos (2)

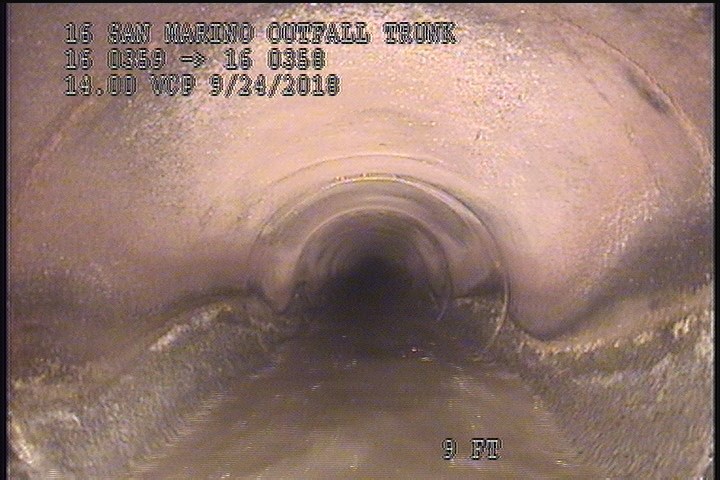

  • General Observation - 14" VCP

    9 ft. - General Observation - 14" VCP

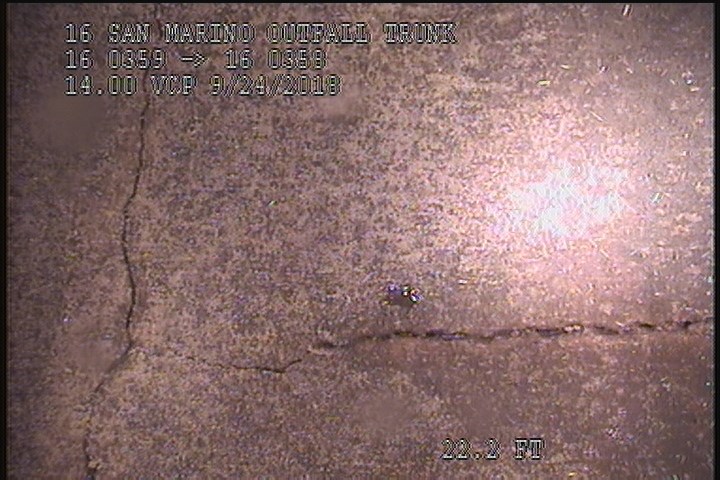

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL

    22.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL

All inspections of P13410Work order 0729304

Observations (25)

DistanceCodeObservation
81.5TFActive
0MWL—
197.3FL20% SLIGHT AT JOINTS
19.6FCSL
22.2FMSL
12.1FCSL
24.2FLSLIGHT AT JOINTS
0MWM—
10.1FCSLIGHT
17.5FCSL
197.3FL20% HAIRLINE AT JOPINTS
0AMH12:35AM
14.9FCSL
24.2FCSLIGHT AT JOINTS
197.3FC80% SLIGHT AT JOINTS
98.4TFActive
197.3FC50% HAIRLINE AT JOINTS
9MGO14" VCP
14.9FCSL
17.5FCSL
24.2FLHAIRLINE AT JOINTS
197.8AMH1:10AM
12.1FCSL
19.6FCSL
24.2FCHAIRLINE AT JOINTS

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2018-09-24T00:28:28-07:00
