Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 24, 2018, 06:17 PM

  • E 0109_E 0108_9242018_113153.mp4

Date
09/24/2018
W/O
0730604
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00032
PipeID
P11335
Time
11:17 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7816
Sewer Name
E JOINT OUTFALL E - UNIT 5
City
LOS ANGELES
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
20180920DF_JOINT_OUTFALL_E_UNIT_5
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
E 0108
Downstream MH
E 0109
Dir. of Survey
Upstream
Length Surveyed
2.2 ft.
Total Length
2.2 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole E 0108 to E 0109
MH: E 0108MH: E 0109upstream0 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 85% MAG0 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach0 ft. MSA - Survey Abandoned - 11:38 AM0 ft. MGP - General Photograph0 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES0 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)0 ft. MGP - General Photograph0.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES0.2 ft. MGP - General Photograph - AIRLINE2.2 ft. AMH - Downstream Manhole, Survey Begins - 11:30 AM2.2 ft. MWL - Water Level, 100 %of cross sectional area2.2 ft. MWM - Water Mark, 100 %of cross sectional area

Observation photos (7)

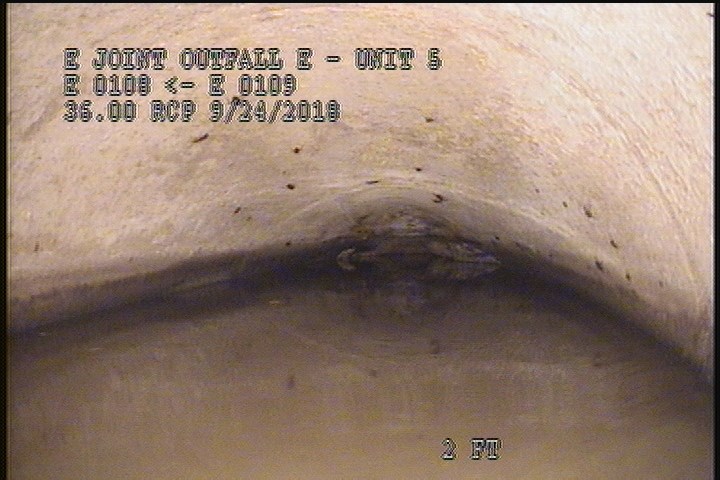

  • Water Mark, 100 %of cross sectional area

    0 ft. - Water Mark, 100 %of cross sectional area

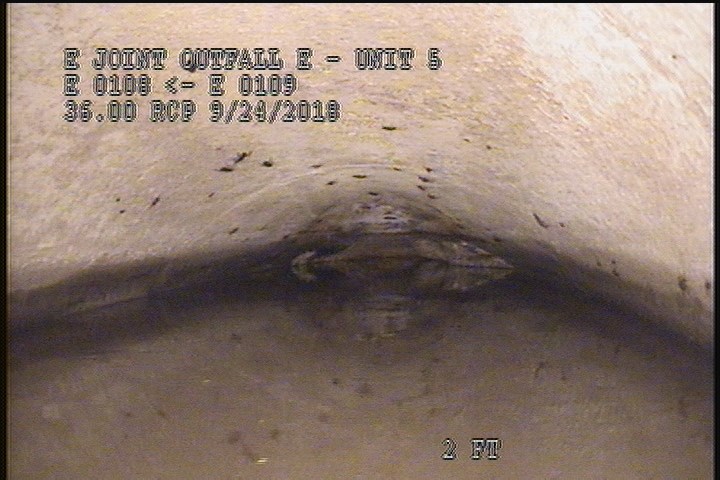

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

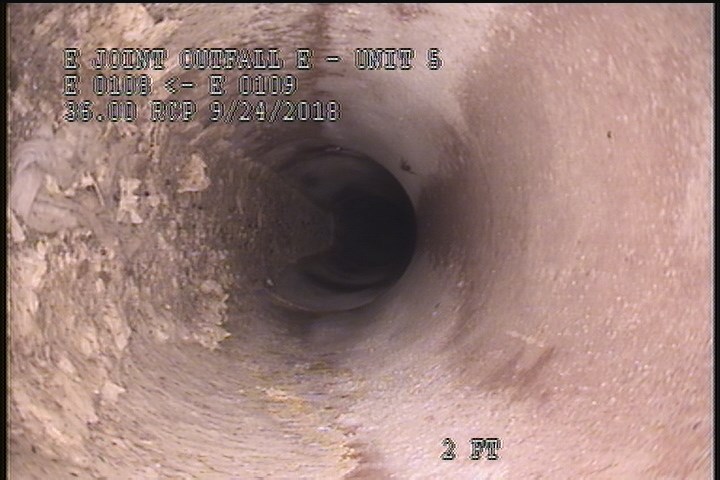

  • General Photograph - AIRLINE

    2 ft. - General Photograph - AIRLINE

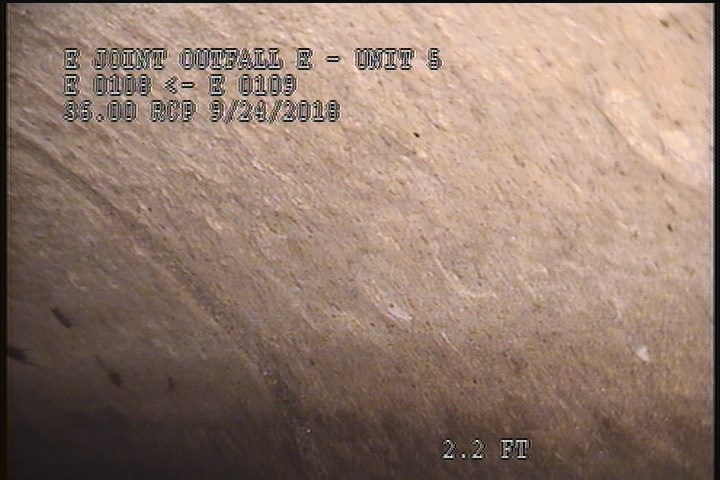

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 85% MAG

    2.2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 85% MAG

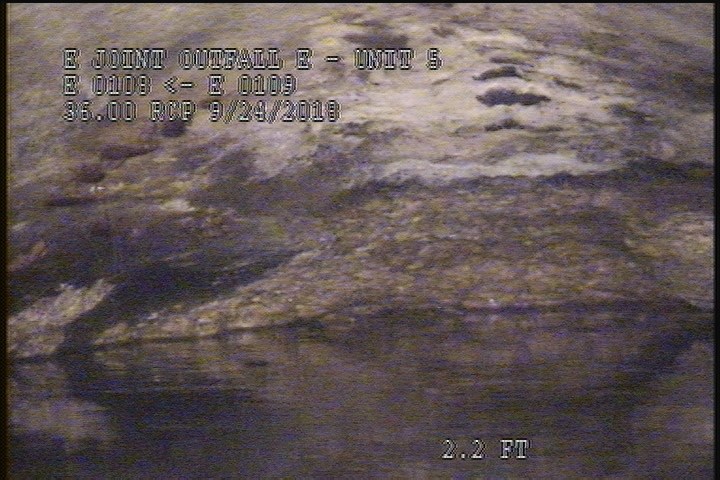

  • General Photograph

    2.2 ft. - General Photograph

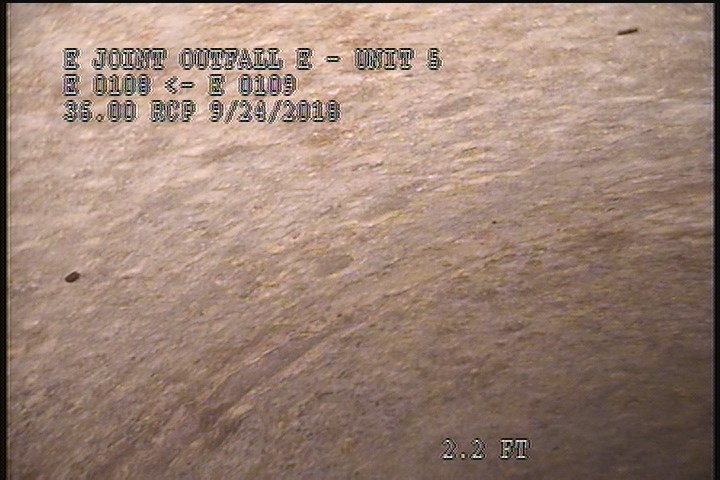

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

    2.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

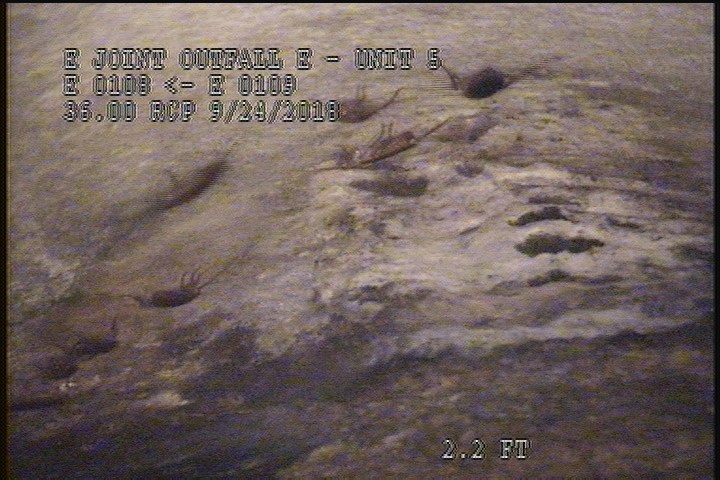

  • General Photograph

    2.2 ft. - General Photograph

All inspections of P11335Work order 0730604

Observations (12)

DistanceCodeObservation
2SSS—
0AMH11:30 AM
2.2SZ85% MAG
0MWL—
2.2MGOPeeling & Flaking Throughout The Reach
2.2MSA11:38 AM
2.2MGP—
0MWM—
2MGPAIRLINE
2.2SAV—
2.2MGOGREASE THROUGHOUT THE REACH (5%)
2.2MGP—

Properties (4)

additional_info
VIEW OF THE UPLEG FROM THE D/S SIPHON
custom_field_two
5
customer
LACSD
datetime
2018-09-24T11:17:02-07:00
