Wastewater/Activity/PacpInspection/1.0Sep 20, 2018, 09:08 PM

  • E 0111_E 0110_9202018_142447.mp4

Date
09/20/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00032
PipeID
P11337
Time
2:08 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7814
Sewer Name
E JOINT OUTFALL E - UNIT 5
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
20180920DF_JOINT_OUTFALL_E_UNIT_5
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
E 0111
Downstream MH
E 0110
Dir. of Survey
Downstream
Length Surveyed
2.2 ft.
Total Length
2.2 ft.
Structural Index
4
Structural Quick
5121
Structural Rating
7
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole E 0111 to E 0110
MH: E 0111MH: E 0110downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:15 PM0.1 ft. MWM - Water Mark, 25 %of cross sectional area0.1 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. LD - Alignment Down, 45 %2.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES2.1 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)2.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 45% MAG2.1 ft. MGP - General Photograph2.1 ft. MGO - General Observation - ROACHES2.2 ft. MSA - Survey Abandoned - 2:30 PM

Observation photos (5)

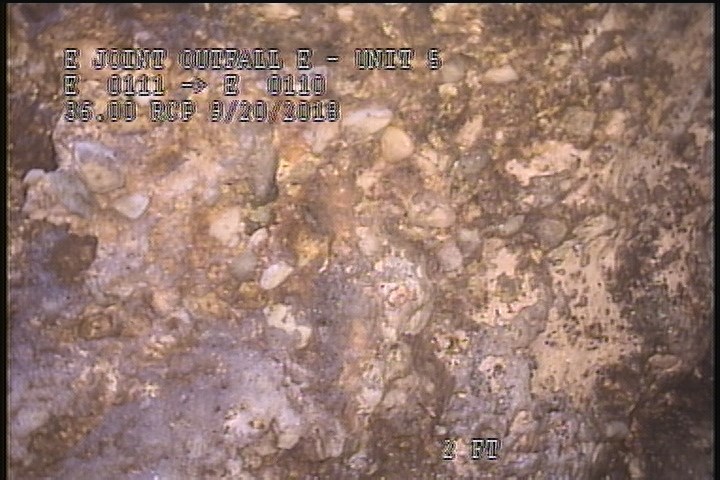

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

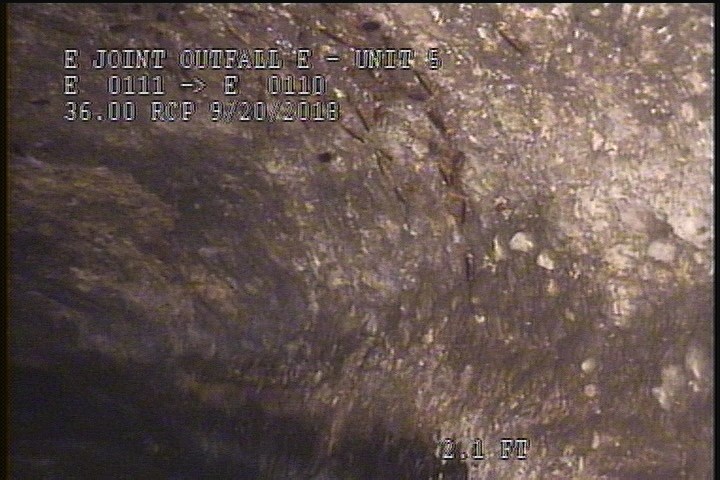

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

    2.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

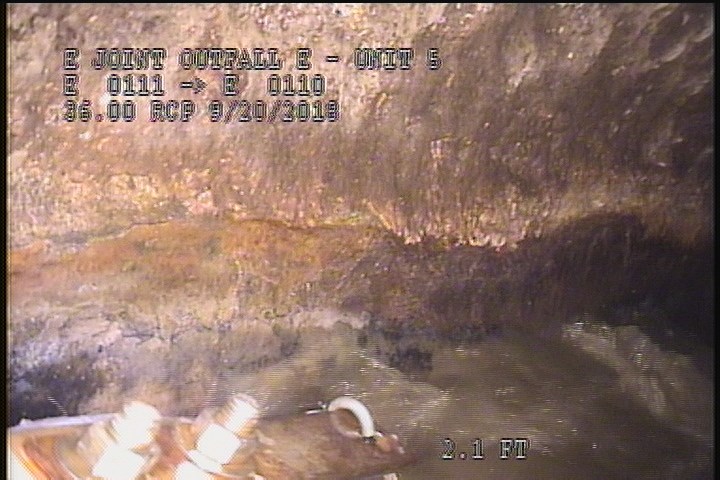

  • General Observation - GREASE THROUGHOUT THE REACH (5%)

    2.1 ft. - General Observation - GREASE THROUGHOUT THE REACH (5%)

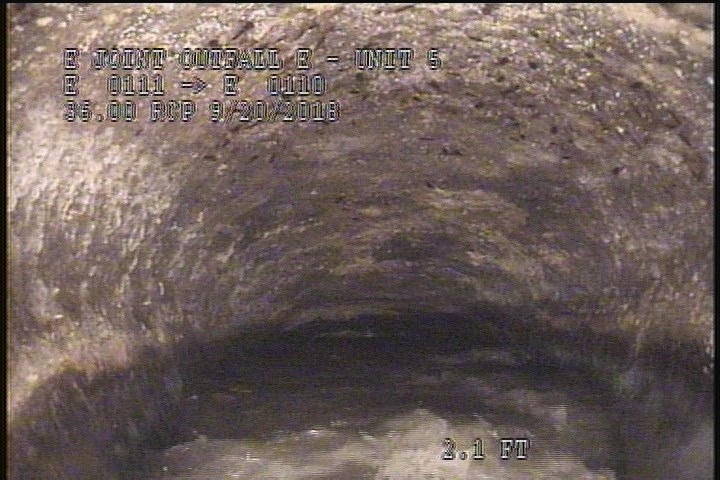

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 45% MAG

    2.1 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 45% MAG

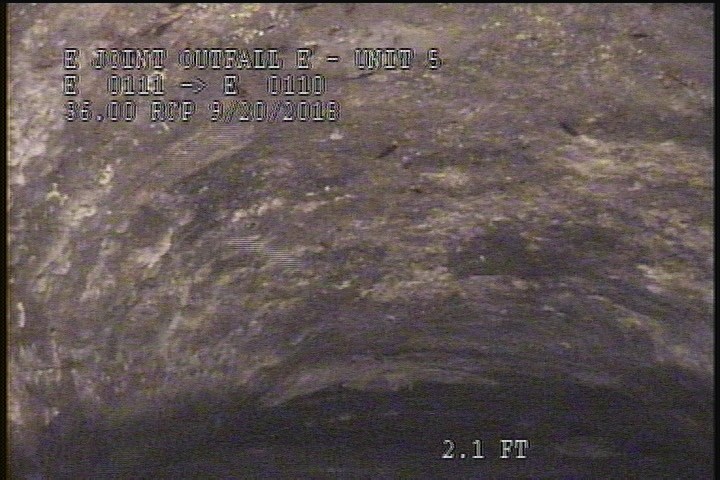

  • General Photograph

    2.1 ft. - General Photograph

All inspections of P11337Work order PENDING

Observations (11)

DistanceCodeObservation
0.1MWM—
2SSS—
2.1SRV—
2.1MGOGREASE THROUGHOUT THE REACH (5%)
2.1SZ45% MAG
2.2MSA2:30 PM
2LD—
0.1MWL—
0AMH2:15 PM
2.1MGP—
2.1MGOROACHES

Properties (5)

additional_info
VIEW OF THE DOWNLEG FROM THE U/S SIPHON
custom_field_two
5
customer
LACSD
datetime
2018-09-20T14:08:08-07:00
year_laid
19870402
