Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 12, 2017, 07:40 AM

  • 15 0606_15 0605A_12102017_004101.mp4

Date
10/12/2017
W/O
663065
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00601
PipeID
P26432
Time
12:40 AM
Certificate
07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4828
Sewer Name
15 DOUBLE AVENUE TRUNK
City
TEMPLE CITY, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
WO_663065_TV15183_OCT2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0605A
Downstream MH
15 0606
Dir. of Survey
Upstream
Length Surveyed
200.8 ft.
Total Length
200.8 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 15 0605A to 15 0606
MH: 15 0605AMH: 15 0606upstream0 ft. AMH - Upstream Manhole, Survey Ends - 15 06060 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK33.7 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"51.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"132.6 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"138.5 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"177.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES189 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES198.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES200.8 ft. AMH - Downstream Manhole, Survey Begins - 15 0605A200.8 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK200.8 ft. MWM - Water Mark, 20 %of cross sectional area200.8 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (3)

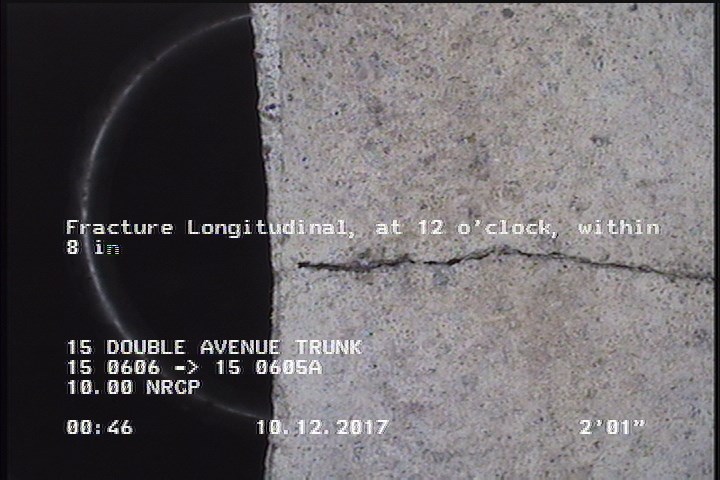

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    2.1 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

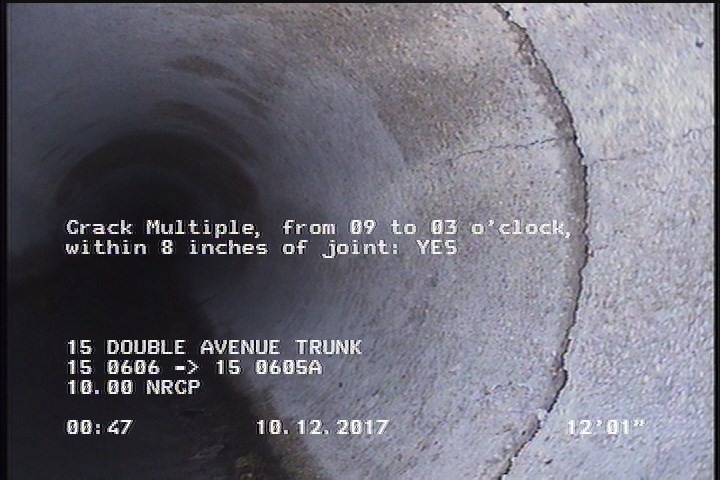

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    11.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

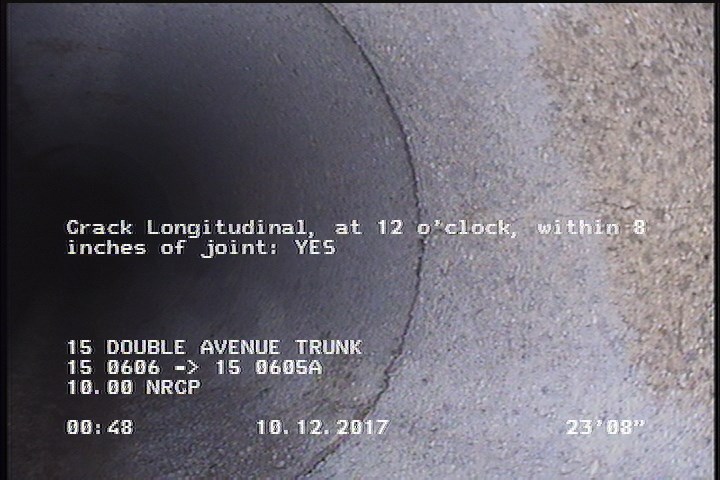

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    23.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P26432Work order 663065

Observations (13)

DistanceCodeObservation
149.2TF—
2.1FL—
0AMH15 0605A
200.8AMH15 0606
167.1TFC—
0MGOCONNECTION AT MH 9 O'CLOCK
23.7CL—
11.8CM—
0MWM—
62.3TFC—
68.2TFC—
0MWL—
200.8MGOCONNECTION AT MH 3 O'CLOCK

Properties (4)

additional_info
SC353079
custom_field_two
4
customer
LACSD
datetime
2017-10-12T00:40:47-07:00
