Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 30, 2017, 08:31 AM

  • 02 1759A_02 1759 _30112017_003125.mp4

Date
11/30/2017
W/O
674573
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00254
PipeID
P04106
Time
12:31 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5055
Sewer Name
02 DOWNEY-BELLFLOWER EXTENSION TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
15
Purpose
Routine Assessment
Project
WO_674573_TV02052_DEC2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
02 1759A
Downstream MH
02 1759
Dir. of Survey
Downstream
Length Surveyed
201.9 ft.
Total Length
201.9 ft.
Structural Index
3
Structural Quick
3E13
Structural Rating
93
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
94
Pipe schematic from manhole 02 1759A to 02 1759
MH: 02 1759AMH: 02 1759downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 1759A0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area6.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"6.1 ft. CM - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES17.8 ft. CC - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES39.1 ft. CC - Crack Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES49.8 ft. CC - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES57 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start85.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"129.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"187 ft. RFJ - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YES201.9 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK201.9 ft. AMH - Downstream Manhole, Survey Ends - 02 1759201.9 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH201.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

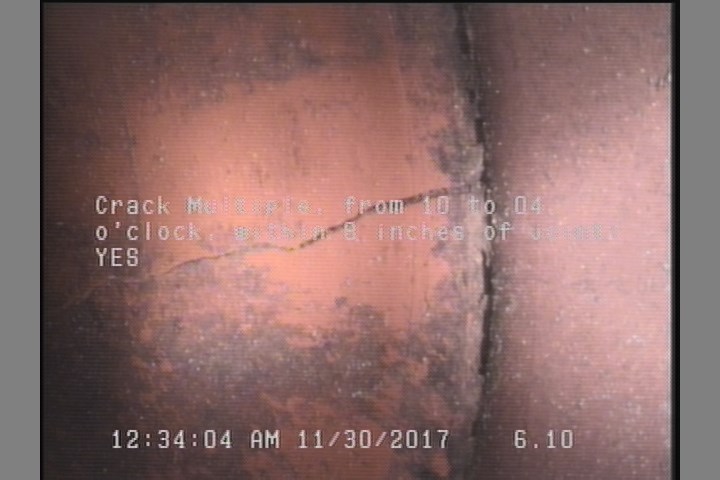

  • Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

    6.1 ft. - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

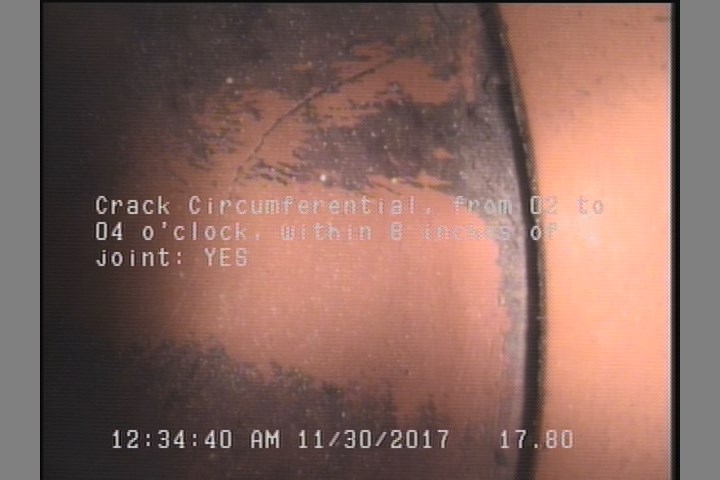

  • Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

    17.8 ft. - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

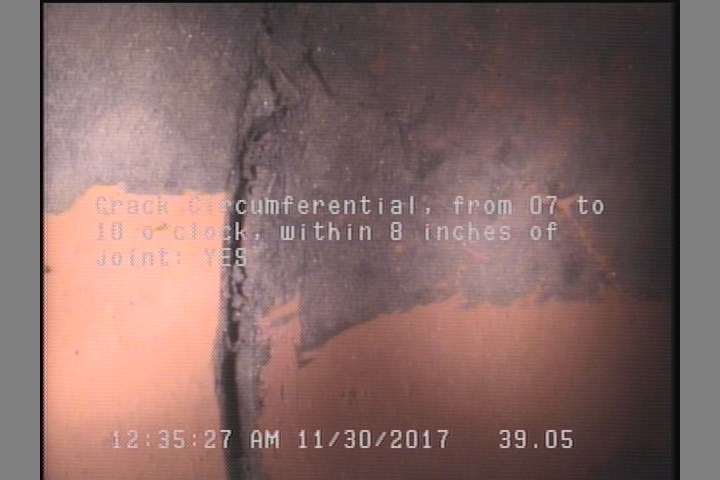

  • Crack Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES

    39.1 ft. - Crack Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES

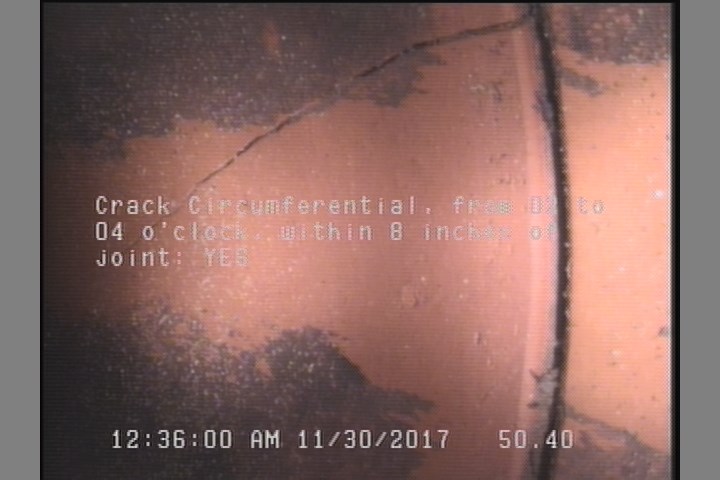

  • Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

    49.8 ft. - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

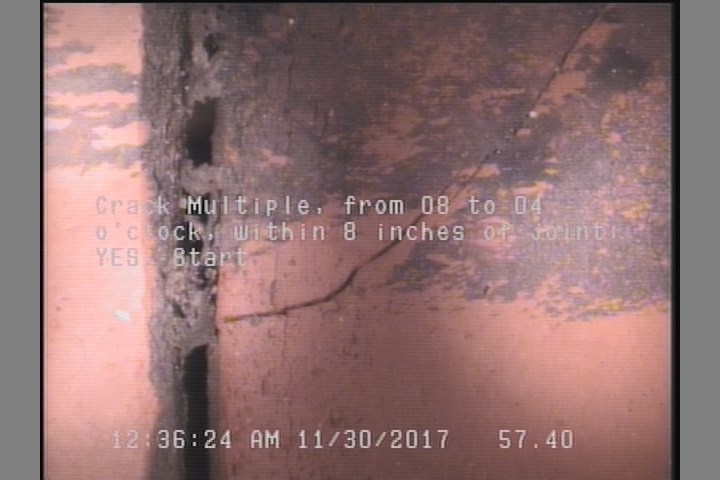

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    57 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P04106Work order 674573

Observations (17)

DistanceCodeObservation
0AMH02 1759A
49.8CC—
201.9MGOCONNECTION AT MH 9 O'CLOCK
201.9AMH02 1759
0MWM—
201.9MGOCAPPED LATERAL 3 O'CLOCK @ MH
187RFJ—
129.6TF—
0MGOCONNECTION AT MH 3 O'CLOCK
6.1TF—
201.9CM—
85.4TF—
17.8CC—
0MWL—
57CM—
39.1CC—
6.1CM—

Properties (4)

additional_info
SC346284
custom_field_two
3
customer
LACSD
datetime
2017-11-30T00:31:18-08:00
