Wastewater/Activity/PacpInspection/1.0Dec 27, 2016, 11:48 AM
03 0351_03 0350 _12272016_045725.mp4
- Date
- 12/27/2016
- W/O
- 613342
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00369
- PipeID
- P04925
- Time
- 3:48 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3900
- Sewer Name
- 03 MARINA TRUNK, SECTION 1A
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_613342_TV03017_JAN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 03 0351
- Downstream MH
- 03 0350
- Dir. of Survey
- Downstream
- Length Surveyed
- 329.3 ft.
- Total Length
- 329.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 413L
- O&M Rating
- 330
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 330
Observation photos (1)

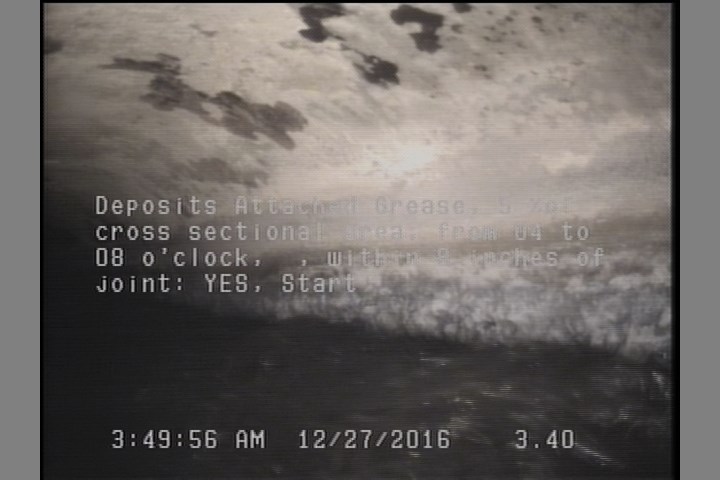

3.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 3.5 | OBZ | DEBRIS NOT VISIBLE |
| 0 | AMH | 03 0351 |
| 3.5 | MGO | MAGNESIUM H.O. START |
| 0 | MWL | — |
| 329.3 | MSA | SEVERE DEBRIS 30% |
| 0 | MWM | — |
| 329.3 | DNZ | TRACTOR FLIP OVER DO TO DEBRIS |
| 329.3 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK ACTIVE |
| 312.5 | LR | — |
| 329.3 | MGO | MAGNEZIUM H.O. FINISH |
| 329.3 | OBZ | DEBRIS NOT VISIBLE |
| 3.4 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
Properties (4)
- additional_info
- SC305241
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-12-27T03:48:09-08:00
