Wastewater/Activity/PacpInspection/1.0Mar 31, 2016, 06:06 AM
F 0173_F 0172_20160330_233846.mp4
- Date
- 03/30/2016
- W/O
- 563421
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00044
- PipeID
- P10306
- Time
- 11:06 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3241
- Sewer Name
- F JOINT OUTFALL F - UNIT 7B
- City
- NORWALK, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_563421_TV18071_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- F 0173
- Downstream MH
- F 0172
- Dir. of Survey
- Downstream
- Length Surveyed
- 302.5 ft.
- Total Length
- 302.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 1
Observation photos (2)

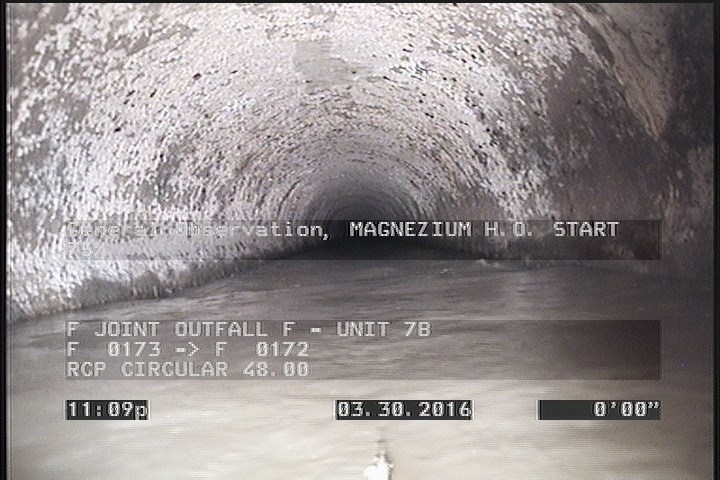

2 ft. - General Observation - MAGNEZIUM H.O. START 75%

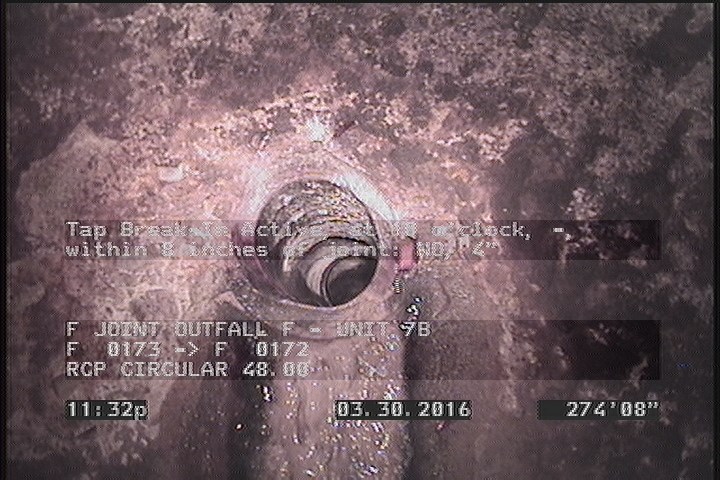

274.6 ft. - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | F 0173 |
| 274.6 | TBA | — |
| 2 | MGO | MAGNEZIUM H.O. START 75% |
| 289.6 | VC | — |
| 0 | MWL | — |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 302.5 | AMH | F 0172 |
| 50.8 | TBA | — |
| 194.7 | TBA | — |
| 116.4 | TBA | — |
Properties (4)
- additional_info
- SC305332
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-30T23:06:43-07:00
