Wastewater/Activity/PacpInspection/1.0Dec 26, 2017, 06:39 PM
Section#2_03 0475_03 0474__12262017__G6901.mp4
- Date
- 12/26/2017
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00401
- PipeID
- P05195
- Time
- 10:39 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6901
- Sewer Name
- 03 PUMP DISTRICT #5 CONNECTION TRUNK
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- 20171226DF_PUMP_DISTRICT_5_CONNECTION_TR
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 03 0474
- Downstream MH
- 03 0475
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

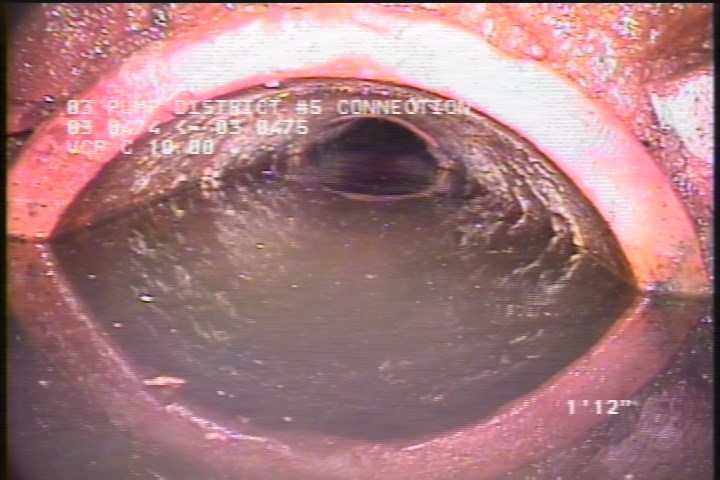

0 ft. - Water Level, 85 %of cross sectional area

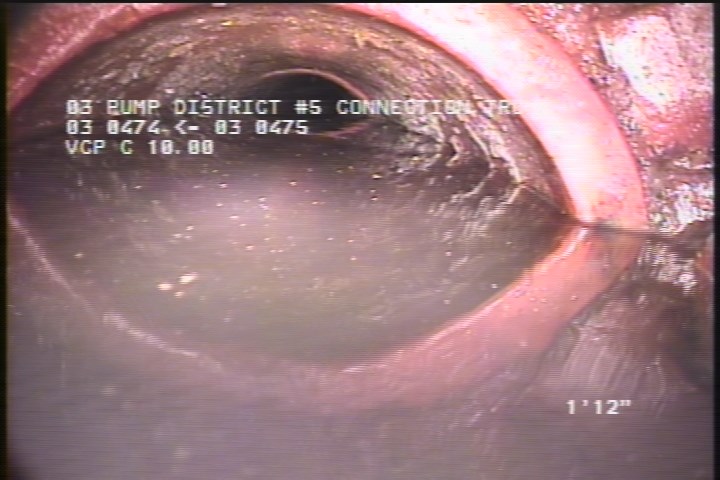

0 ft. - Water Mark, 90 %of cross sectional area

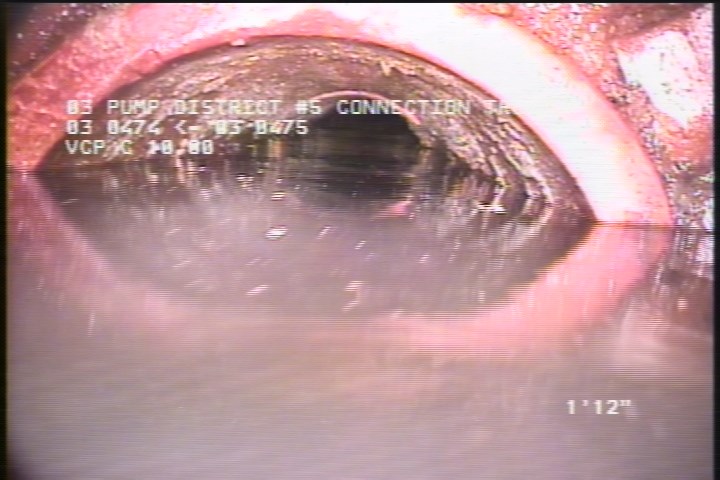

2 ft. - Survey Abandoned - HIGH WATER
Observations (4)
| Distance | Code | Observation |
|---|---|---|
| 2 | MSA | HIGH WATER |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 10:42 AM |
Properties (4)
- additional_info
- GONNA HANG CAMERA AND ZOOM U/S DUE TO A FULL PIPE
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-12-26T10:39:59-08:00
