Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 19, 2017, 05:31 PM

  • Section#1_05 0015_05 0014__12192017__G6887.mp4

Date
12/19/2017
W/O
0674047
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00431
PipeID
P05300
Time
9:31 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6887
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
TORRANCE
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
27
Purpose
Routine Assessment
Project
20171219DF_DISTRICT_5_MAIN_TRUNK
Material
RCP-CTL
Shape
Circular
Height
54 in.
Upstream MH
05 0015
Downstream MH
05 0014
Dir. of Survey
Downstream
Length Surveyed
359.3 ft.
Total Length
359.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 05 0015 to 05 0014
MH: 05 0015MH: 05 0014downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:48 AM0.1 ft. MWL - Water Level, 35 %of cross sectional area0.1 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG2 ft. MGO - General Observation - CONN @ MH 4 O'CLOCK8.2 ft. MGP - General Photograph102.1 ft. MGP - General Photograph204.4 ft. MGP - General Photograph347.7 ft. MGP - General Photograph355.4 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 85% MAG359.3 ft. AMH - Downstream Manhole, Survey Ends - 10:44 AM359.3 ft. MGO - General Observation - ACTIVE CONN @ MH 3 O'CLOCK

Observation photos (4)

  • General Photograph

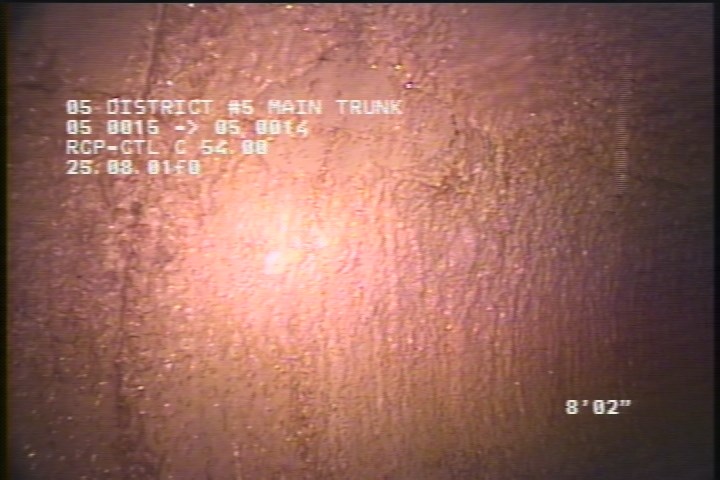

    8.2 ft. - General Photograph

  • General Photograph

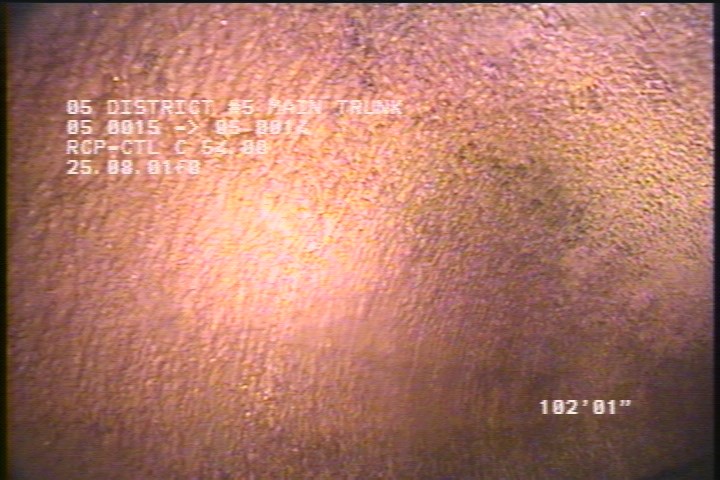

    102.1 ft. - General Photograph

  • General Photograph

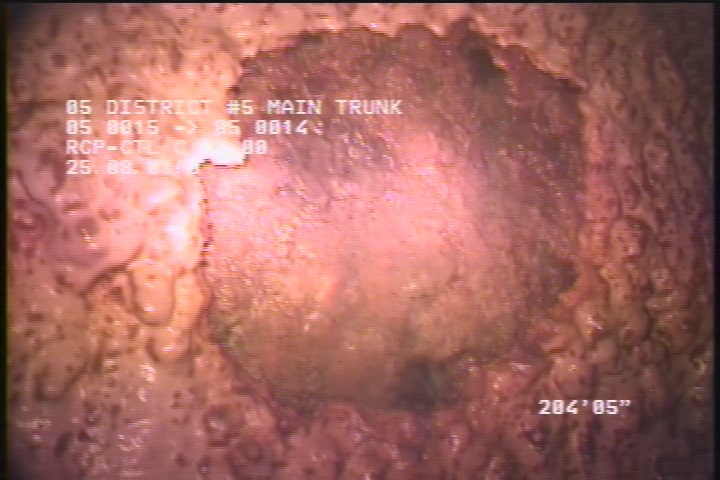

    204.4 ft. - General Photograph

  • General Photograph

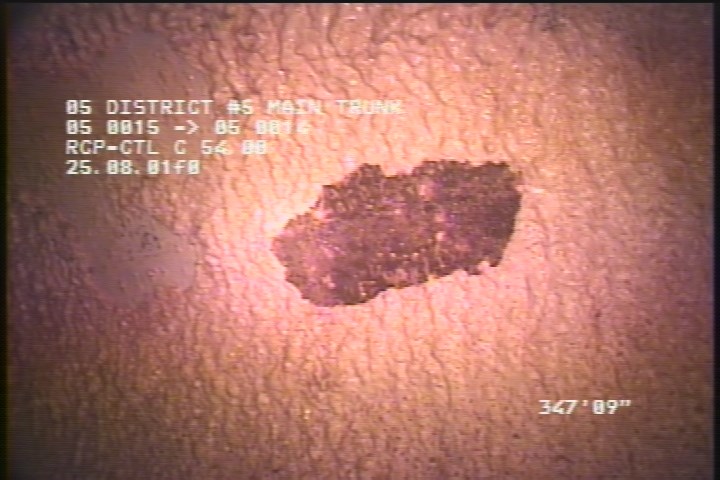

    347.7 ft. - General Photograph

All inspections of P05300Work order 0674047

Observations (12)

DistanceCodeObservation
355.4SZ85% MAG
0.1MWL—
359.3AMH10:44 AM
102.1MGP—
359.3MGOACTIVE CONN @ MH 3 O'CLOCK
2SZ85% MAG
0AMH9:48 AM
8.2MGP—
347.7MGP—
204.4MGP—
0.1MWM—
2MGOCONN @ MH 4 O'CLOCK

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2017-12-19T09:31:14-08:00
