Wastewater/Activity/PacpInspection/1.0Sep 15, 2017, 06:41 AM
32 0131A_32 0131_14092017_234843.mp4
- Date
- 09/14/2017
- W/O
- 658035
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00887
- PipeID
- P19878
- Time
- 11:41 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4875
- Sewer Name
- 32 DISTRICT #32 MAIN TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_658035_TV32048_SEP2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 0131A
- Downstream MH
- 32 0131
- Dir. of Survey
- Downstream
- Length Surveyed
- 203.6 ft.
- Total Length
- 203.7 ft.
- Structural Index
- 3
- Structural Quick
- 3G2G
- Structural Rating
- 200
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 200
Observation photos (2)

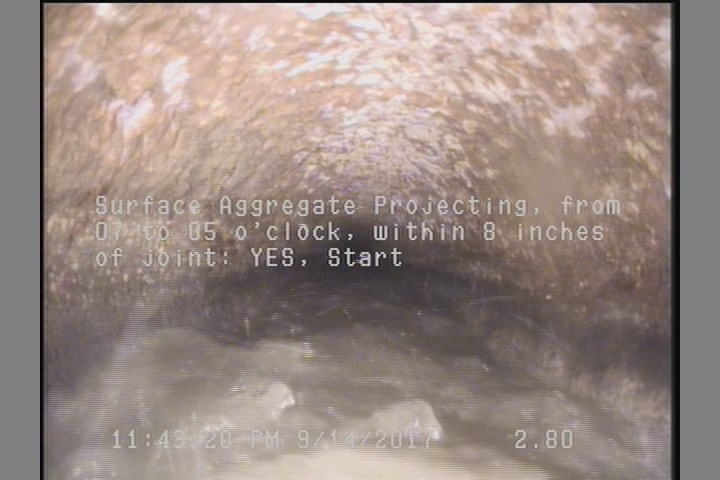

2.8 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

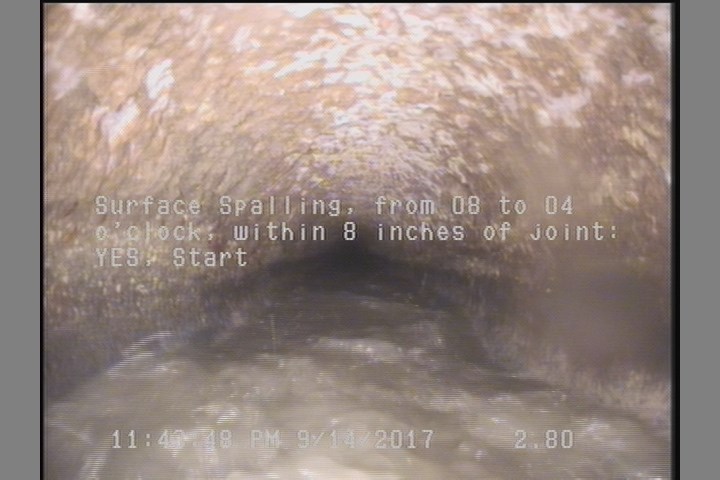

2.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 202.5 | SSS | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 202.5 | SAP | — |
| 2.8 | SAP | — |
| 203.7 | AMH | 32 0131 |
| 2.8 | SSS | — |
| 0 | AMH | 32 0131A |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC345934
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-09-14T23:41:12-07:00
