Wastewater/Activity/PacpInspection/1.0Sep 20, 2017, 08:52 AM
32 0109_32 0261 _20092017_020030.mp4
- Date
- 09/20/2017
- W/O
- 658035
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00887
- PipeID
- P23687
- Time
- 1:52 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4882
- Sewer Name
- 32 DISTRICT #32 MAIN TRUNK
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_658035_TV32048_SEP2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 32 0109
- Downstream MH
- 32 0261
- Dir. of Survey
- Downstream
- Length Surveyed
- 162.6 ft.
- Total Length
- 162.7 ft.
- Structural Index
- 3
- Structural Quick
- 513E
- Structural Rating
- 159
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 159
Observation photos (3)

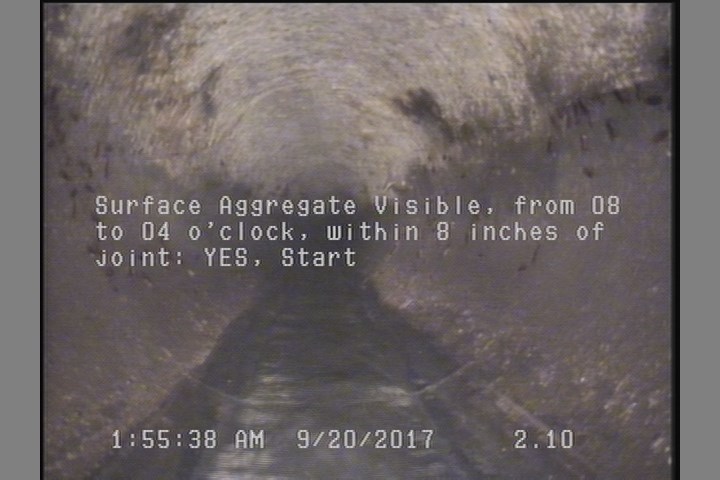

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

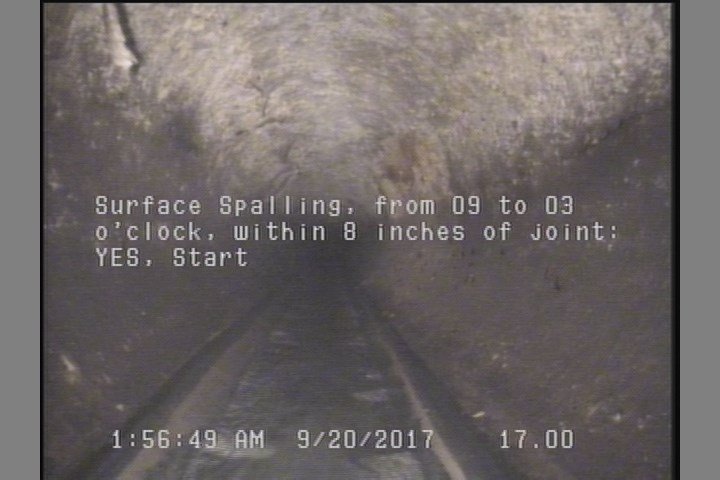

17 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

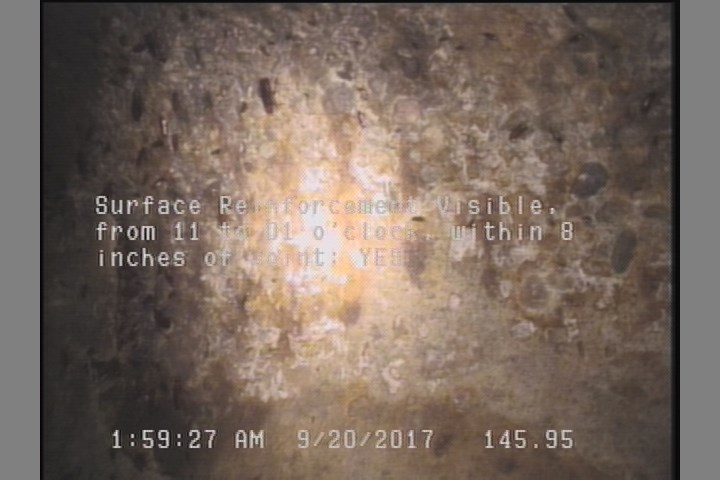

146 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SAV | — |
| 162.7 | SAV | — |
| 162.7 | AMH | 32 0261 |
| 0 | MWL | — |
| 0 | AMH | 32 0109 |
| 17 | SSS | — |
| 146 | SRV | — |
| 0 | MWM | — |
| 162.7 | SSS | — |
Properties (4)
- additional_info
- SC345942
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-09-20T01:52:39-07:00
