Wastewater/Activity/PacpInspection/1.0Sep 21, 2017, 09:42 AM
16 0278_16 0277_09212017_024255.mp4
- Date
- 09/21/2017
- W/O
- 657821
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00654
- PipeID
- P13326
- Time
- 2:42 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4981
- Sewer Name
- 16 CHAPEL AVENUE TRUNK, SECTION 3
- City
- PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_657821_TV16076_SEP2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0278
- Downstream MH
- 16 0277
- Dir. of Survey
- Downstream
- Length Surveyed
- 328.9 ft.
- Total Length
- 328.9 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

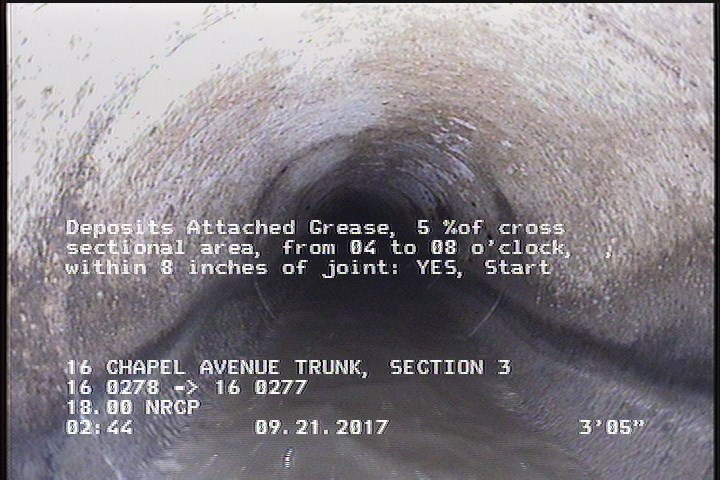

3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

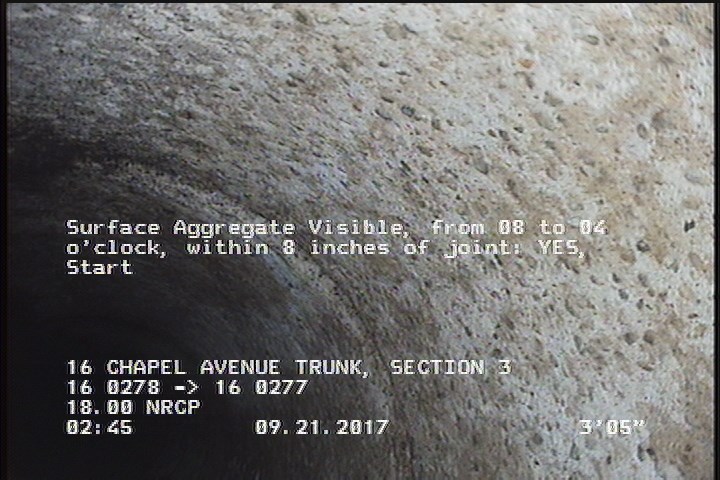

3.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

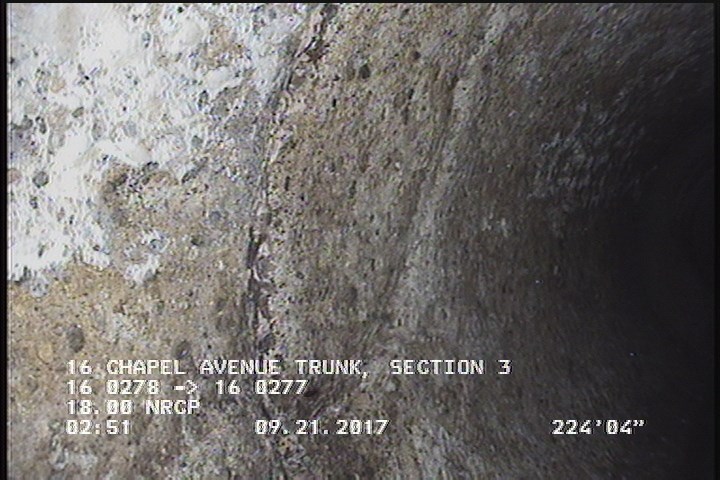

224.2 ft. - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 224.2 | CS | — |
| 0 | MWM | — |
| 3.5 | DAGS | — |
| 159.6 | TF | — |
| 0 | AMH | 16 0278 |
| 328.9 | SAV | — |
| 328.9 | AMH | 16 0277 |
| 0 | MWL | — |
| 3.5 | SAV | — |
| 328.9 | DAGS | — |
Properties (4)
- additional_info
- SC345973
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-21T02:42:03-07:00
