Wastewater/Activity/PacpInspection/1.0Nov 29, 2017, 07:27 AM
05 1824_05 1823 _28112017_232746.mp4
- Date
- 11/28/2017
- W/O
- 668814
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00467
- PipeID
- P07047
- Time
- 11:27 PM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4848
- Sewer Name
- 05 JANET LANE CONNECTION TRUNK
- City
- PALO VERDES ESTATES, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_668814_TV05260_NOV2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 05 1824
- Downstream MH
- 05 1823
- Dir. of Survey
- Downstream
- Length Surveyed
- 41.3 ft.
- Total Length
- 41.3 ft.
- Structural Index
- 4
- Structural Quick
- 4200
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

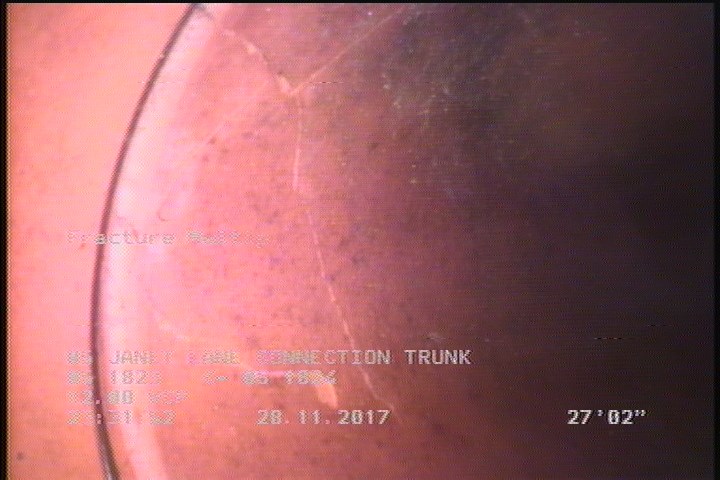

27.1 ft. - Fracture Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

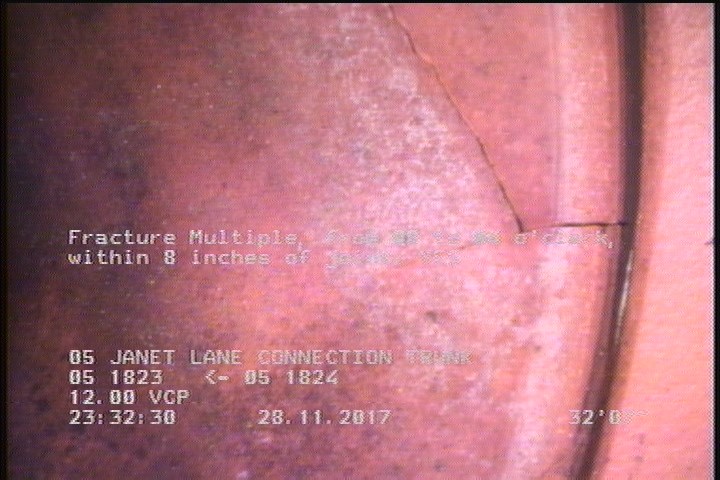

32.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 1824 |
| 41.3 | AMH | 05 1823 |
| 0 | MWM | — |
| 0 | MWL | — |
| 32.6 | FM | — |
| 27.1 | FM | — |
Properties (4)
- additional_info
- SC349672
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-11-28T23:27:19-08:00
