Wastewater/Activity/PacpInspection/1.0Nov 22, 2017, 10:10 AM
H 1411_H 1410 _22112017_021059.mp4
- Date
- 11/22/2017
- W/O
- 668681
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01204
- PipeID
- P20196
- Time
- 2:10 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5045
- Sewer Name
- H JOINT OUTFALL H - UNIT 8M
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_668681_TV22122_NOV2017
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- H 1410
- Downstream MH
- H 1411
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

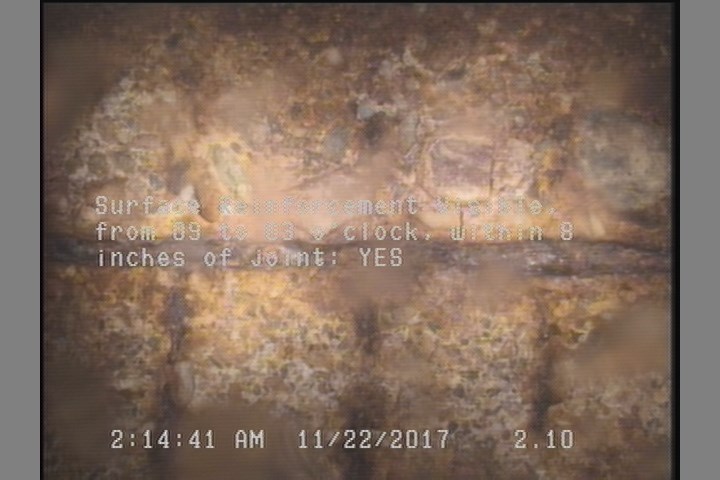

2.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

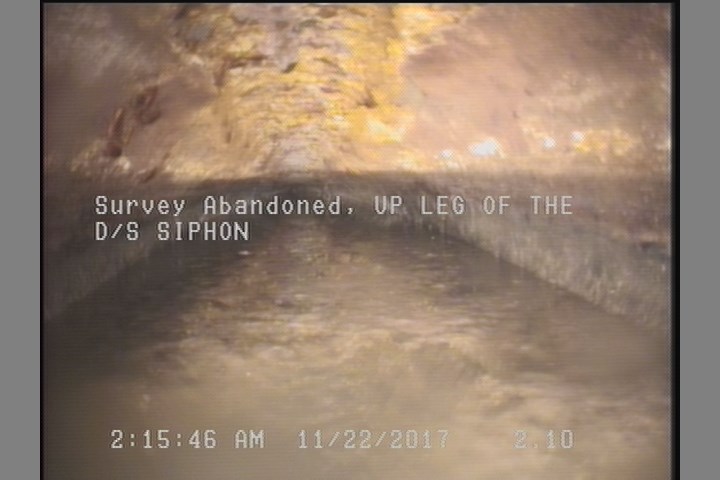

2.1 ft. - Survey Abandoned - UP LEG OF THE D/S SIPHON
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SRV | — |
| 0 | MWM | — |
| 2.1 | MSA | UP LEG OF THE D/S SIPHON |
| 0 | AMH | H 1410 NW |
| 2.1 | SAP | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC346274
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-11-22T02:10:26-08:00
