Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 7, 2017, 09:13 AM

  • 05 1149_05 1148 _11072017_011414.mp4

Date
11/07/2017
W/O
668648
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00436
PipeID
P06388
Time
1:13 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5211
Sewer Name
05 EAST ROSECRANS AVENUE TRUNK, SECTION 1
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
18
Purpose
Routine Assessment
Project
WO_668648_TV05270_NOV2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 1148
Downstream MH
05 1149
Dir. of Survey
Upstream
Length Surveyed
310 ft.
Total Length
310 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
186
O&M Index
2
O&M Quick
4131
O&M Rating
131
Overall Index
3
Overall Quick
—
Overall Rating
317
Pipe schematic from manhole 05 1148 to 05 1149
MH: 05 1148MH: 05 1149upstream0 ft. AMH - Upstream Manhole, Survey Ends - 05 11490 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 12, 2, 3 AND 9 O'CLOCK0 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - COCKROACHES IN MANHOLE5.1 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS75.2 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"136 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"208.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"236.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"308 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start308 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start310 ft. MWL - Water Level, 25 %of cross sectional area310 ft. AMH - Downstream Manhole, Survey Begins - 05 1148310 ft. MWM - Water Mark, 50 %of cross sectional area

Observation photos (3)

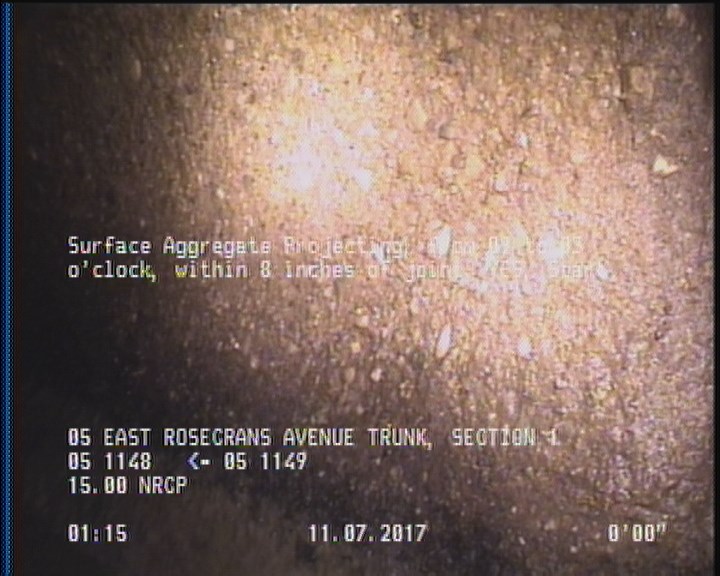

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

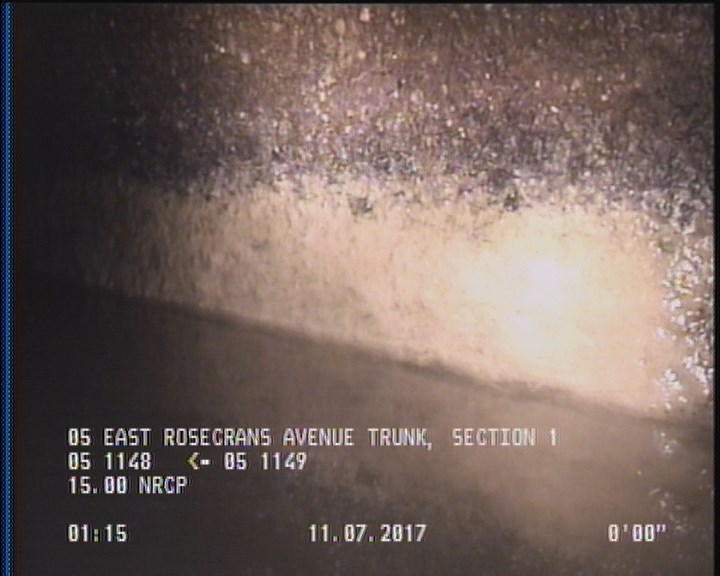

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

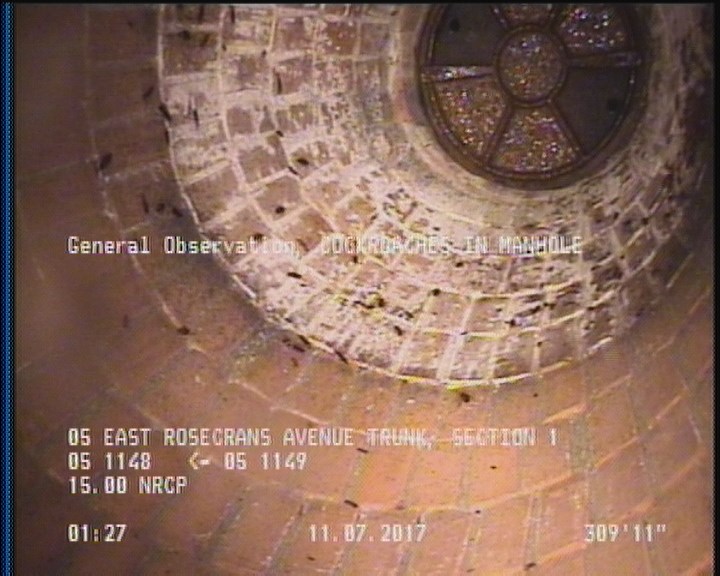

  • General Observation - COCKROACHES IN MANHOLE

    310 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P06388Work order 668648

Observations (15)

DistanceCodeObservation
310AMH05 1149
310DAGS—
0MWL—
310MGOACTIVE CONNECTION AT MH 12, 2, 3 AND 9 O'CLOCK
174TF—
304.9DSZDEBRIS
0AMH05 1148
310SAP—
234.8TFC—
310MGOCOCKROACHES IN MANHOLE
2SAP—
2DAGS—
73.4TFC—
101.1TF—
0MWM—

Properties (4)

additional_info
SC346082
custom_field_two
4
customer
LACSD
datetime
2017-11-07T01:13:54-08:00
