Wastewater/Activity/PacpInspection/1.0Jan 24, 2017, 11:39 AM
F 0157_F 0156 _01242017_041343.mpg
- Date
- 01/24/2017
- W/O
- 613576
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00043
- PipeID
- P10291
- Time
- 3:39 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4089
- Sewer Name
- F JOINT OUTFALL F - UNIT 7A
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_613576_TV02202_JAN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 51 in.
- Width
- 51 in.
- Upstream MH
- F 0157
- Downstream MH
- F 0156
- Dir. of Survey
- Downstream
- Length Surveyed
- 447.6 ft.
- Total Length
- 447.7 ft.
- Structural Index
- 3
- Structural Quick
- 3Q00
- Structural Rating
- 264
- O&M Index
- 2
- O&M Quick
- 2Q00
- O&M Rating
- 176
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 440
Observation photos (2)

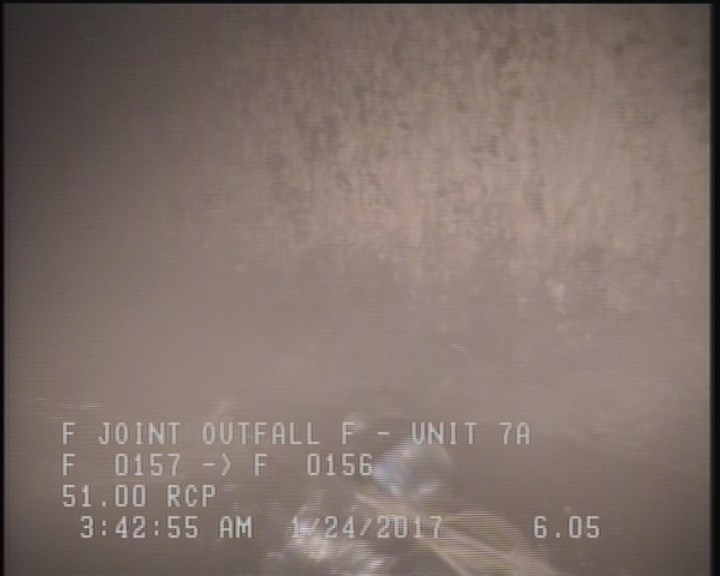

6.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

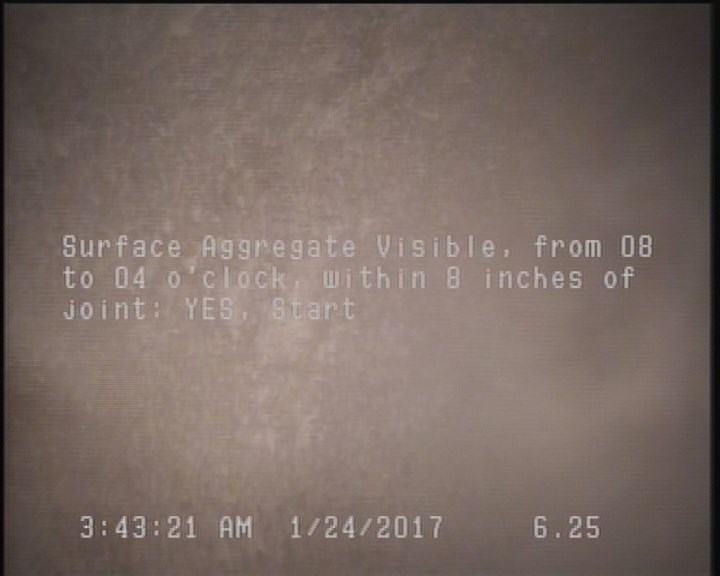

6.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 6.1 | DAGS | — |
| 447.6 | MGO | CONNECTION AT MH 9 O'CLOCK ACTIVE |
| 444.9 | MGO | MAGNEZIUM H.O. FINISH |
| 444.8 | SAV | — |
| 6.3 | MGO | MAGNESIUM H.O. START |
| 444.7 | DAGS | — |
| 447.7 | AMH | F 0156 |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | F 0157 |
| 6.3 | SAV | — |
Properties (4)
- additional_info
- SC318630
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-24T03:39:38-08:00
