Wastewater/Activity/PacpInspection/1.0Dec 28, 2016, 09:09 AM
05 1028_05 1027 _12282016_012052.mp4
- Date
- 12/28/2016
- W/O
- 613357
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00421
- PipeID
- P06262
- Time
- 1:09 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3950
- Sewer Name
- 05 AVIATION BOULEVARD TRUNK
- City
- HAWTHORNE, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_613357_TV05010_JAN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 1028
- Downstream MH
- 05 1027
- Dir. of Survey
- Downstream
- Length Surveyed
- 360 ft.
- Total Length
- 360 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 142
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 145
Observation photos (2)

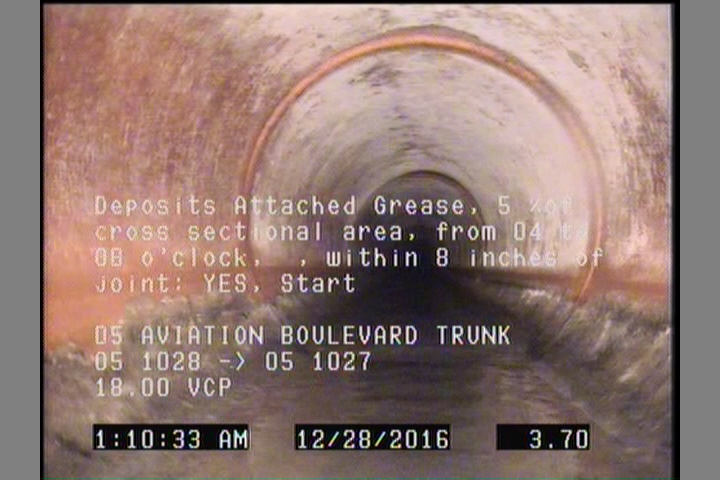

3.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

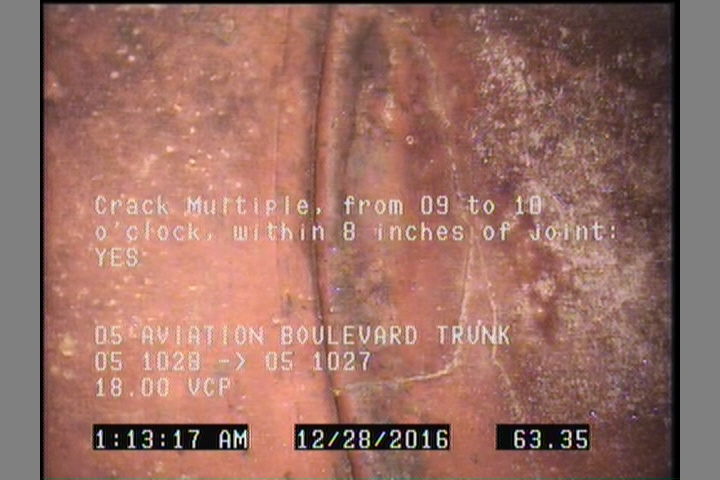

63.4 ft. - Crack Multiple, from 09 to 10 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 3.7 | DAGS | — |
| 0 | MWM | — |
| 356.7 | DAGS | — |
| 360 | AMH | 05 1027 |
| 0 | AMH | 05 1028 |
| 63.4 | CM | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC317698
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-28T01:09:00-08:00
