Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 30, 2016, 11:13 AM

  • 05 0999_05 0998 _12302016_032409.mp4

Date
12/30/2016
W/O
613357
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00421
PipeID
P06231
Time
3:13 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3953
Sewer Name
05 AVIATION BOULEVARD TRUNK
City
EL SEGUNDO, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
16
Purpose
Routine Assessment
Project
WO_613357_TV05010_JAN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 0998
Downstream MH
05 0999
Dir. of Survey
Upstream
Length Surveyed
333.4 ft.
Total Length
333.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2M00
O&M Rating
136
Overall Index
2
Overall Quick
—
Overall Rating
136
Pipe schematic from manhole 05 0998 to 05 0999
MH: 05 0998MH: 05 0999upstream0 ft. AMH - Upstream Manhole, Survey Ends - 05 09993.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Finish31.3 ft. TBC - Tap Break-In Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"108.9 ft. TBC - Tap Break-In Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"182.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"259.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"332.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start333.4 ft. MWL - Water Level, 10 %of cross sectional area333.4 ft. AMH - Downstream Manhole, Survey Begins - 05 0998333.4 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (1)

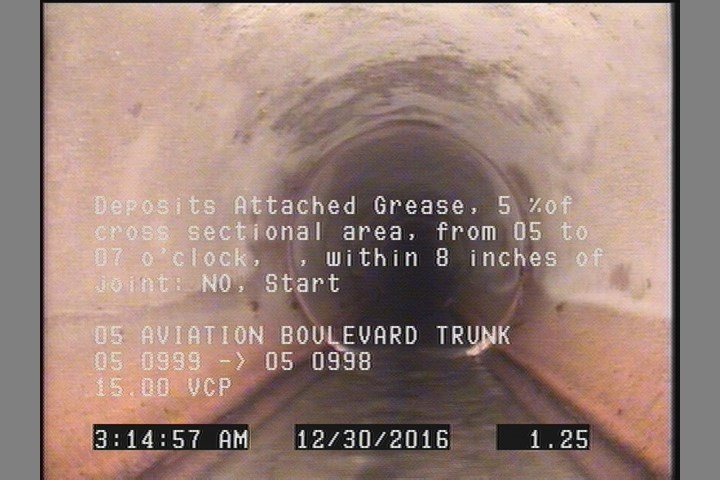

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start

    1.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start

All inspections of P06231Work order 613357

Observations (10)

DistanceCodeObservation
151.3TFC—
0MWL—
73.8TFC—
333.4AMH05 0999
1.3DAGS—
302.1TBC—
0AMH05 0998
0MWM—
329.8DAGS—
224.5TBC—

Properties (4)

additional_info
SC306466
custom_field_two
4
customer
LACSD
datetime
2016-12-30T03:13:00-08:00
