Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 5, 2017, 11:46 AM

  • 02 1704_02 1703A_01052017_034634.mp4

Date
01/05/2017
W/O
613349
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00289
PipeID
P18865
Time
3:46 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4050
Sewer Name
02 MONTEREY PARK EXTENSION TRUNK
City
MONTEREY PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
06
Purpose
Routine Assessment
Project
WO_613349_TV02103_JAN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1704
Downstream MH
02 1703A
Dir. of Survey
Downstream
Length Surveyed
128.4 ft.
Total Length
128.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2D00
O&M Rating
50
Overall Index
2
Overall Quick
—
Overall Rating
50
Pipe schematic from manhole 02 1704 to 02 1703A
MH: 02 1704MH: 02 1703Adownstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 02 17042 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start35.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"63.8 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"99.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"102.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"126.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish128.4 ft. AMH - Downstream Manhole, Survey Ends - 02 1703A128.4 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK128.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

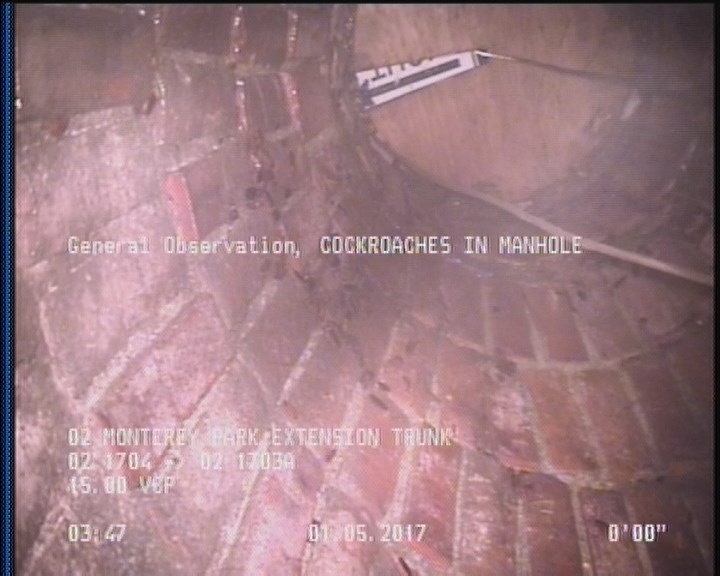

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

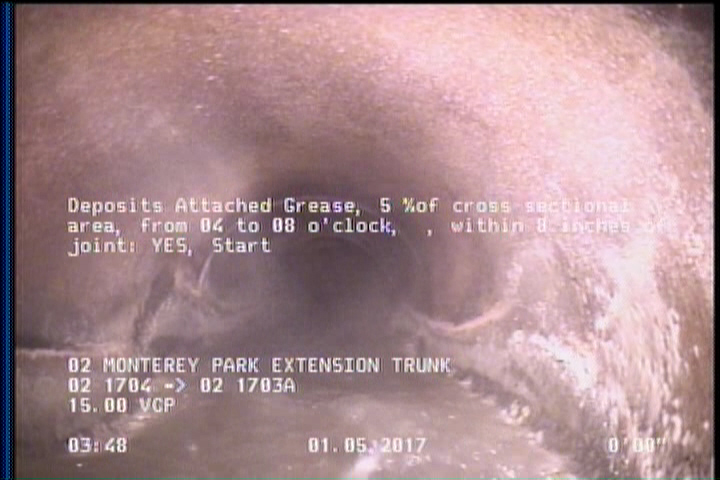

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

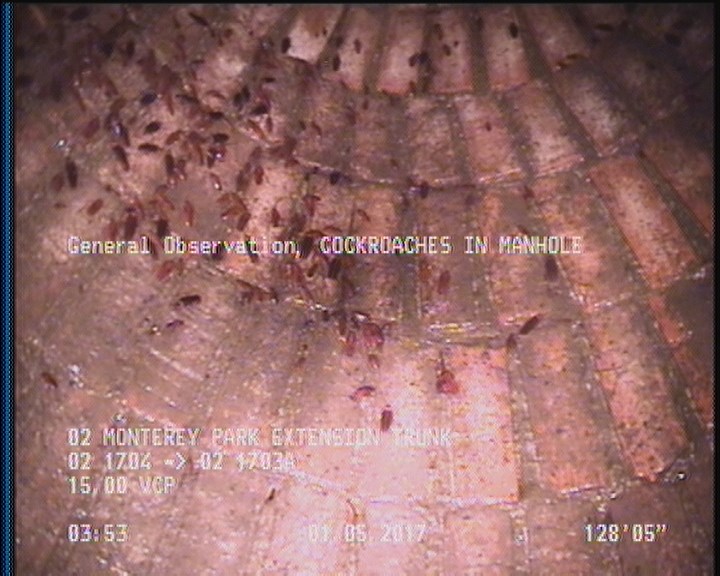

  • General Observation - COCKROACHES IN MANHOLE

    128.4 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P18865Work order 613349

Observations (13)

DistanceCodeObservation
35.4TFC—
128.4AMH02 1703A
128.4MGOACTIVE CONNECTION AT MH 9 O'CLOCK
63.8TBA—
0MWM—
0MWL—
128.4MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
0AMH02 1704
102.6TFC—
126.1DAGS—
2DAGS—
99.6TF—

Properties (4)

additional_info
SC306448
custom_field_two
4
customer
LACSD
datetime
2017-01-05T03:46:13-08:00
