Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 3, 2017, 12:07 PM

  • 02 1730_02 1729_01032017_040818.mp4

Date
01/03/2017
W/O
613349
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00289
PipeID
P18894
Time
4:07 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4048
Sewer Name
02 MONTEREY PARK EXTENSION TRUNK
City
MONTEREY PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
07
Purpose
Routine Assessment
Project
WO_613349_TV02103_JAN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1730
Downstream MH
02 1729
Dir. of Survey
Downstream
Length Surveyed
333.6 ft.
Total Length
333.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
312V
O&M Rating
229
Overall Index
2
Overall Quick
—
Overall Rating
229
Pipe schematic from manhole 02 1730 to 02 1729
MH: 02 1730MH: 02 1729downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 02 17300 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start41.7 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 11 o'clock, , within 8 inches of joint: YES56.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"99.9 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start103.8 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"151.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"207.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"319.3 ft. ID - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: YES327.9 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish331.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish333.6 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK333.6 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK333.6 ft. AMH - Downstream Manhole, Survey Ends - 02 1729

Observation photos (4)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

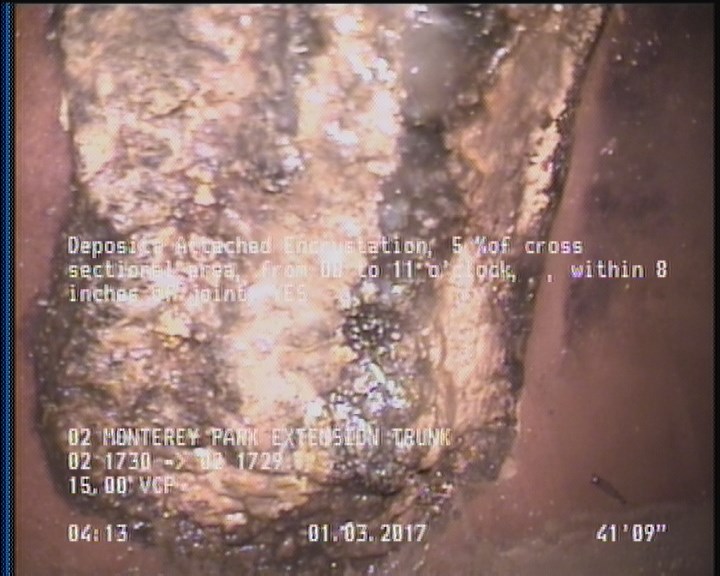

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 11 o'clock, , within 8 inches of joint: YES

    41.7 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 11 o'clock, , within 8 inches of joint: YES

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    99.9 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

  • Infiltration Dripper, at 12 o'clock, within 8 inches of joint: YES

    319.3 ft. - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: YES

All inspections of P18894Work order 613349

Observations (17)

DistanceCodeObservation
207.6TFA—
333.6MGOACTIVE CONNECTION AT MH 3 O'CLOCK
103.8TFA—
333.6MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWL—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
319.3ID—
331.2DAGS—
2DAGS—
327.9DAE—
41.7DAE—
151.9TFA—
56.2TFA—
333.6AMH02 1729
0AMH02 1730
99.9DAE—
0MWM—

Properties (4)

additional_info
SC306446
custom_field_two
4
customer
LACSD
datetime
2017-01-03T04:07:40-08:00
