Wastewater/Activity/PacpInspection/1.0Dec 28, 2016, 07:25 AM
03 0399_03 0398 _12272016_233711.mp4
- Date
- 12/27/2016
- W/O
- 613343
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00371
- PipeID
- P04974
- Time
- 11:25 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3901
- Sewer Name
- 03 MARINA TRUNK, SECTION 2
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_613343_TV03019_JAN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 03 0399
- Downstream MH
- 03 0398
- Dir. of Survey
- Downstream
- Length Surveyed
- 301.8 ft.
- Total Length
- 301.8 ft.
- Structural Index
- 1
- Structural Quick
- 2112
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 2K11
- O&M Rating
- 123
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 127
Observation photos (4)

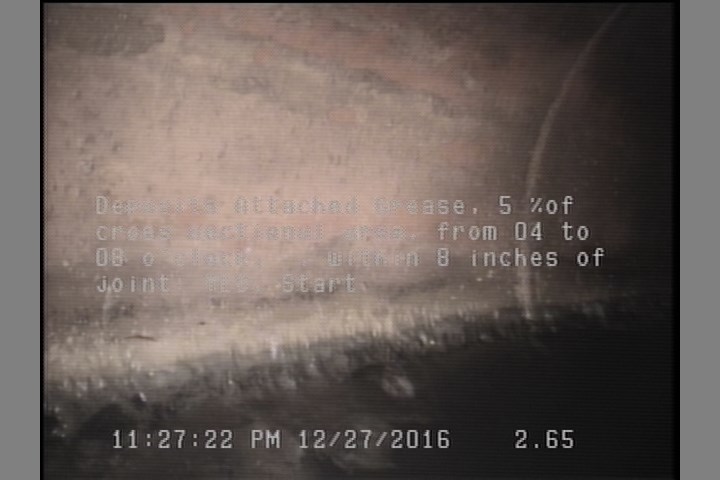

2.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

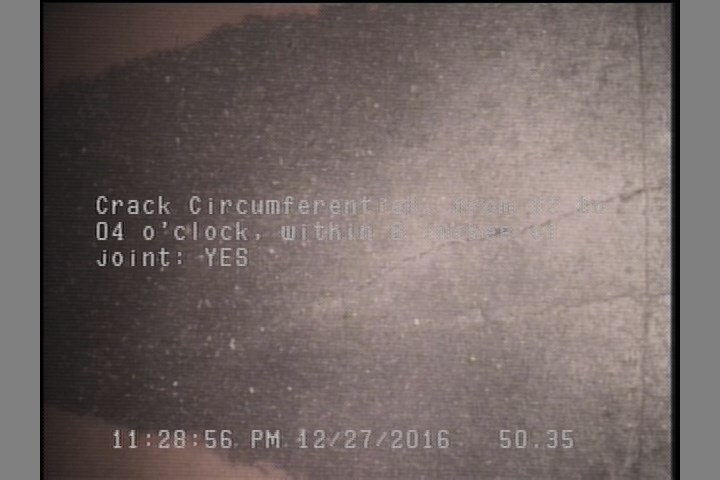

50.4 ft. - Crack Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES

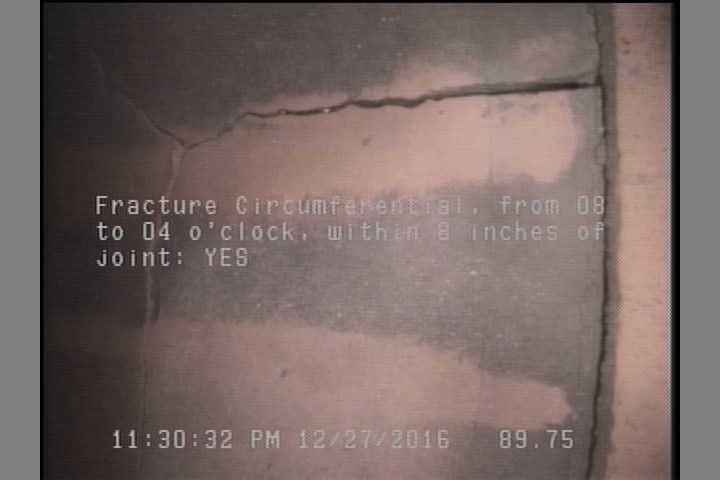

89.8 ft. - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES

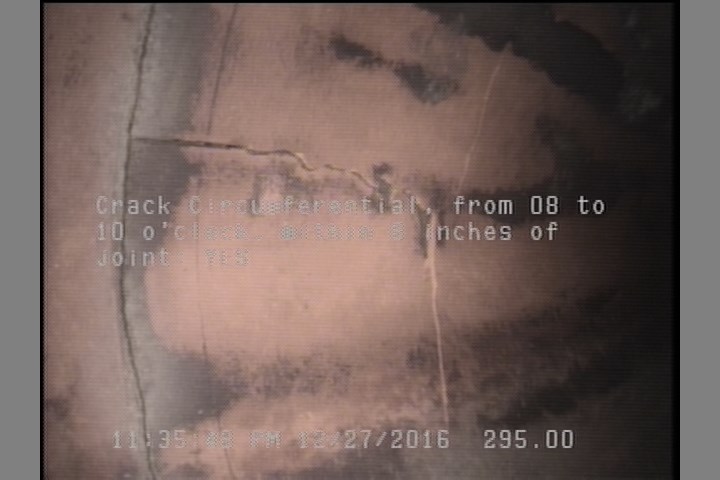

295 ft. - Crack Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 301.8 | AMH | 03 0398 |
| 0 | MWL | — |
| 0 | AMH | 03 0399 |
| 298.9 | DAGS | — |
| 50.4 | CC | — |
| 0 | MWM | — |
| 2.7 | VC | — |
| 301.8 | MGO | CONNECTION AT MH 3 O'CLOCK MADE |
| 295 | CC | — |
| 96.6 | TFC | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK MADE |
| 252.3 | TFC | — |
| 89.8 | FC | — |
| 2.7 | DAGS | — |
| 152.1 | TBC | — |
| 46.9 | TBC | — |
| 197 | TFC | — |
Properties (4)
- additional_info
- SC305242
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-12-27T23:25:50-08:00
