Wastewater/Activity/PacpInspection/1.0Oct 4, 2016, 07:19 AM
16 0042_16 0041 _10042016_002029.mp4
- Date
- 10/04/2016
- W/O
- 591626
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00639
- PipeID
- P13055
- Time
- 12:19 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3773
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
- City
- SAN GABRIEL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_591626_TV16113_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 16 0041
- Downstream MH
- 16 0042
- Dir. of Survey
- Upstream
- Length Surveyed
- 294.5 ft.
- Total Length
- 294.5 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (4)

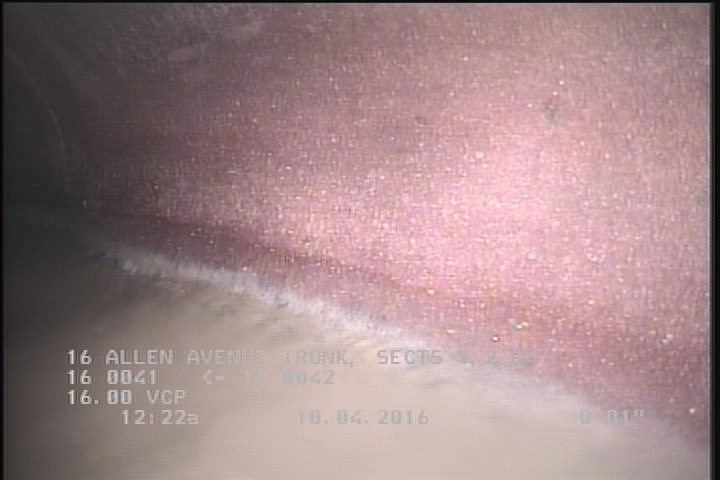

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

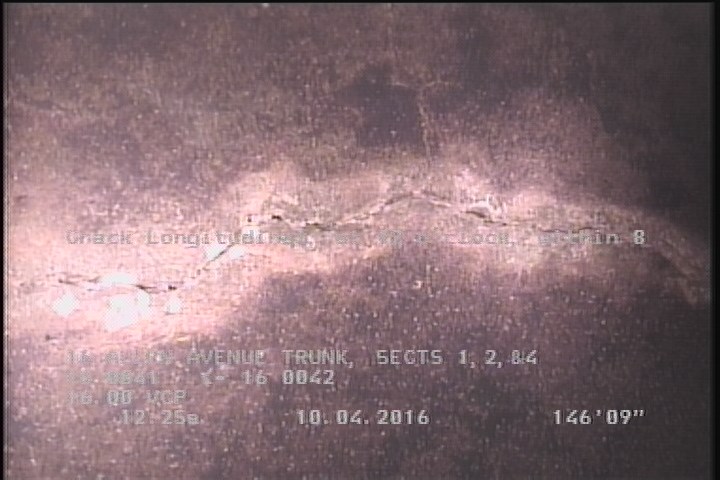

146.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

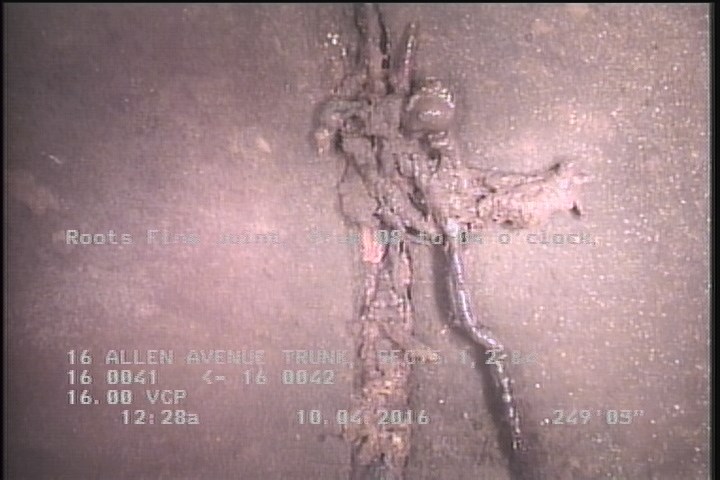

249.2 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

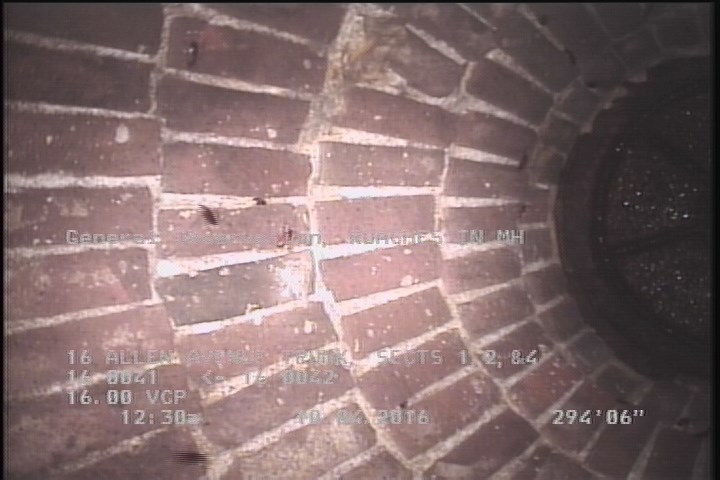

294.5 ft. - General Observation - ROACHES IN MH
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 146.7 | CL | — |
| 292.6 | DAGS | — |
| 294.5 | AMH | 16 0042 |
| 257.4 | RFJ | — |
| 2 | DAGS | — |
| 292.6 | CL | — |
| 249.2 | RFJ | — |
| 294.5 | MGO | ROACHES IN MH |
| 0 | MWM | — |
| 0 | AMH | 16 0041 |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC306310
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-04T00:19:41-07:00
