Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 12, 2017, 07:09 AM

  • 22 1010_22 1008_12102017_001416.mp4

Date
10/12/2017
W/O
663287
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00819
PipeID
P17379
Time
12:09 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5016
Sewer Name
22 LORAINE TRUNK
City
GLENDORA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
13
Purpose
Routine Assessment
Project
WO_663287_TV22109_OCT2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 1010
Downstream MH
22 1008
Dir. of Survey
Downstream
Length Surveyed
446.4 ft.
Total Length
446.4 ft.
Structural Index
3
Structural Quick
3Q00
Structural Rating
264
O&M Index
1
O&M Quick
1300
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
267
Pipe schematic from manhole 22 1010 to 22 1008
MH: 22 1010MH: 22 1008downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 10100 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - MAG COAT14 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"63.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"73.1 ft. RFJ - Roots Fine Joint, at 12 o'clock, within 8 inches of joint: YES76.8 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YES82.2 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start82.2 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish86.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"140.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"141.9 ft. RFJ - Roots Fine Joint, from 01 to 05 o'clock, within 8 inches of joint: YES216.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"313 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"341.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"395.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"443.3 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish446.4 ft. MGO - General Observation - CONNECTION AT MH 8 O'CLOCK CAPPED446.4 ft. AMH - Downstream Manhole, Survey Ends - 22 1008

Observation photos (2)

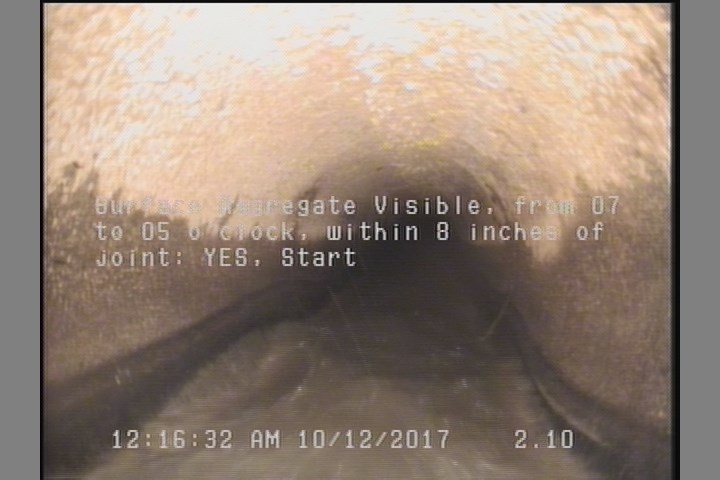

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

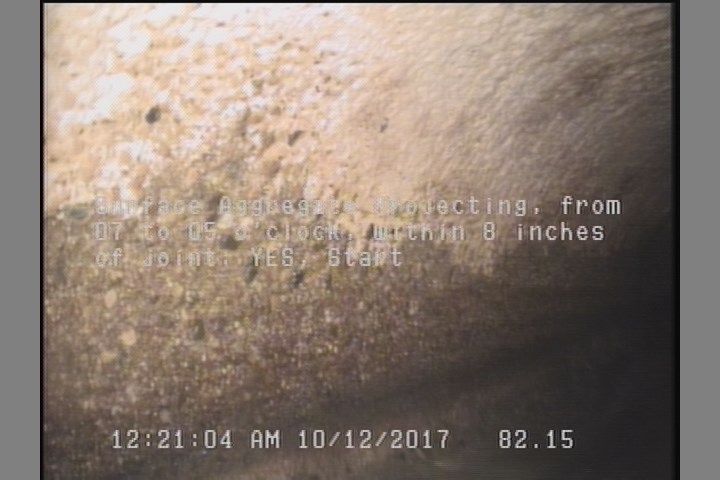

  • Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    82.2 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

All inspections of P17379Work order 663287

Observations (21)

DistanceCodeObservation
2.1SAV—
141.9RFJ—
395.3TFC—
76.8RFJ—
82.2SAP—
216.7TFC—
0AMH22 1010
313TFC—
446.4MGOCONNECTION AT MH 8 O'CLOCK CAPPED
73.1RFJ—
0MWM—
443.3SAP—
341.9TFC—
63.1TFC—
14TFC—
86.8TFC—
0MWL—
2.1MGOMAG COAT
446.4AMH22 1008
82.2SAV—
140.2TFC—

Properties (4)

additional_info
SC346176
custom_field_two
3
customer
LACSD
datetime
2017-10-12T00:09:33-07:00
