Wastewater/Activity/PacpInspection/1.0Oct 26, 2017, 07:08 AM
02 0005_02 0132_10262017_002512.mp4
- Date
- 10/26/2017
- W/O
- 663197
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00234
- PipeID
- P18010
- Time
- 12:08 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4754
- Sewer Name
- 02 ARTESIA EXTENSION TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- WO_663197_TV02263_OCT2017
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 02 0005
- Downstream MH
- 02 0132
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

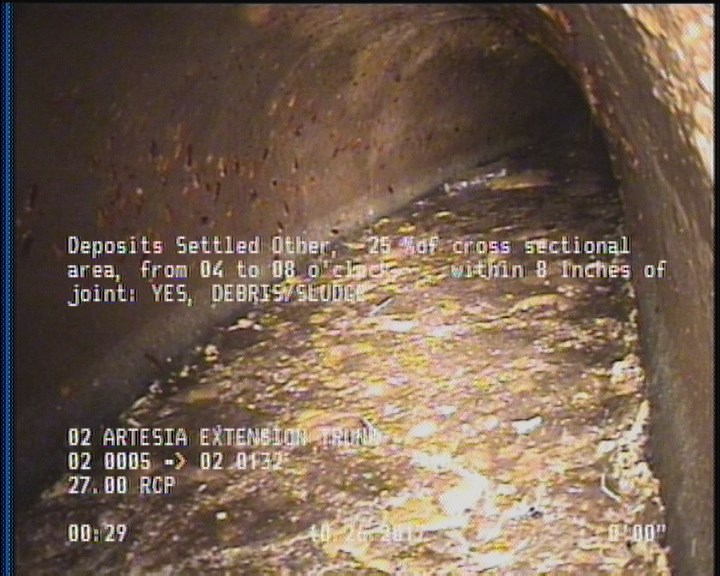

2 ft. - Deposits Settled Other, 25 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - DEBRIS/SLUDGE

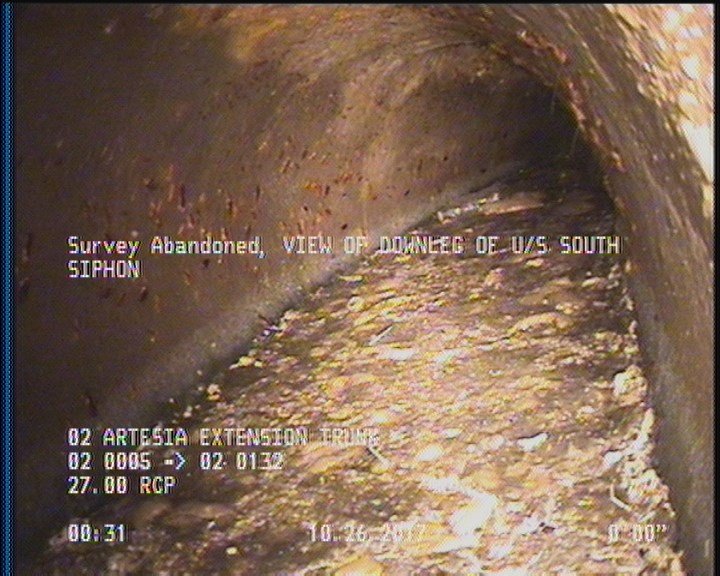

2 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SOUTH SIPHON

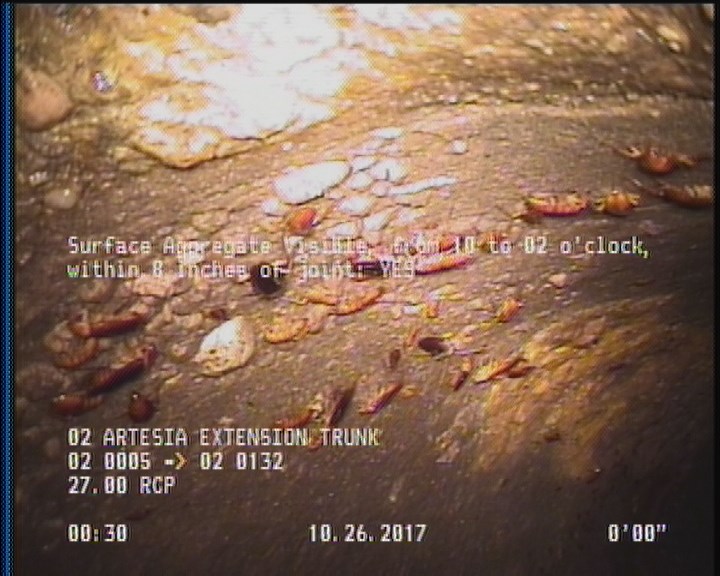

2 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 02 0005, SOUTH SIPHON |
| 2 | DSZ | DEBRIS/SLUDGE |
| 2 | MSA | VIEW OF DOWNLEG OF U/S SOUTH SIPHON |
| 2 | SAV | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC346067
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-26T00:08:53-07:00
