Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2017, 05:28 AM

  • A 0955_D 0187_24102017_102710.mp4

Date
10/04/2017
W/O
663140
Weather
Dry
Operator/Surveyor
ROMAN V
Sewer ID
Z00159
PipeID
P10085
Time
10:28 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4287
Sewer Name
D JOINT OUTFALL D - UNIT 8
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
WO_663140_TV08110_OCT2017
Sewer Type
Gravity
Material
RCP-CTL
Shape
Circular
Height
54 in.
Width
54 in.
Upstream MH
D 0187
Downstream MH
A 0955
Dir. of Survey
Upstream
Length Surveyed
16.7 ft.
Total Length
16.7 ft.
Structural Index
4
Structural Quick
5232
Structural Rating
16
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
4
Overall Quick
—
Overall Rating
21
Pipe schematic from manhole D 0187 to A 0955
MH: D 0187MH: A 0955upstream0 ft. MSA - Survey Abandoned - 40% DEBRIS0.6 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0.6 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0.6 ft. OBZ - Obstacles Other, 40 %of cross sectional area, from 04 to 08 o'clock - DEBRIS10.7 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start10.7 ft. MGO - General Observation - MAG COAT START10.7 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start16.7 ft. MWL - Water Level, 20 %of cross sectional area16.7 ft. AMH - Downstream Manhole, Survey Begins - D 018716.7 ft. MGO - General Observation - CONNECTION @ MH 3 O'CLOCK16.7 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (2)

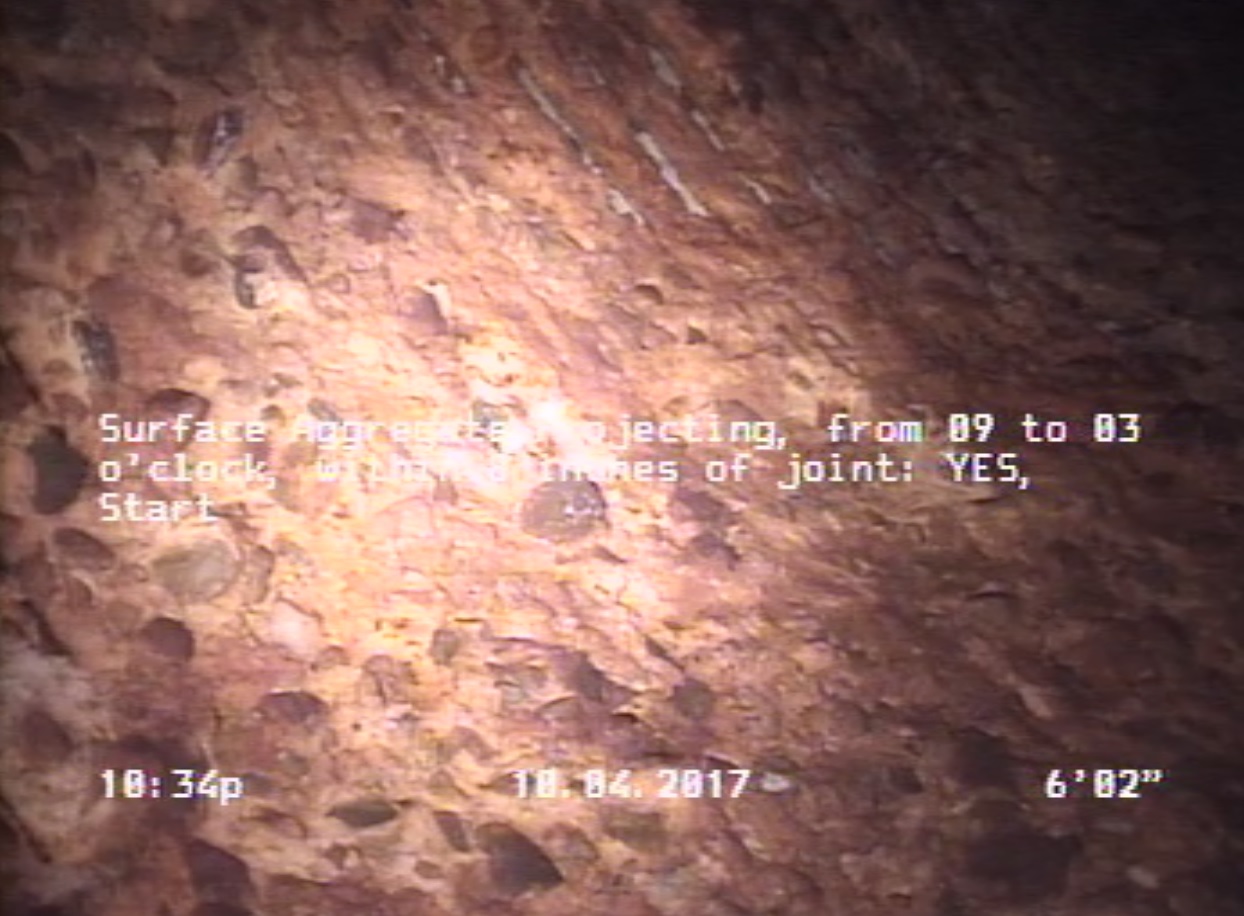

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

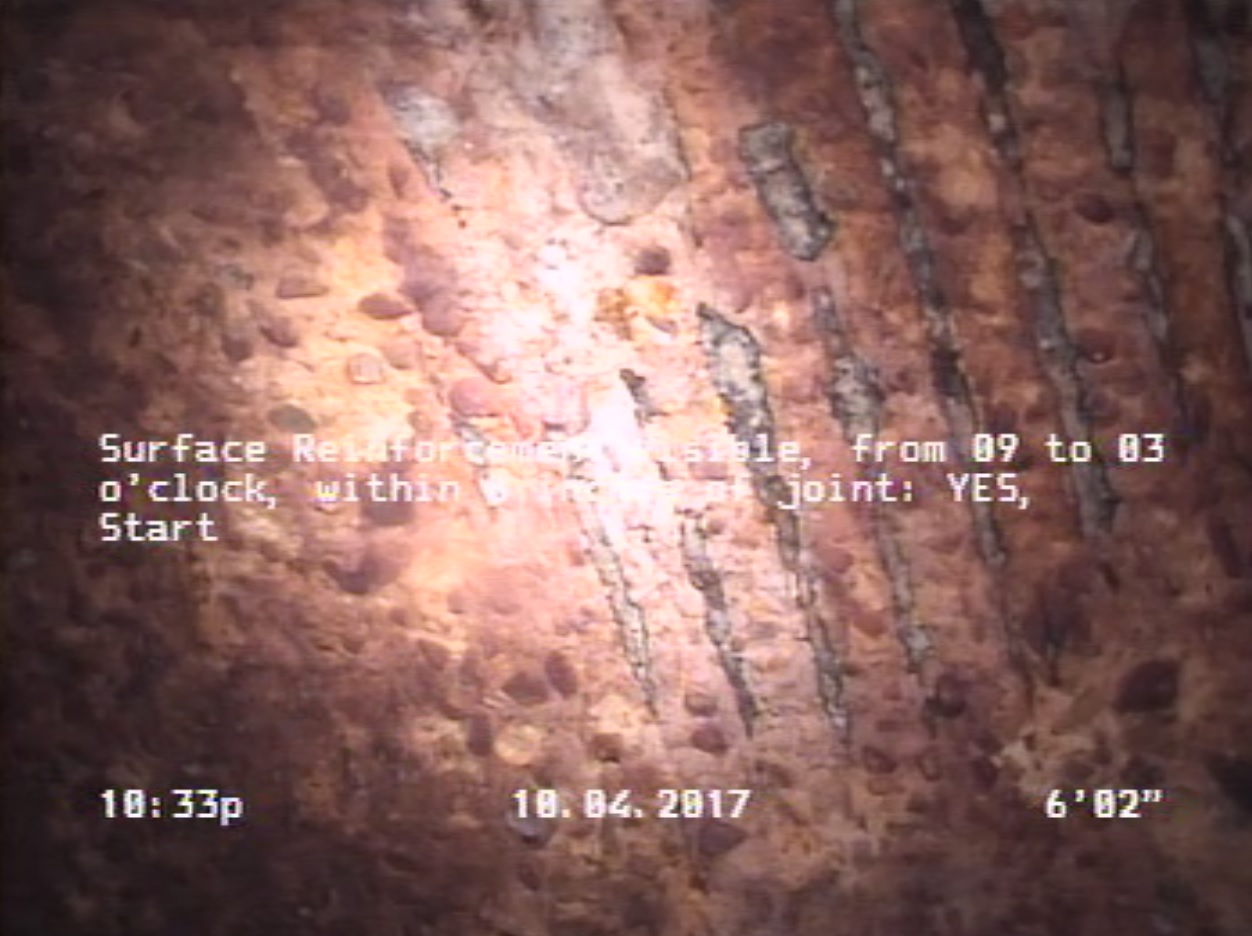

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P10085Work order 663140

Observations (11)

DistanceCodeObservation
16.1SAP—
6SAP—
0MWL—
0AMHD 0187
0MGOCONNECTION @ MH 3 O'CLOCK
0MWM—
16.1SRV—
6MGOMAG COAT START
16.7MSA40% DEBRIS
6SRV—
16.1OBZDEBRIS

Properties (4)

additional_info
SC352132
custom_field_two
3
customer
LACSD
datetime
2017-10-04T22:28:00-07:00
