Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 18, 2018, 06:45 PM

  • 16 0006_16 0389_9182018_115345.mp4

  • 16 0006_16 0389_9182018_120952.mp4

Date
09/18/2018
W/O
0729711
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00658
PipeID
P13441
Time
11:45 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7812
Sewer Name
16 DISTRICT #16 MAIN RELIEF TRUNK
City
ALHAMBRA
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
02
Purpose
Routine Assessment
Project
20180918DF_DISTRICT_16_MAIN_RELIEF_TRUNK
Material
CIP
Shape
Circular
Height
10 in.
Upstream MH
16 0006
Downstream MH
16 0389
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 16 0006 to 16 0389
MH: 16 0006MH: 16 0389downstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:52 AM0.1 ft. MWM - Water Mark, 20 %of cross sectional area0.1 ft. MWL - Water Level, 15 %of cross sectional area2 ft. MGP - General Photograph2 ft. MGP - General Photograph2 ft. MGP - General Photograph2 ft. MGP - General Photograph2 ft. MGP - General Photograph2.1 ft. AMH - Downstream Manhole, Survey Ends - 12:15 PM

Observation photos (5)

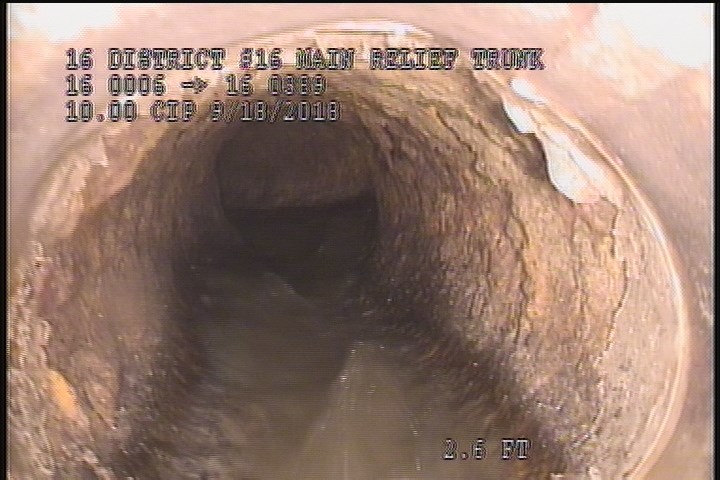

  • Upstream Manhole, Survey Begins - 11:52 AM

    0 ft. - Upstream Manhole, Survey Begins - 11:52 AM

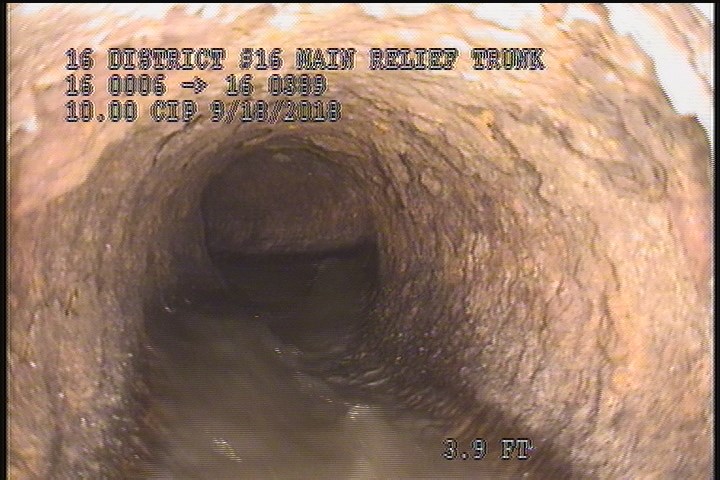

  • Water Mark, 20 %of cross sectional area

    0.1 ft. - Water Mark, 20 %of cross sectional area

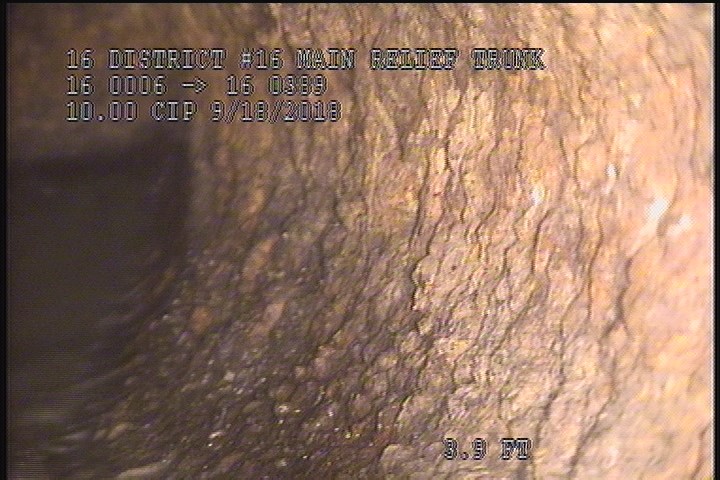

  • General Photograph

    2 ft. - General Photograph

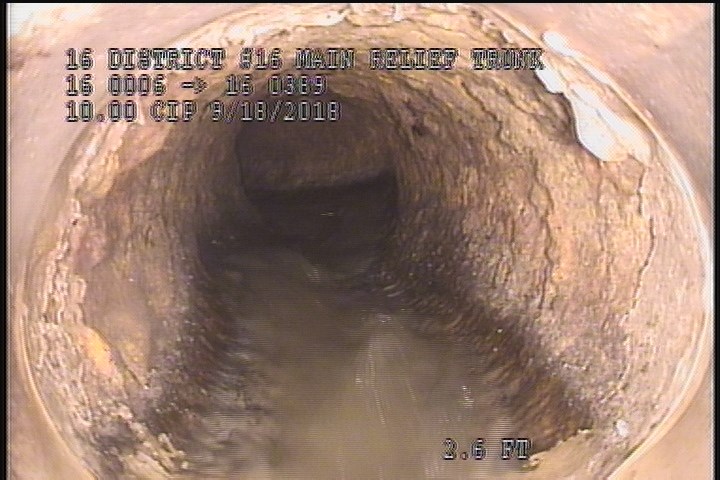

  • General Photograph

    2 ft. - General Photograph

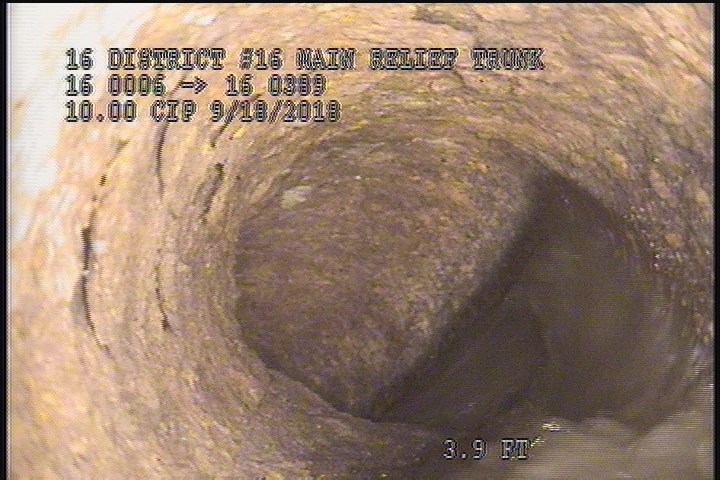

  • General Photograph

    2 ft. - General Photograph

All inspections of P13441Work order 0729711

Observations (9)

DistanceCodeObservation
0.1MWM—
2.1AMH12:15 PM
2MGP—
2MGP—
2MGP—
2MGP—
0.1MWL—
0AMH11:52 AM
2MGP—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-09-18T11:45:35-07:00
