Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 17, 2018, 07:39 PM

  • 29 0172_29 0171_9172018_123933.mp4

Date
09/17/2018
W/O
0726334
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00354
PipeID
P24068
Time
12:39 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7811
Sewer Name
29 28TH STREET TRUNK
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Capital Improvement Program Assesment
Project
20180917DF_28TH_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
29 0171
Downstream MH
29 0172
Dir. of Survey
Upstream
Length Surveyed
161 ft.
Total Length
161 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 29 0171 to 29 0172
MH: 29 0171MH: 29 0172upstream0 ft. AMH - Upstream Manhole, Survey Ends - 12:57 PM0.2 ft. MGO - General Observation - Grease Throughout The Reach (5%)2.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish3.3 ft. MGP - General Photograph16.7 ft. MGP - General Photograph - GREASE35.9 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open/20% GREASE-LATERAL46.6 ft. MGP - General Photograph56.4 ft. MGP - General Photograph75 ft. TBD - Tap Break-In Defective, at 09 o'clock, -, , within 8 inches of joint: YES, 4" - Open/30% GREASE-LATERAL92.7 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"109.1 ft. MGP - General Photograph154.7 ft. MGP - General Photograph159 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start159 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start160.9 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active160.9 ft. MWL - Water Level, 15 %of cross sectional area160.9 ft. MWM - Water Mark, 20 %of cross sectional area161 ft. AMH - Downstream Manhole, Survey Begins - 12:39 PM

Observation photos (8)

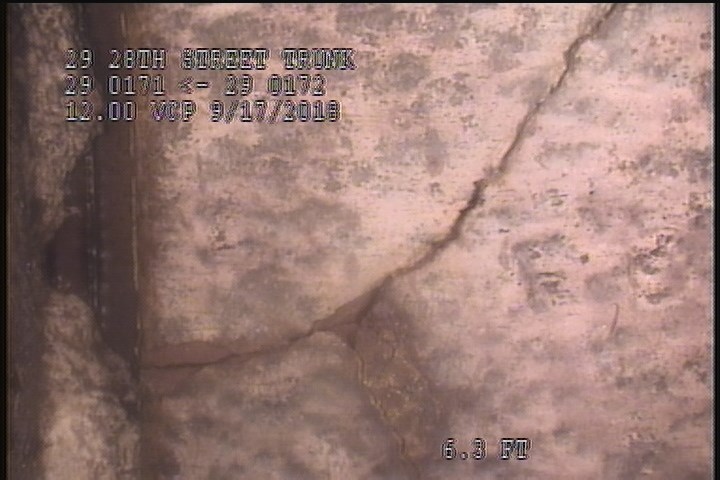

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

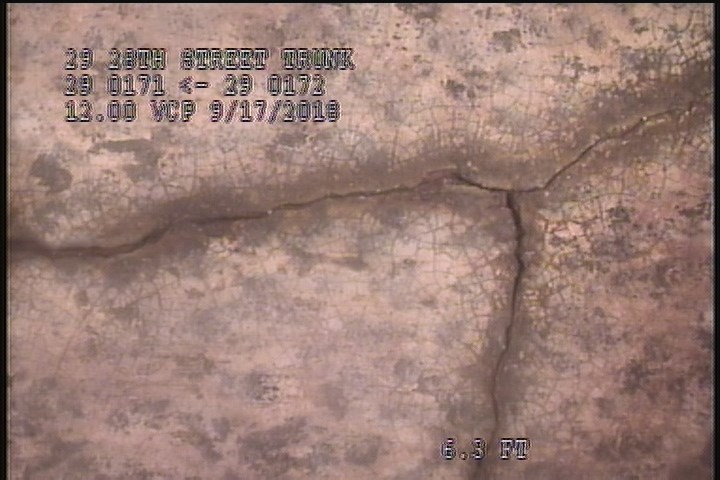

  • General Photograph

    6.3 ft. - General Photograph

  • General Photograph

    51.9 ft. - General Photograph

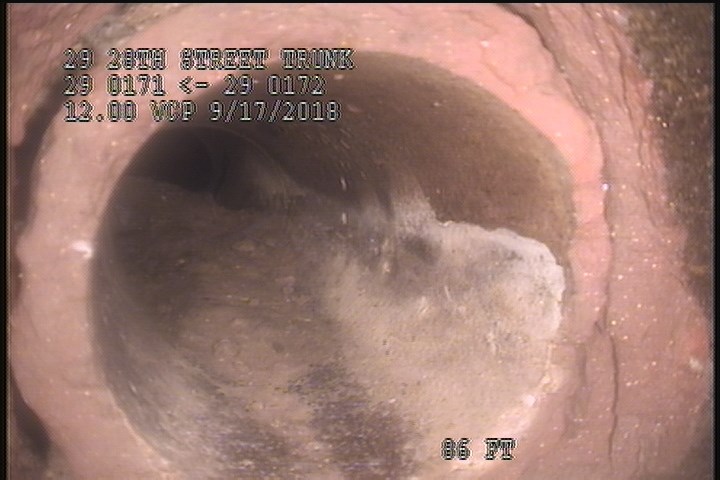

  • Tap Break-In Defective, at 09 o'clock, -, , within 8 inches of joint: YES, 4" - Open/30% GREASE-LATERAL

    86 ft. - Tap Break-In Defective, at 09 o'clock, -, , within 8 inches of joint: YES, 4" - Open/30% GREASE-LATERAL

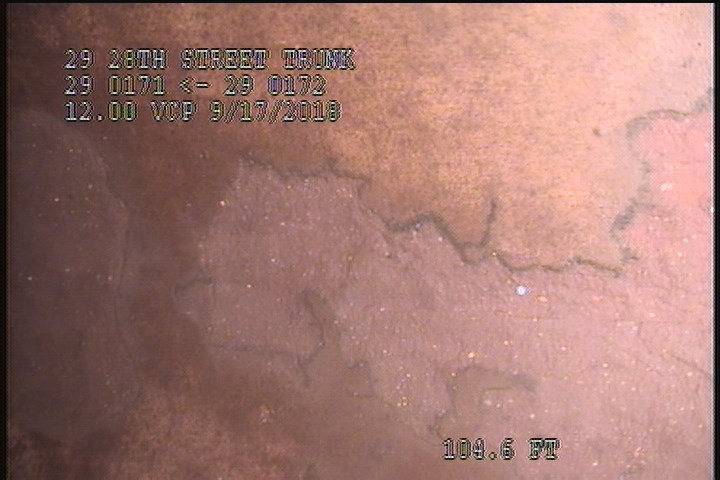

  • General Photograph

    104.6 ft. - General Photograph

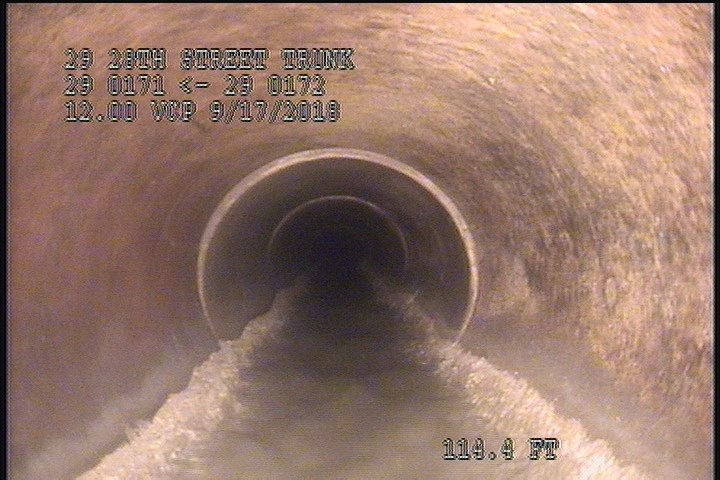

  • General Photograph

    114.4 ft. - General Photograph

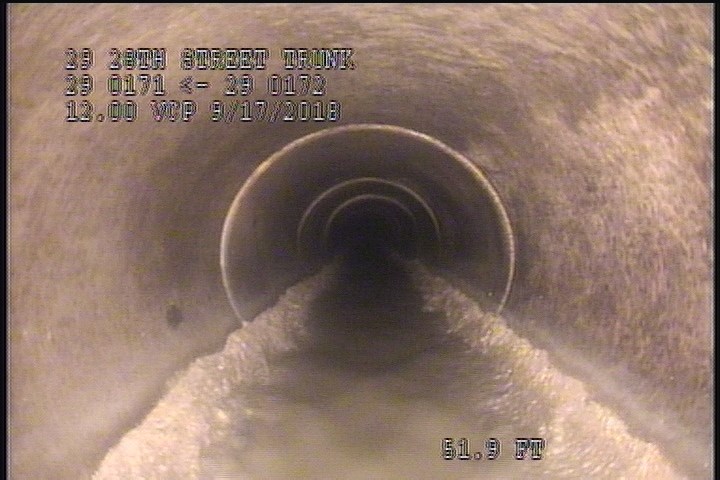

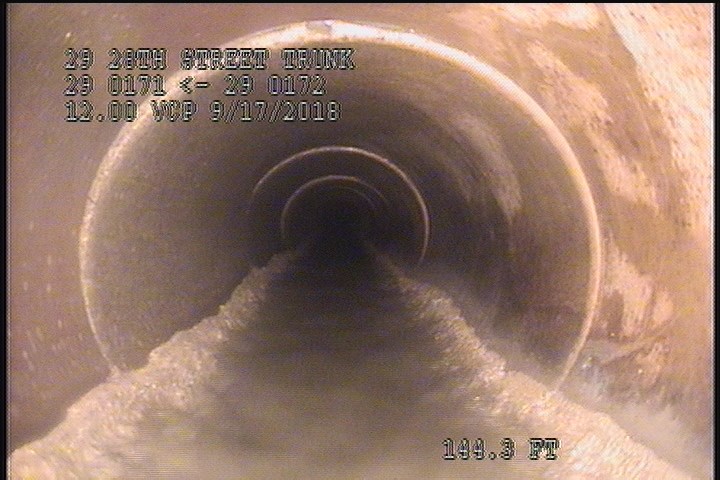

  • General Photograph - GREASE

    144.3 ft. - General Photograph - GREASE

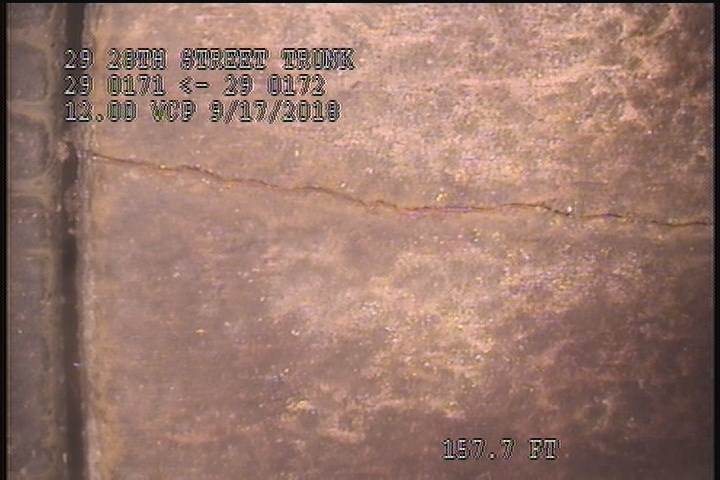

  • General Photograph

    157.7 ft. - General Photograph

All inspections of P24068Work order 0726334

Observations (19)

DistanceCodeObservation
114.4MGP—
6.3MGP—
157.7MGP—
158.3CM—
161AMH12:57 PM
0.1MGOConn. @ Mh, 9 O' Clock. Active
86TBDOpen/30% GREASE-LATERAL
0AMH12:39 PM
2SSS—
104.6MGP—
51.9MGP—
68.3TFC—
125.1TBOpen/20% GREASE-LATERAL
158.3SSS—
160.8MGOGrease Throughout The Reach (5%)
144.3MGPGREASE
2CM—
0.1MWL—
0.1MWM—

Properties (4)

additional_info
ON SCREEN TAPE NUMBER IS WRONG. CORRECT TAPE NUMBER IS G7811
custom_field_two
3
customer
LACSD
datetime
2018-09-17T12:39:16-07:00
