Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 18, 2018, 07:26 AM

  • Section#17_-_C 0619__9182018__I0069.mp4

Date
09/18/2018
W/O
0728717
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00980
PipeID
P23095
Time
12:26 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0069
Sewer Name
C JOINT OUTFALL C - UNIT 4C REPLACEMENT
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
16
Purpose
Maintenance Related
Project
20180914MDM_JOINT_OUTFALL_C_UNIT_4C_REPLACEMENT
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
-
Downstream MH
C 0619
Dir. of Survey
Downstream
Length Surveyed
6.2 ft.
Total Length
6.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole - to C 0619
MH: -MH: C 0619downstream0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:25AM0 ft. MWL - Water Level, 20 %of cross sectional area5.2 ft. MGO - General Observation - WOOD PLANKS RIGHT SIDE5.2 ft. MGO - General Observation - STOPLOG CABLES5.2 ft. MGO - General Observation - WOOD PLANKS LEFT SIDE5.2 ft. MGO - General Observation - STOPLOG CABLES TOP5.9 ft. MGO - General Observation - LEFT SIDE STOPLOG ON WOOD PLANKS5.9 ft. MGO - General Observation - BROKEN WOOD PLANK RIGHT SIDE5.9 ft. MGO - General Observation - PANKS WITH DEBRIE5.9 ft. MGO - General Observation - RIGHT SIDE STOPLOG ON WOOD PLANKS6.2 ft. MSA - Survey Abandoned - VEIW DOWNSTREAM STOPLOG MHC 619

Observation photos (8)

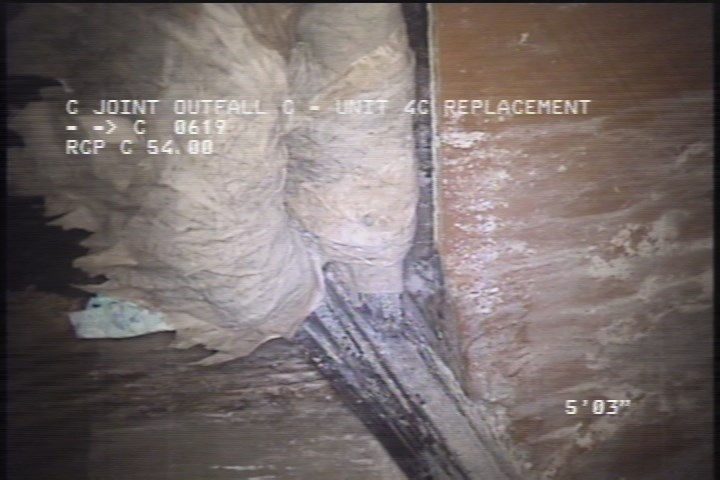

  • General Observation - WOOD PLANKS RIGHT SIDE

    5.2 ft. - General Observation - WOOD PLANKS RIGHT SIDE

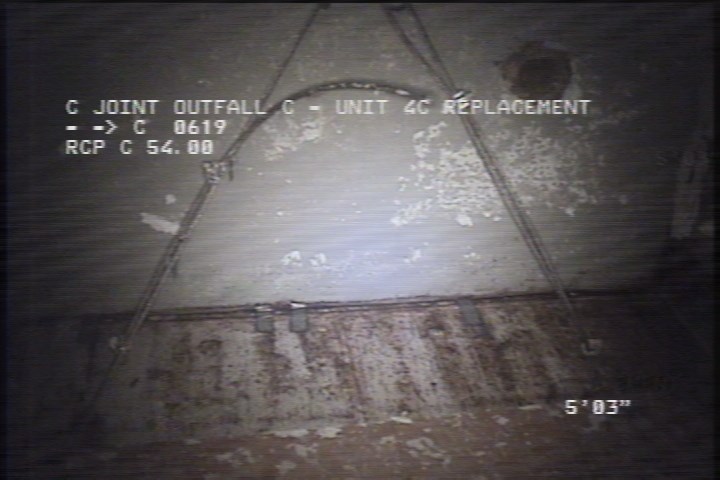

  • General Observation - STOPLOG CABLES

    5.2 ft. - General Observation - STOPLOG CABLES

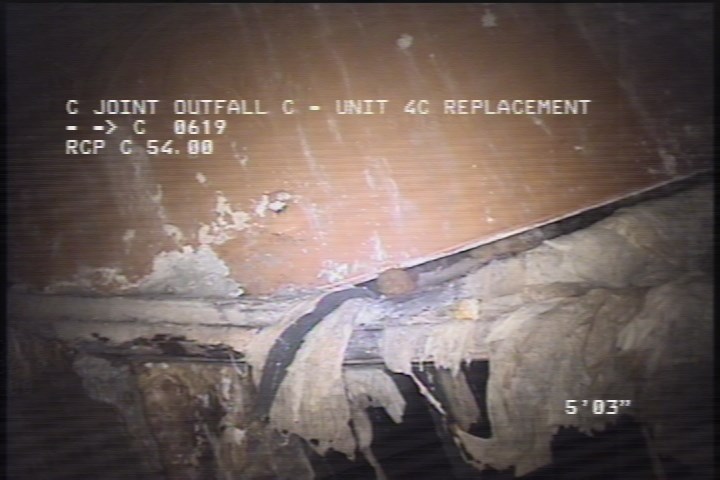

  • General Observation - WOOD PLANKS LEFT SIDE

    5.2 ft. - General Observation - WOOD PLANKS LEFT SIDE

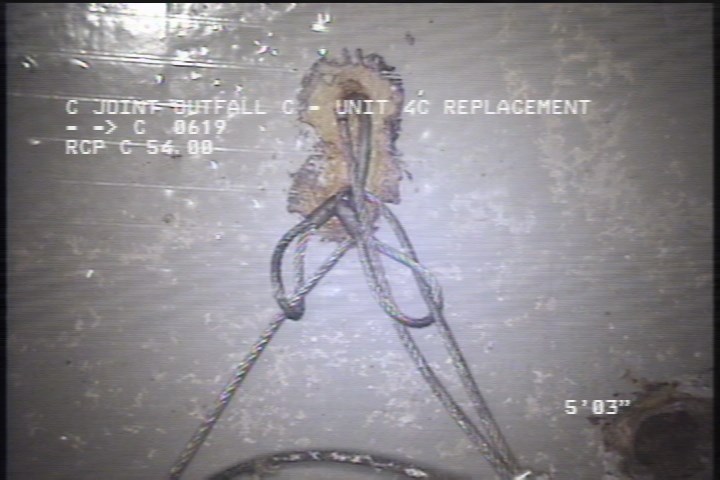

  • General Observation - STOPLOG CABLES TOP

    5.2 ft. - General Observation - STOPLOG CABLES TOP

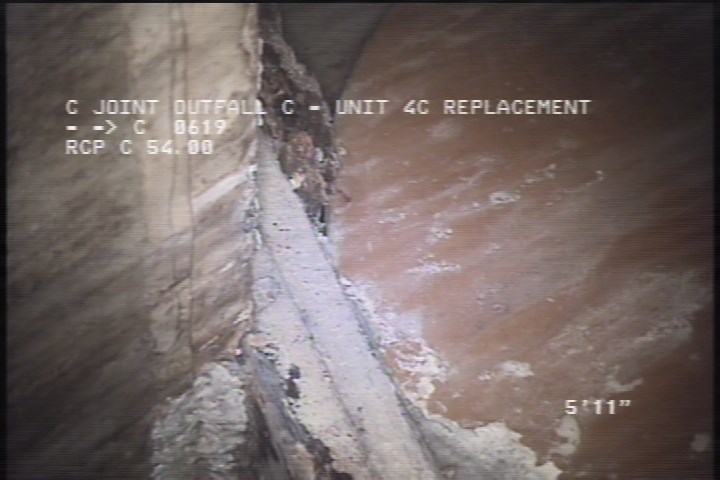

  • General Observation - LEFT SIDE STOPLOG ON WOOD PLANKS

    5.9 ft. - General Observation - LEFT SIDE STOPLOG ON WOOD PLANKS

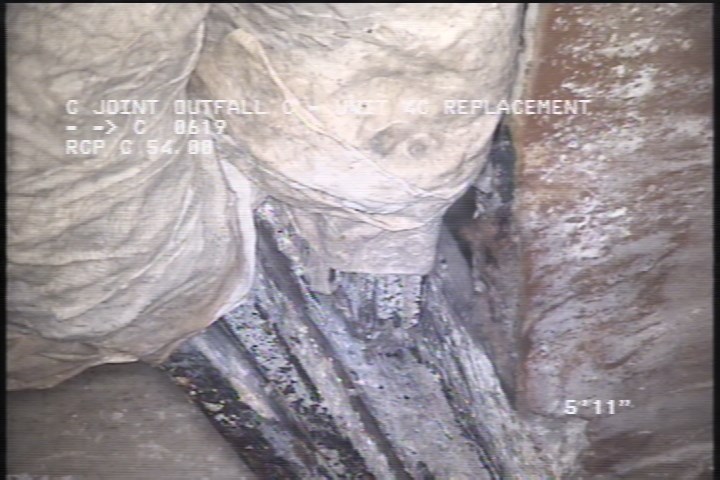

  • General Observation - BROKEN WOOD PLANK RIGHT SIDE

    5.9 ft. - General Observation - BROKEN WOOD PLANK RIGHT SIDE

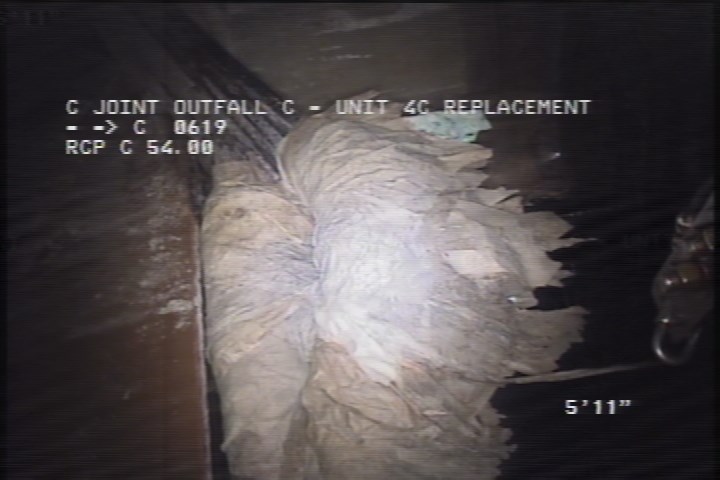

  • General Observation - PANKS WITH DEBRIE

    5.9 ft. - General Observation - PANKS WITH DEBRIE

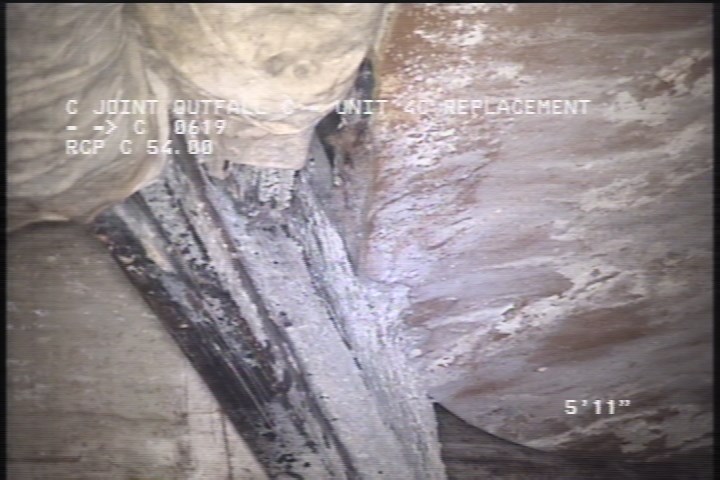

  • General Observation - RIGHT SIDE STOPLOG ON WOOD PLANKS

    5.9 ft. - General Observation - RIGHT SIDE STOPLOG ON WOOD PLANKS

All inspections of P23095Work order 0728717

Observations (12)

DistanceCodeObservation
5.9MGOLEFT SIDE STOPLOG ON WOOD PLANKS
6.2MSAVEIW DOWNSTREAM STOPLOG MHC 619
5.2MGOWOOD PLANKS RIGHT SIDE
5.9MGOBROKEN WOOD PLANK RIGHT SIDE
5.2MGOSTOPLOG CABLES
0MWM—
5.2MGOWOOD PLANKS LEFT SIDE
0AMH12:25AM
5.9MGOPANKS WITH DEBRIE
5.9MGORIGHT SIDE STOPLOG ON WOOD PLANKS
5.2MGOSTOPLOG CABLES TOP
0MWL—

Properties (3)

additional_info
STOPLOG CABLE INSPECTION ONLY
customer
LACSD
datetime
2018-09-18T00:26:16-07:00
