Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 17, 2018, 11:02 AM

  • Section#16_C 0620_C 0619__9172018__I0068.mp4

Date
09/17/2018
W/O
0728717
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00980
PipeID
P23095
Time
4:02 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0068
Sewer Name
C JOINT OUTFALL C - UNIT 4C REPLACEMENT
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
16
Purpose
Routine Assessment
Project
20180914MDM_JOINT_OUTFALL_C_UNIT_4C_REPLACEMENT
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
C 0619
Downstream MH
C 0620
Dir. of Survey
Upstream
Length Surveyed
5 ft.
Total Length
5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
5121
O&M Rating
7
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole C 0619 to C 0620
MH: C 0619MH: C 0620upstream0 ft. MSA - Survey Abandoned - UPLEG DOWN STREAM SIPHON1.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES4 ft. MGO - General Observation - WOOD PLANKS OVER DOWNSTREAM PIPE5 ft. MGO - General Observation - MH CONN 9:00 ACTIVE OUTGOING5 ft. MGO - General Observation - MH CONN 3:00 ACTIVE INCOMING5 ft. MWM - Water Mark, 100 %of cross sectional area5 ft. MWL - Water Level, 80 %of cross sectional area5 ft. AMH - Downstream Manhole, Survey Begins - 5:15AM

Observation photos (3)

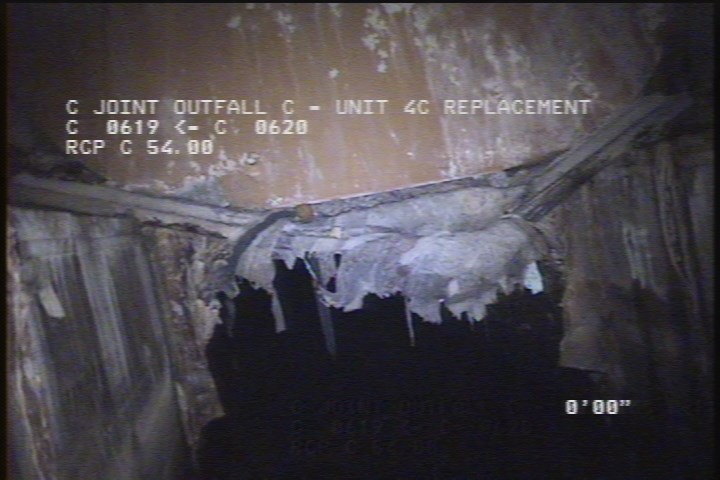

  • General Observation - WOOD PLANKS OVER DOWNSTREAM PIPE

    1 ft. - General Observation - WOOD PLANKS OVER DOWNSTREAM PIPE

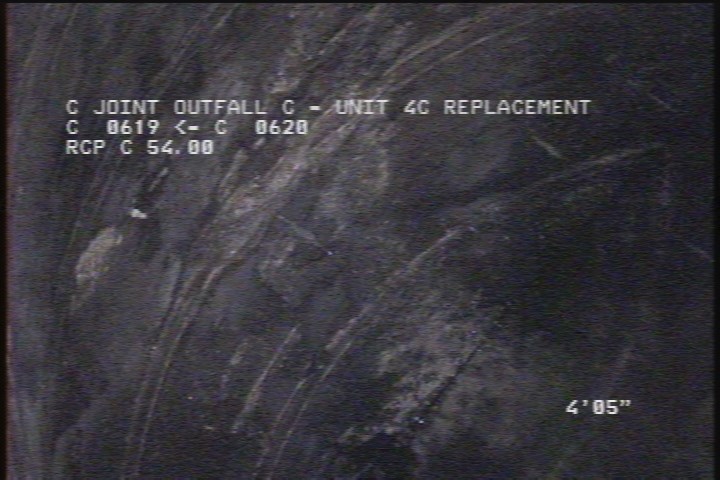

  • Deposits Attached Grease, 10 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

    3.9 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

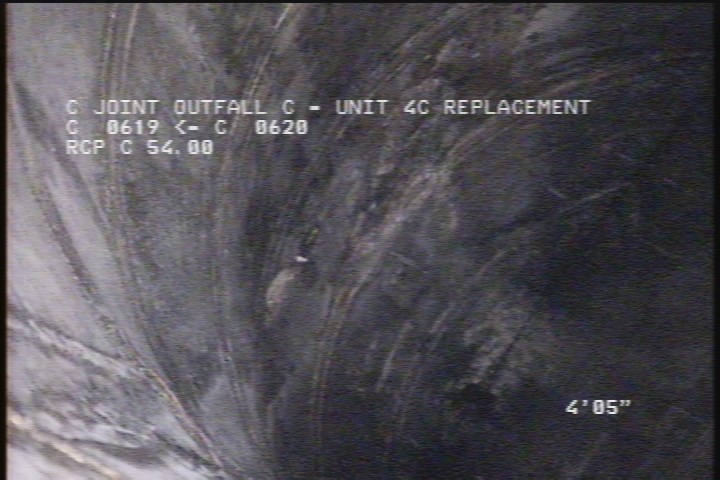

  • Survey Abandoned - UPLEG DOWN STREAM SIPHON

    5 ft. - Survey Abandoned - UPLEG DOWN STREAM SIPHON

All inspections of P23095Work order 0728717

Observations (8)

DistanceCodeObservation
3.9DAGS—
0MGOMH CONN 9:00 ACTIVE OUTGOING
0MGOMH CONN 3:00 ACTIVE INCOMING
0MWM—
1MGOWOOD PLANKS OVER DOWNSTREAM PIPE
0MWL—
0AMH5:15AM
5MSAUPLEG DOWN STREAM SIPHON

Properties (5)

additional_info
UPLEG DOWNSTREAM SIPHON
custom_field_three
LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2018-09-17T04:02:44-07:00
