Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 17, 2018, 09:06 AM

  • Section#14_C 0621_C 0620__9172018__I0068.mp4

Date
09/17/2018
W/O
0728717
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00980
PipeID
P23096
Time
2:06 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0068
Sewer Name
C JOINT OUTFALL C - UNIT 4C REPLACEMENT
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
16
Purpose
Routine Assessment
Project
20180914MDM_JOINT_OUTFALL_C_UNIT_4C_REPLACEMENT
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
C 0621
Downstream MH
C 0620
Dir. of Survey
Downstream
Length Surveyed
581.4 ft.
Total Length
581.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole C 0621 to C 0620
MH: C 0621MH: C 0620downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:30AM0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area8 ft. MGO - General Observation - 54" RGRCP-PTL28.1 ft. MGP - General Photograph - PTL525.3 ft. MGO - General Observation - 54" RGRCP-PTL580.8 ft. DSZ - Deposits Settled Other, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO - FLOATING SLUDGE581.4 ft. AMH - Downstream Manhole, Survey Ends - 4:00 AM

Observation photos (4)

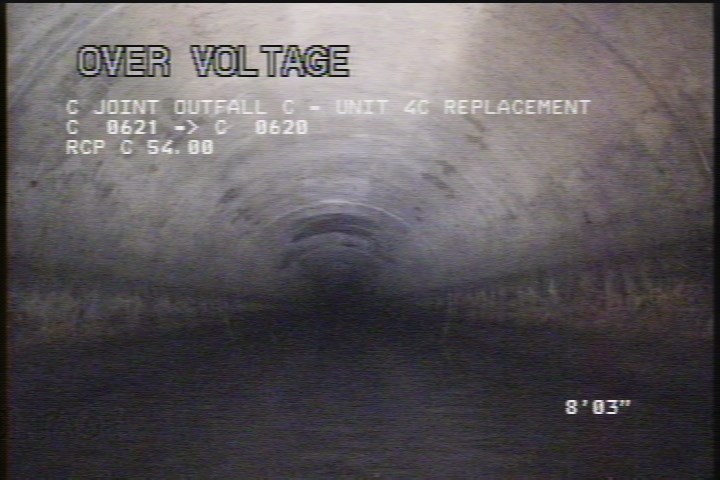

  • General Observation - 54" RGRCP-PTL

    8 ft. - General Observation - 54" RGRCP-PTL

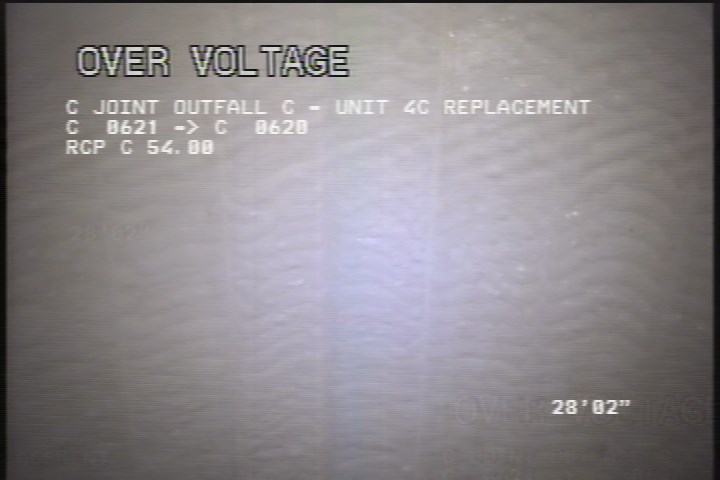

  • General Photograph - PTL

    28.1 ft. - General Photograph - PTL

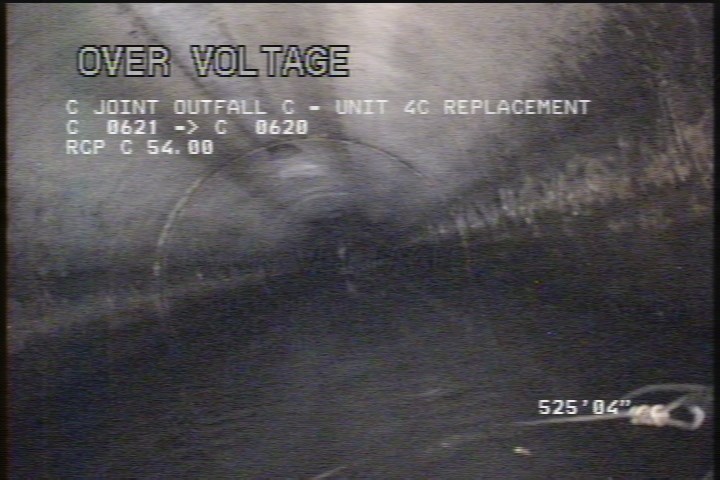

  • General Observation - 54" RGRCP-PTL

    525.3 ft. - General Observation - 54" RGRCP-PTL

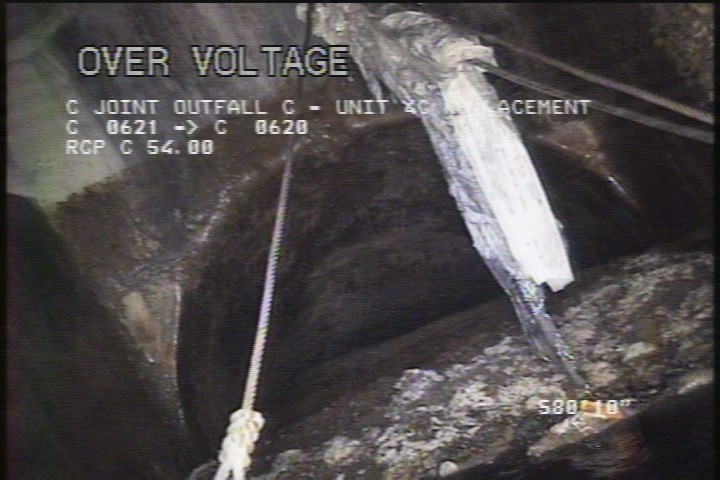

  • Deposits Settled Other, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO - FLOATING SLUDGE

    580.8 ft. - Deposits Settled Other, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO - FLOATING SLUDGE

All inspections of P23096Work order 0728717

Observations (8)

DistanceCodeObservation
28.1MGPPTL
8MGO54" RGRCP-PTL
0AMH3:30AM
581.4AMH4:00 AM
580.8DSZFLOATING SLUDGE
525.3MGO54" RGRCP-PTL
0MWM—
0MWL—

Properties (4)

custom_field_three
LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2018-09-17T02:06:38-07:00
