Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 14, 2018, 10:03 AM

  • Section#10_C 0625_C 0624__9142018__I0067.mp4

Date
09/14/2018
W/O
0728717
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00980
PipeID
P23100
Time
3:03 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0067
Sewer Name
C JOINT OUTFALL C - UNIT 4C REPLACEMENT
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
16
Purpose
Routine Assessment
Project
20180914MDM_JOINT_OUTFALL_C_UNIT_4C_REPLACEMENT
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
C 0625
Downstream MH
C 0624
Dir. of Survey
Downstream
Length Surveyed
457.9 ft.
Total Length
457.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole C 0625 to C 0624
MH: C 0625MH: C 0624downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:00AM0 ft. MGO - General Observation - MH CONN 3:00 ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area63.6 ft. MGP - General Photograph301.4 ft. MGO - General Observation - 54 " RGRCP-PTL457.6 ft. MGO - General Observation - MH CONN 9:00 ACTIVE457.9 ft. AMH - Downstream Manhole, Survey Ends - 5:20AM

Observation photos (3)

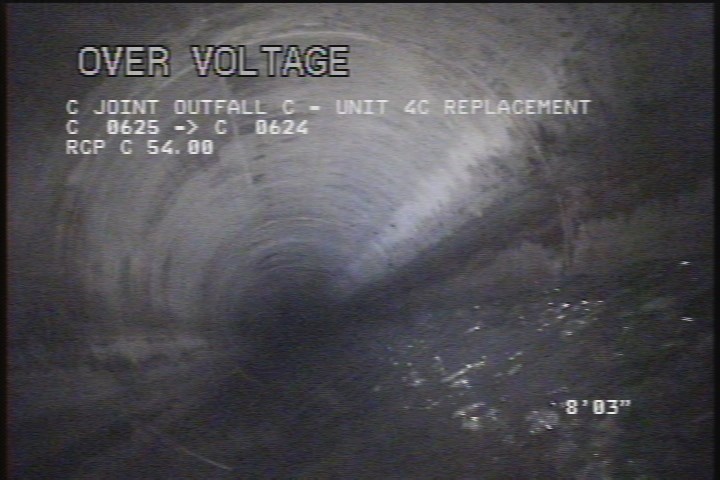

  • Water Mark, 20 %of cross sectional area

    0 ft. - Water Mark, 20 %of cross sectional area

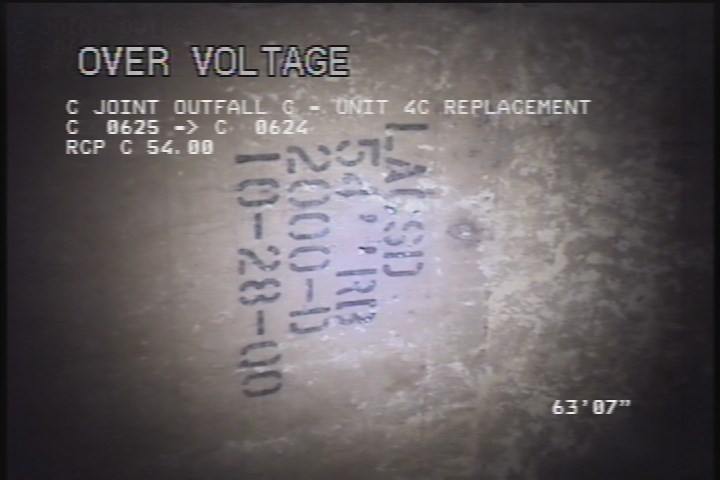

  • General Photograph

    63.6 ft. - General Photograph

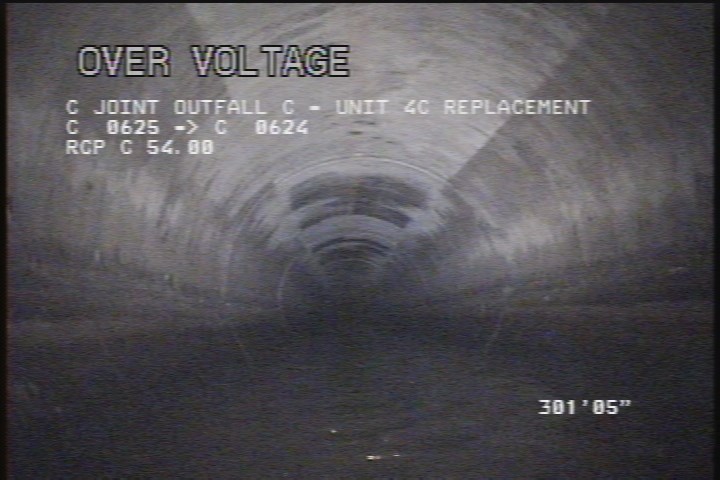

  • General Observation - 54 " RGRCP-PTL

    301.4 ft. - General Observation - 54 " RGRCP-PTL

All inspections of P23100Work order 0728717

Observations (8)

DistanceCodeObservation
0MWM—
457.9AMH5:20AM
301.4MGO54 " RGRCP-PTL
0AMH5:00AM
63.6MGP—
0MGOMH CONN 3:00 ACTIVE
0MWL—
457.6MGOMH CONN 9:00 ACTIVE

Properties (4)

custom_field_three
LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2018-09-14T03:03:52-07:00
