Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 14, 2018, 10:00 AM

  • Section#7_C 0627A_C 0627__9142018__I0067.mp4

Date
09/14/2018
W/O
0728717
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00980
PipeID
P23103
Time
3:00 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0067
Sewer Name
C JOINT OUTFALL C - UNIT 4C REPLACEMENT
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
16
Purpose
Routine Assessment
Project
20180914MDM_JOINT_OUTFALL_C_UNIT_4C_REPLACEMENT
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
C 0627A
Downstream MH
C 0627
Dir. of Survey
Downstream
Length Surveyed
263.8 ft.
Total Length
263.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole C 0627A to C 0627
MH: C 0627AMH: C 0627downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:00AM0 ft. MWM - Water Mark, 20 %of cross sectional area1 ft. MGO - General Observation - BOX PIPE UPSTREAM NO SIPHON8.1 ft. MGO - General Observation - 54" RGRCP-PTL232.1 ft. MGP - General Photograph - PTL263.1 ft. MGO - General Observation - MH CONN 3:00 OPEN263.1 ft. MGO - General Observation - MH CONN 9:00 ACTIVE263.8 ft. AMH - Downstream Manhole, Survey Ends - 4:20AM

Observation photos (3)

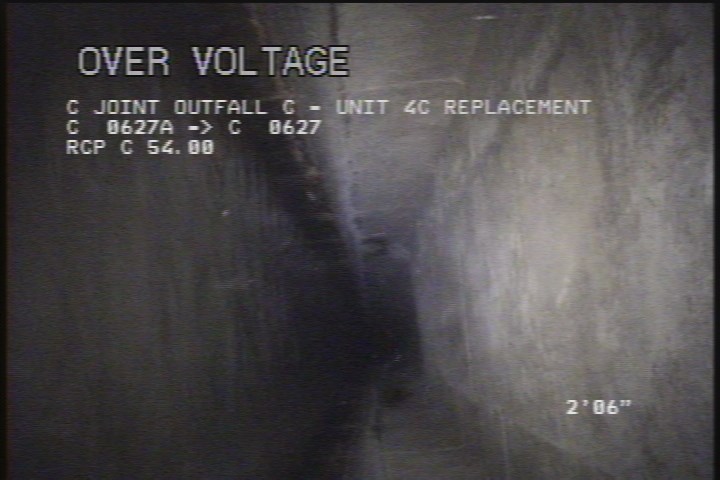

  • General Observation - BOX PIPE UPSTREAM NO SIPHON

    1 ft. - General Observation - BOX PIPE UPSTREAM NO SIPHON

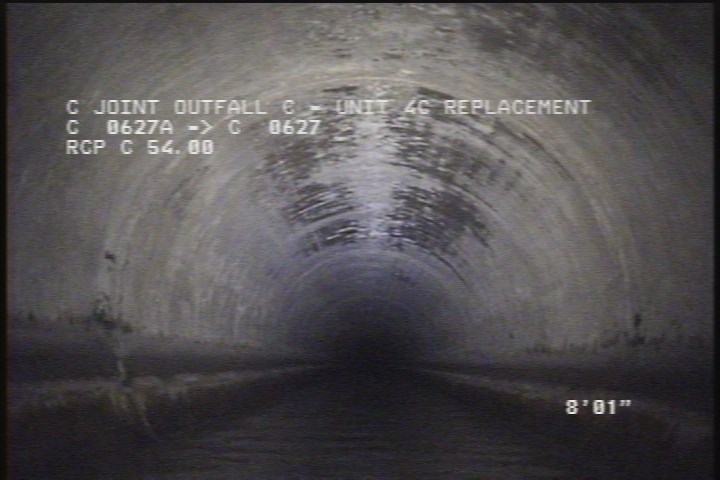

  • General Observation - 54" RGRCP-PTL

    8.1 ft. - General Observation - 54" RGRCP-PTL

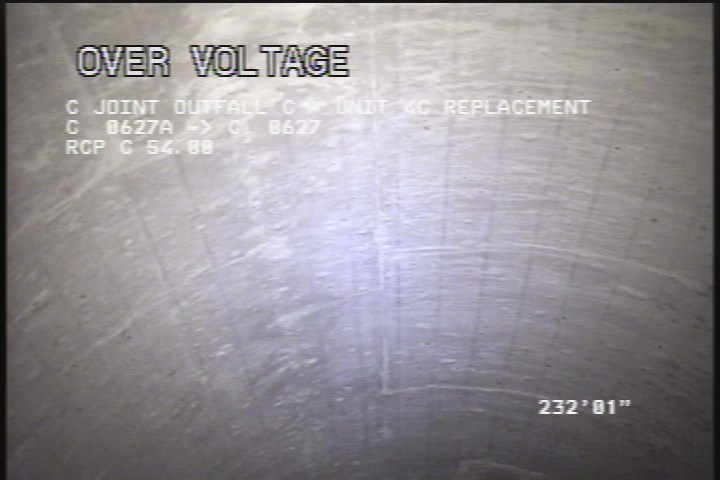

  • General Photograph - PTL

    232.1 ft. - General Photograph - PTL

All inspections of P23103Work order 0728717

Observations (9)

DistanceCodeObservation
8.1MGO54" RGRCP-PTL
0MWL—
0AMH4:00AM
263.8AMH4:20AM
0MWM—
263.1MGOMH CONN 3:00 OPEN
232.1MGPPTL
1MGOBOX PIPE UPSTREAM NO SIPHON
263.1MGOMH CONN 9:00 ACTIVE

Properties (4)

custom_field_three
LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2018-09-14T03:00:00-07:00
