Wastewater/Activity/PacpInspection/1.0Sep 14, 2018, 07:47 AM
Section#1_C 0632_C 0631__9142018__I0067.mp4
- Date
- 09/14/2018
- W/O
- 0728717
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00980
- PipeID
- P23107
- Time
- 12:47 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0067
- Sewer Name
- C JOINT OUTFALL C - UNIT 4C REPLACEMENT
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- 20180914MDM_JOINT_OUTFALL_C_UNIT_4C_REPLACEMENT
- Material
- RGRCP-PTL
- Shape
- Circular
- Height
- 54 in.
- Upstream MH
- C 0632
- Downstream MH
- C 0631
- Dir. of Survey
- Downstream
- Length Surveyed
- 236.9 ft.
- Total Length
- 236.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (3)

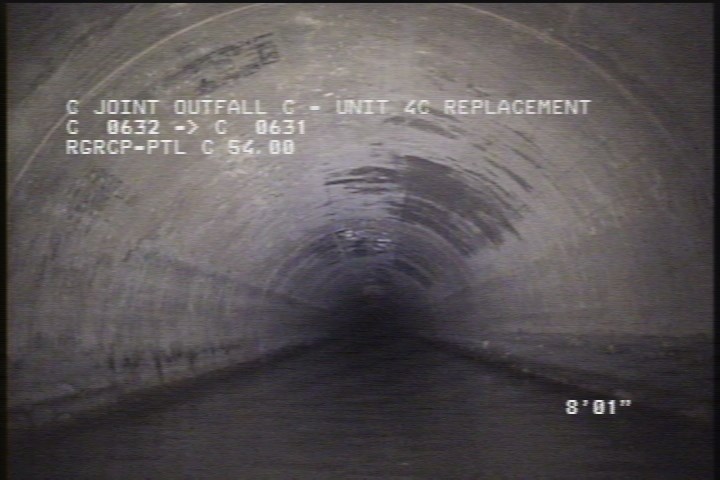

8 ft. - General Observation - 54" RGRCP-PTL

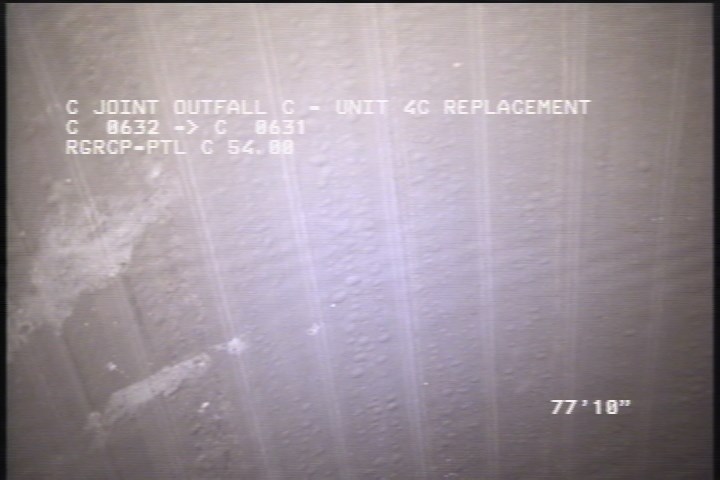

77.9 ft. - General Photograph - PTL

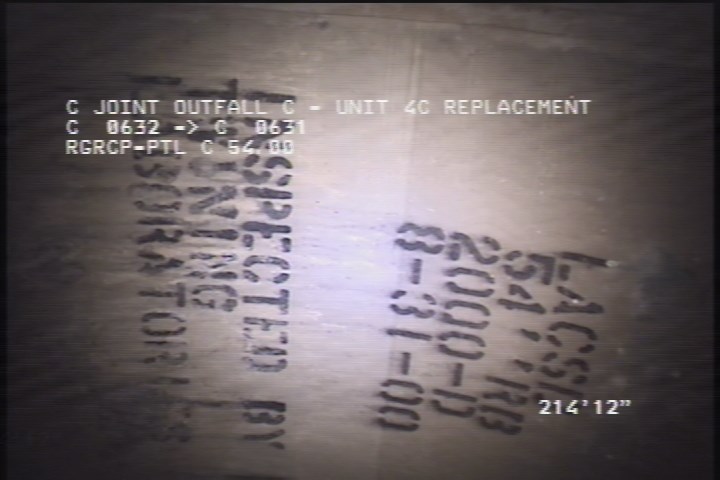

215 ft. - General Photograph
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 77.9 | MGP | PTL |
| 236.9 | AMH | 1:25AM |
| 8 | MGO | 54" RGRCP-PTL |
| 0 | MWM | — |
| 0 | AMH | 1:10AM |
| 215 | MGP | — |
| 0 | MWL | — |
| 236 | MGO | MH CONN 9:00 ACTIVE |
| 0 | MGO | MH CONN 9:00 ACTIVE |
Properties (5)
- custom_field_three
- LINER GOOD COND
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-09-14T00:47:35-07:00
- year_laid
- 20010924
