Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 17, 2018, 04:32 PM

  • D 0066_D 0064_9172018_094906.mp4

Date
09/17/2018
W/O
0726352
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00154
PipeID
P09966
Time
9:32 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7810
Sewer Name
D JOINT OUTFALL D - UNIT 4
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20180913DF_JOINT_OUTFALL_D_UNIT_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
D 0066
Downstream MH
D 0064
Dir. of Survey
Downstream
Length Surveyed
2.2 ft.
Total Length
2.2 ft.
Structural Index
3
Structural Quick
5132
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole D 0066 to D 0064
MH: D 0066MH: D 0064downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:34 AM0.1 ft. MWL - Water Level, 30 %of cross sectional area0.1 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 65% MAG2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. MGP - General Photograph2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES2.1 ft. MGP - General Photograph2.1 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)2.2 ft. AMH - Downstream Manhole, Survey Ends - 9:58 AM

Observation photos (7)

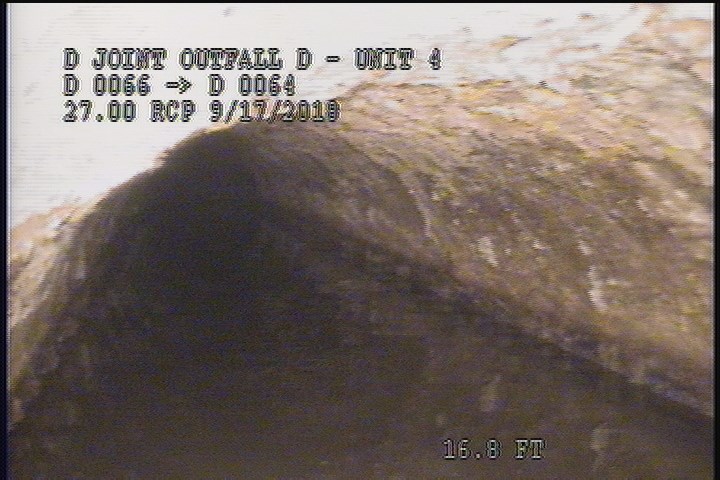

  • Water Mark, 35 %of cross sectional area

    0.1 ft. - Water Mark, 35 %of cross sectional area

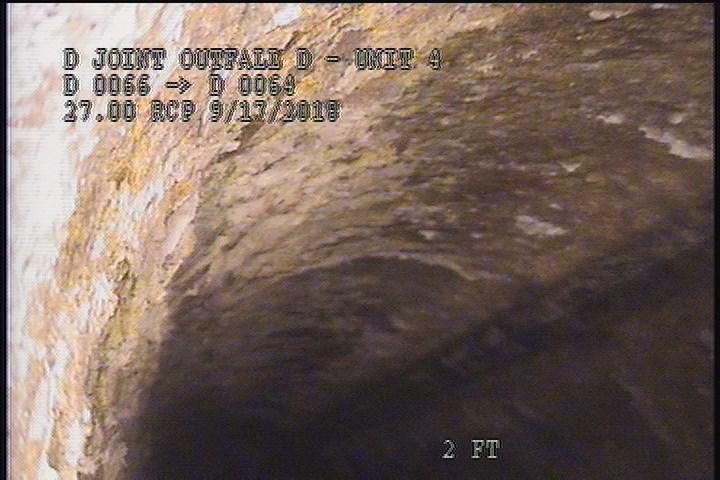

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 65% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 65% MAG

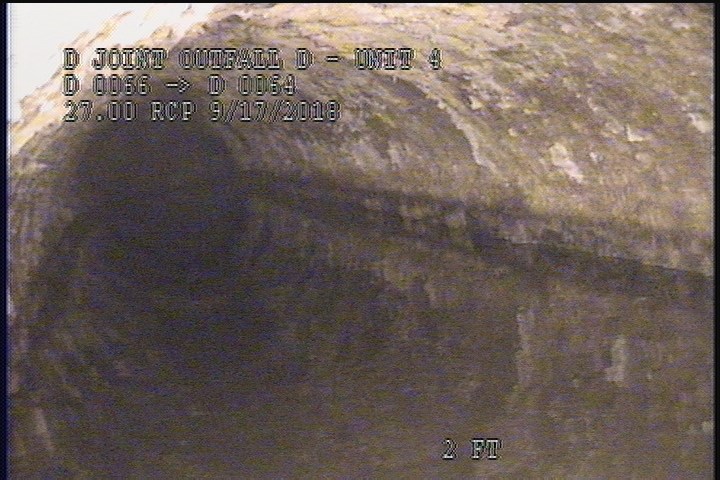

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

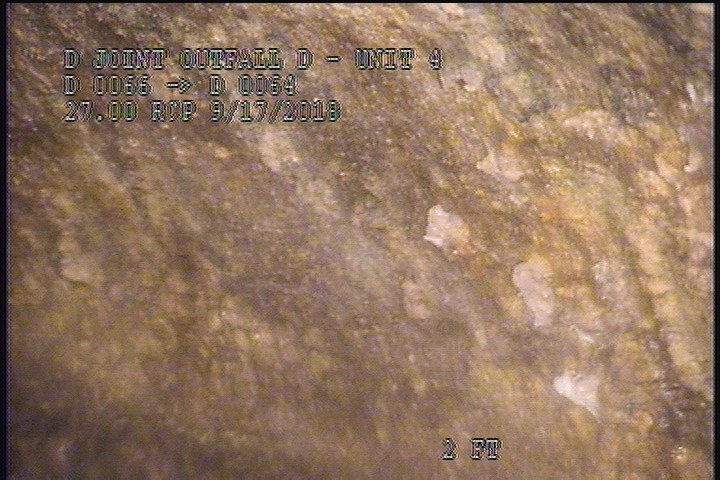

  • General Photograph

    2 ft. - General Photograph

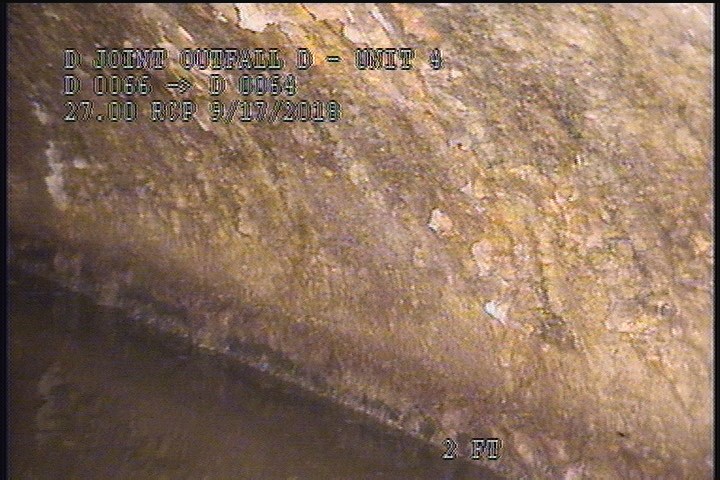

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

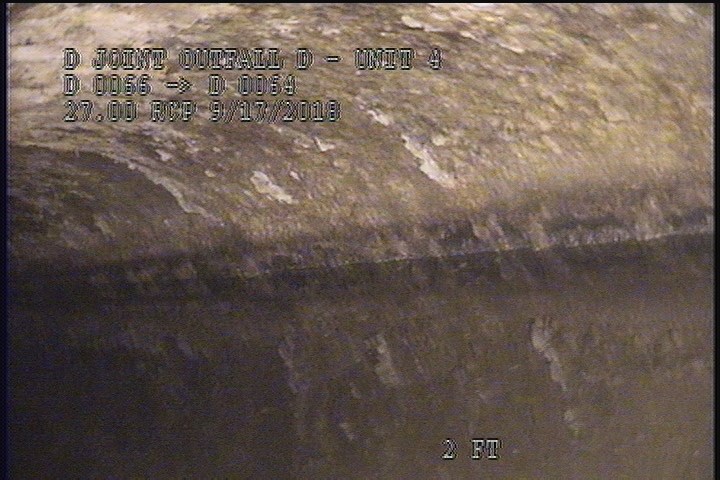

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

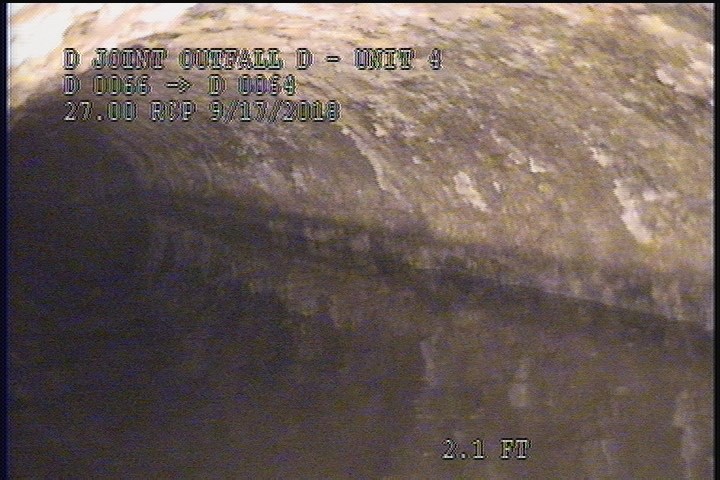

  • General Photograph

    2.1 ft. - General Photograph

All inspections of P09966Work order 0726352

Observations (12)

DistanceCodeObservation
2SZ65% MAG
2.1MGP—
2SAP—
0.1MWL—
0AMH9:34 AM
2.2AMH9:58 AM
0.1MWM—
2MGP—
2SRV—
2SAV—
2SSS—
2.1MGOGREASE THROUGHOUT THE REACH (5%)

Properties (3)

custom_field_two
5
customer
LACSD
datetime
2018-09-17T09:32:54-07:00
