Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 14, 2018, 03:27 PM

  • D 0068_D 0067_9142018_093632.mp4

Date
09/14/2018
W/O
0726352
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00154
PipeID
P09968
Time
8:27 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7809
Sewer Name
D JOINT OUTFALL D - UNIT 4
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20180913DF_JOINT_OUTFALL_D_UNIT_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
D 0068
Downstream MH
D 0067
Dir. of Survey
Downstream
Length Surveyed
533 ft.
Total Length
533 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole D 0068 to D 0067
MH: D 0068MH: D 0067downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 8:58 AM2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG41.7 ft. MGP - General Photograph141.5 ft. MGP - General Photograph284.7 ft. MGP - General Photograph342.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"371.4 ft. MGP - General Photograph446 ft. MGP - General Photograph525.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish525.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 85% MAG525.5 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active527.2 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach529.6 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)533 ft. AMH - Downstream Manhole, Survey Ends - 10:06 AM

Observation photos (8)

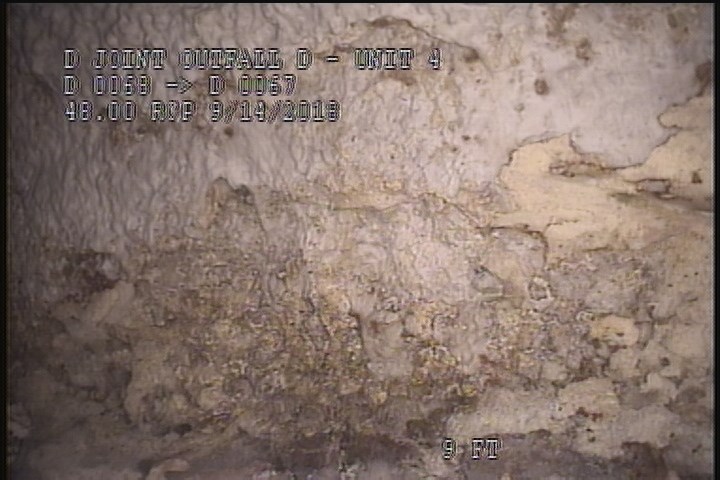

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

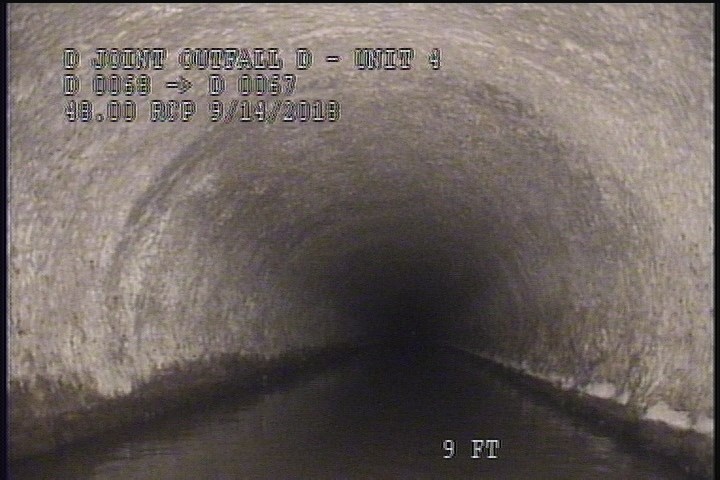

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

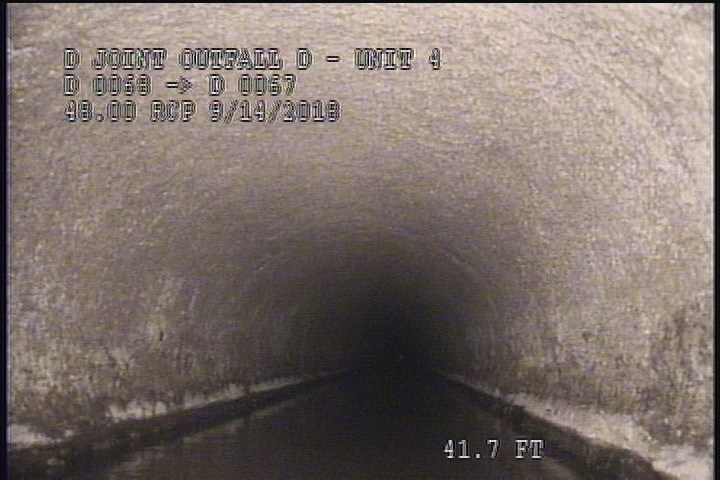

  • General Photograph

    41.7 ft. - General Photograph

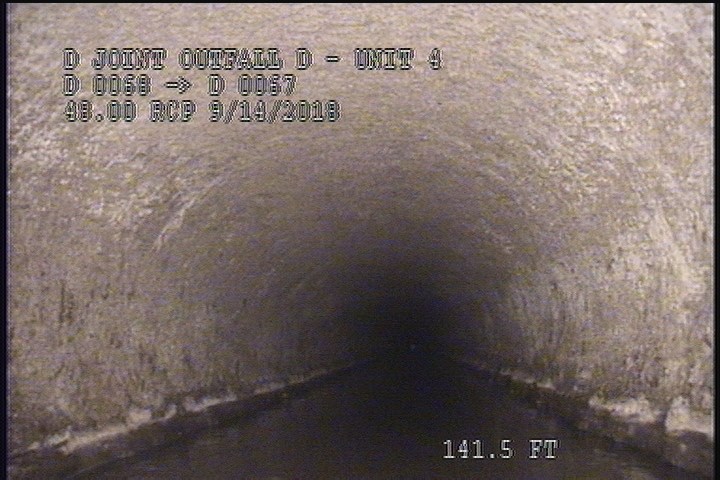

  • General Photograph

    141.5 ft. - General Photograph

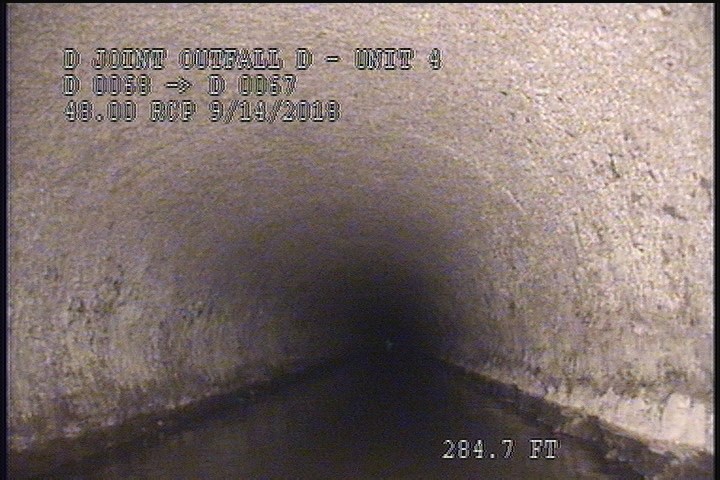

  • General Photograph

    284.7 ft. - General Photograph

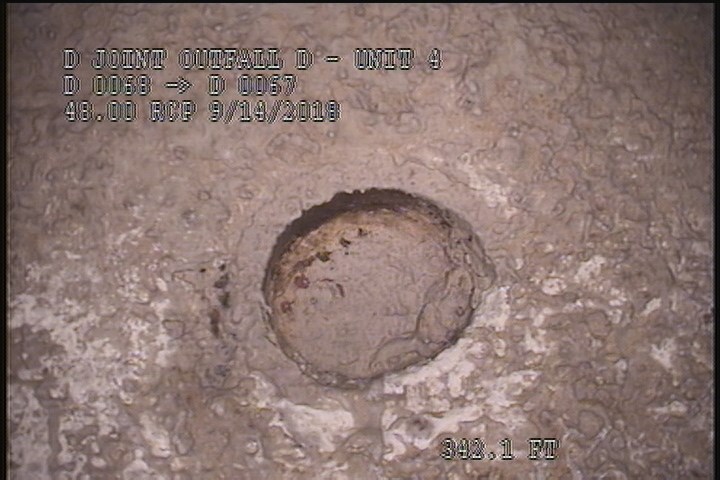

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"

    342.1 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"

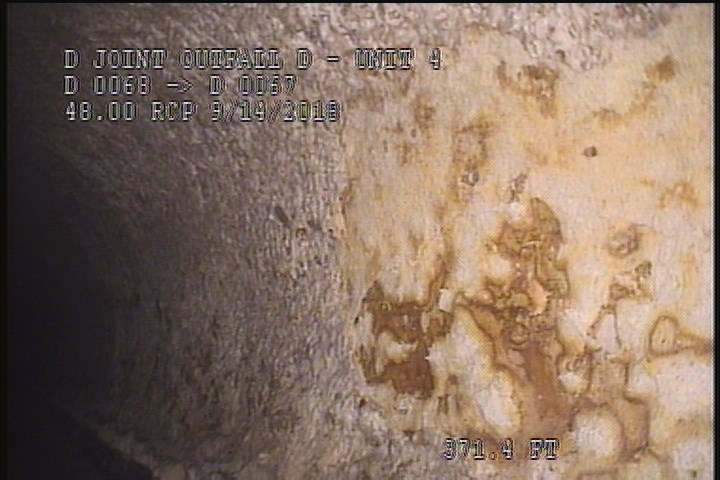

  • General Photograph

    371.4 ft. - General Photograph

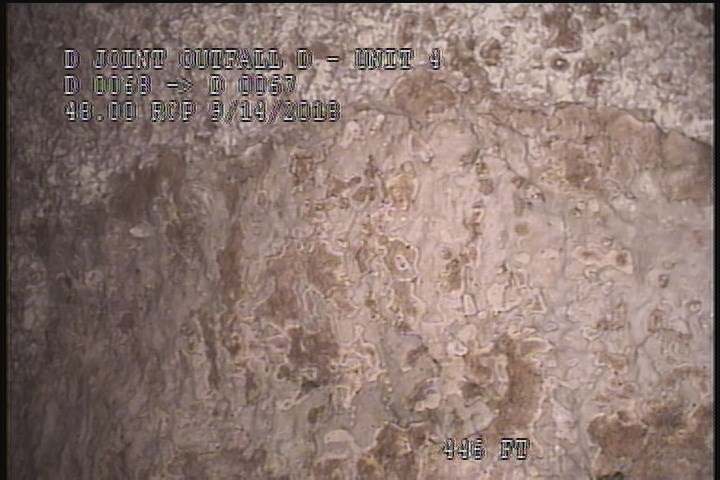

  • General Photograph

    446 ft. - General Photograph

All inspections of P09968Work order 0726352

Observations (17)

DistanceCodeObservation
529.6MGOGREASE THROUGHOUT THE REACH (5%)
284.7MGP—
446MGP—
0MWL—
2SAV—
0MWM—
371.4MGP—
0AMH8:58 AM
533AMH10:06 AM
525.1SAV—
342.1TFC—
141.5MGP—
525.1SZ85% MAG
525.5MGOConn. @ Mh, 9 O' Clock. Active
2SZ85% MAG
41.7MGP—
527.2MGOPeeling & Flaking Throughout The Reach

Properties (4)

additional_info
ON SCREEN TAPE NUMBER IS WRONG. CORRECT TAPE NUMBER IS G7809
custom_field_two
4
customer
LACSD
datetime
2018-09-14T08:27:48-07:00
