Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 13, 2018, 03:43 PM

  • D 0072_D 0071_9132018_100146.mp4

Date
09/13/2018
W/O
0726351
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00154
PipeID
P09972
Time
8:43 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7808
Sewer Name
D JOINT OUTFALL D - UNIT 4
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20180913DF_JOINT_OUTFALL_D_UNIT_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
D 0072
Downstream MH
D 0071
Dir. of Survey
Downstream
Length Surveyed
149 ft.
Total Length
149 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole D 0072 to D 0071
MH: D 0072MH: D 0071downstream0 ft. AMH - Upstream Manhole, Survey Begins - 8:47 AM0.1 ft. MWL - Water Level, 20 %of cross sectional area0.1 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG33.9 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start33.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start75.4 ft. MGP - General Photograph144.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish144.8 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% MAG144.8 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach144.8 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish144.8 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)149 ft. AMH - Downstream Manhole, Survey Ends - 10:15 AM

Observation photos (3)

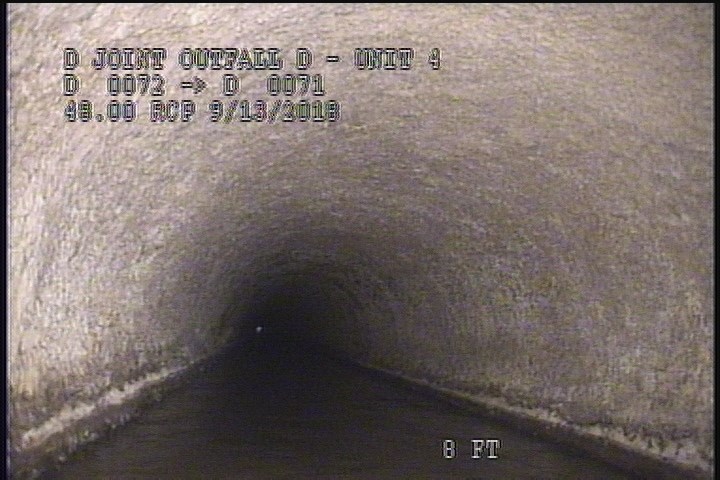

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

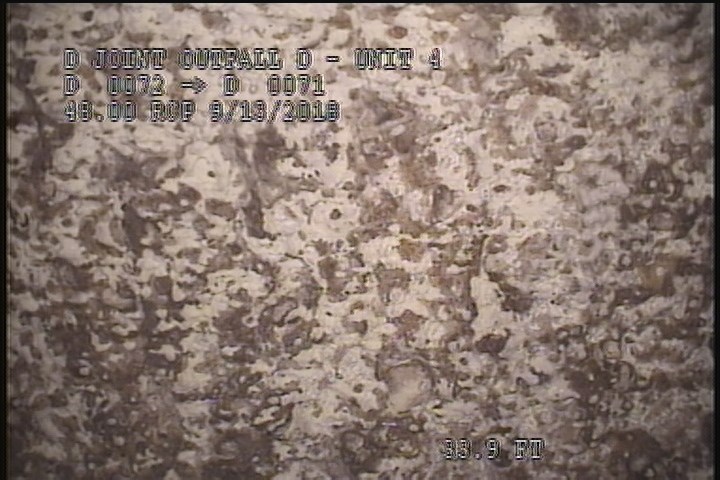

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    33.9 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

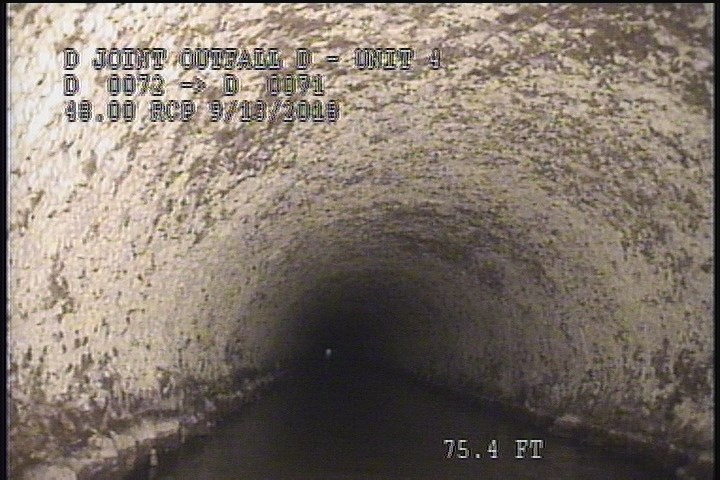

  • General Photograph

    75.4 ft. - General Photograph

All inspections of P09972Work order 0726351

Observations (13)

DistanceCodeObservation
144.8SAV—
75.4MGP—
33.9SRV—
0.1MWL—
33.9SAV—
0.1MWM—
2SZ85% MAG
144.8SZ75% MAG
149AMH10:15 AM
144.8MGOPeeling & Flaking Throughout The Reach
144.8SRV—
144.8MGOGREASE THROUGHOUT THE REACH (5%)
0AMH8:47 AM

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2018-09-13T08:43:54-07:00
