  • 18 0990_18 0989 _20042017_040747.mp4

Date
04/20/2017
W/O
630156
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00677
PipeID
P14844
Time
4:06 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4270
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 1
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_630156_TV18008_APR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
18 0990
Downstream MH
18 0989
Dir. of Survey
Downstream
Length Surveyed
349 ft.
Total Length
349 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
3211
O&M Rating
7
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 18 0990 to 18 0989
MH: 18 0990MH: 18 0989downstream0 ft. MGO - General Observation - LINER0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 09902.6 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.6 ft. MGO - General Observation - MAGNESIUM COATING START17.3 ft. OBN - Obstacles Construction Debris, 20 %of cross sectional area, from 04 to 08 o'clock45.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"46.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"123.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"157.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"179.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"274.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"311.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"348.8 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish348.8 ft. MGO - General Observation - MAGNESIUM COATING END349 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK ACTIVE349 ft. AMH - Downstream Manhole, Survey Ends - 18 0989

Observation photos (1)

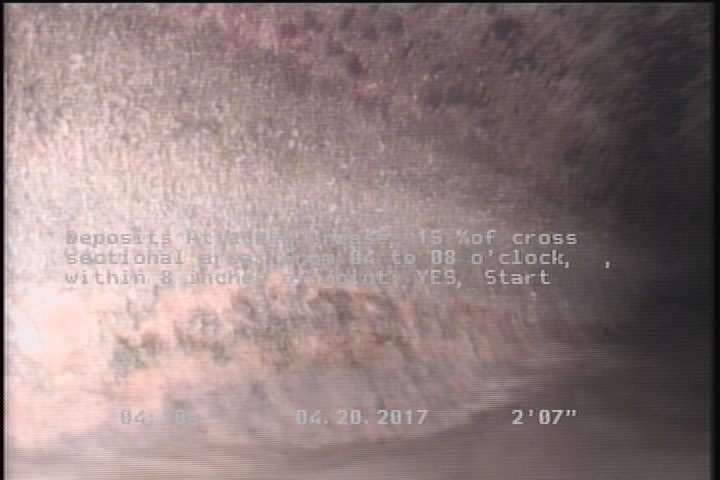

  • Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.6 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P14844Work order 630156

Observations (19)

DistanceCodeObservation
0MGOLINER
157.9TFA—
0MWL—
0VC—
311.9TFA—
45.5TFA—
348.8DAGS—
0MWM—
2.6DAGS—
349MGOLATERAL AT MH 3 OCLOCK ACTIVE
349AMH18 0989
0AMH18 0990
46.6TFA—
2.6MGOMAGNESIUM COATING START
274.6TFA—
348.8MGOMAGNESIUM COATING END
17.3OBN—
123.8TFA—
179.3TFA—

Properties (6)

additional_info
SC306850
custom_field_two
4
customer
LACSD
datetime
2017-04-20T04:06:54-07:00
lining
CIPP
year_laid
38344
