Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 19, 2017, 07:19 AM

  • 02 0209_02 0208_7192017_002404.mp4

Date
07/19/2017
W/O
0647471
Weather
Dry
Operator/Surveyor
Reveles
Sewer ID
Z00251
PipeID
P04542
Time
12:19 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0594
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
25
Purpose
Capital Improvement Program Assesment
Project
20170714VMR_DOWNEY_BELLFOWER_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
02 0209
Downstream MH
02 0208
Dir. of Survey
Downstream
Length Surveyed
235.8 ft.
Total Length
235.8 ft.
Structural Index
2
Structural Quick
3227
Structural Rating
23
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole 02 0209 to 02 0208
MH: 02 0209MH: 02 0208downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:55 pm0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 8"53.3 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 4"55.6 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES72.3 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 4"80.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES92.7 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES103.3 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES111.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES113.9 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 4"116 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 4" - Capped145.2 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES152.8 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 4"176.8 ft. CC - Crack Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES179.6 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES180.8 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4" - Open188.4 ft. CC - Crack Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES194.7 ft. CC - Crack Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES199.4 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 4"227 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 4"229.1 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES231.8 ft. CM - Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES233.4 ft. MGO - General Observation - Grease layer from 8 to 9 and 3 to 4 throught the reach above water line233.4 ft. SZC - Surface Other Chemical, from 09 to 03 o'clock, within 8 inches of joint: YES - Mag coat throughout the reach235.4 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 4"235.8 ft. AMH - Upstream Manhole, Survey Ends - 12:47 am

Observation photos (1)

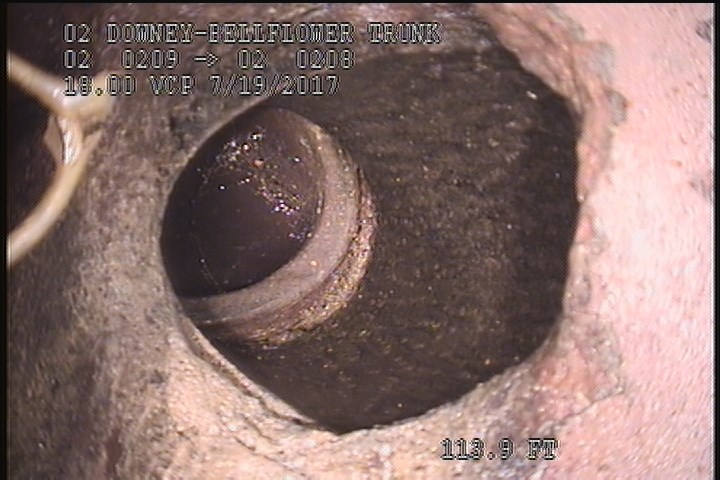

  • Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 4"

    113.9 ft. - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 4"

All inspections of P04542Work order 0647471

Observations (28)

DistanceCodeObservation
233.4MGOGrease layer from 8 to 9 and 3 to 4 throught the reach above water line
199.4TFC—
0MWM—
55.6CL—
113.9TB—
92.7CL—
0AMH11:55 pm
229.1CL—
111.1CL—
231.8CM—
0MWL—
0TFA—
116TFCCapped
180.8TFOpen
80.5CL—
103.3CL—
235.4TFA—
176.8CC—
53.3TFC—
152.8TFC—
145.2CL—
235.8AMH12:47 am
233.4SZCMag coat throughout the reach
179.6CM—
227TFC—
188.4CC—
72.3TFC—
194.7CC—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-07-19T00:19:48-07:00
