Wastewater/Activity/PacpInspection/1.0Jul 17, 2017, 03:22 PM
A 0303_A 1226_7172017_090747.mp4
- Date
- 07/17/2017
- W/O
- 0640653
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00325
- PipeID
- P21654
- Time
- 8:22 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7461
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- LA PUENTE
- Loc. details
- Yard
- Location Code
- Y
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- 20170713SHO_JOA1A_SAN_JOSE_CREEK_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- A 0303
- Downstream MH
- A 1226
- Dir. of Survey
- Downstream
- Length Surveyed
- 639.2 ft.
- Total Length
- 639.2 ft.
- Structural Index
- 2
- Structural Quick
- 3312
- Structural Rating
- 11
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (3)

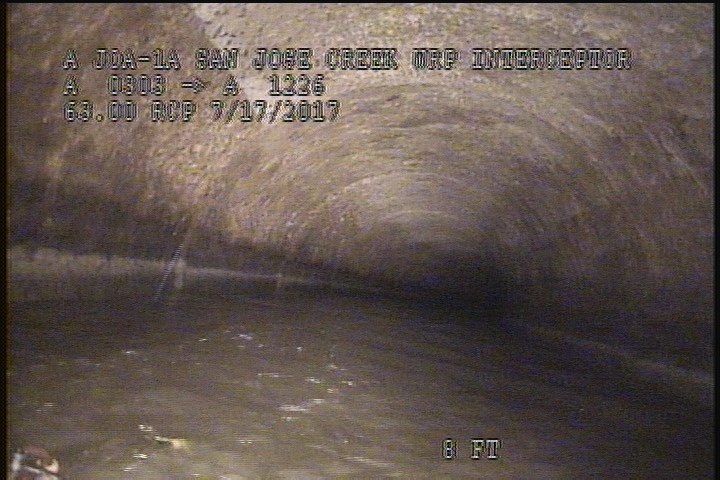

8 ft. - Surface Roughness Increased, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

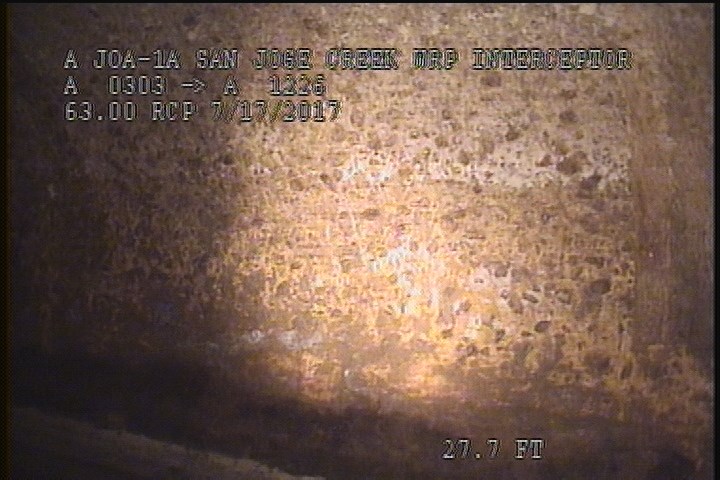

27.7 ft. - Surface Aggregate Projecting, from 08 to 12 o'clock, within 8 inches of joint: YES, Start

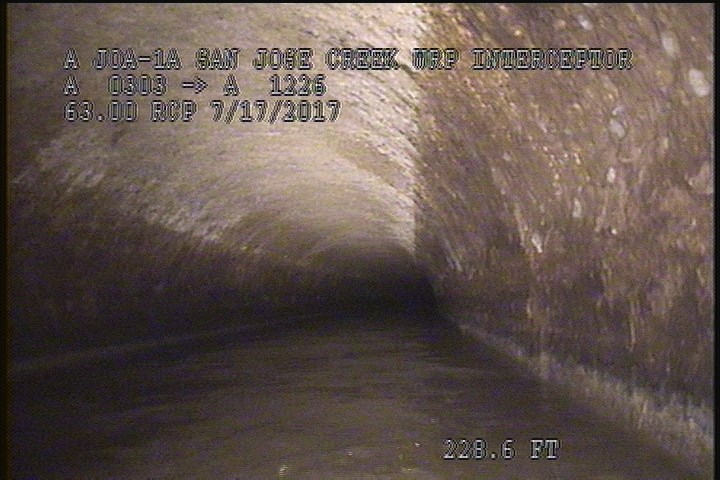

228.6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 8 | MGO | MAG COAT 50% |
| 8 | SRI | — |
| 639.2 | AMH | 1010 |
| 609.9 | SAP | — |
| 639.2 | SAP | — |
| 0 | MWM | — |
| 228.6 | SAP | — |
| 384.4 | SRI | — |
| 27.7 | SAP | — |
| 27.7 | SRI | — |
| 0 | MWL | — |
| 0 | AMH | 0900 |
| 228.6 | SAP | — |
| 609.9 | SRI | — |
| 384.4 | SAP | — |
Properties (5)
- additional_info
- RFIR/MOST OF THIS REACH IS ON DVD # G7461 THE REST IS ON G7461A
- custom_field_three
- AGGREGATE PROJECTING & SURFACE ROUGHNNESS INCREASE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-17T08:22:21-07:00
