Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 4, 2017, 12:29 PM

  • 02 0722_02 0721_04122017_043032.mp4

Date
12/04/2017
W/O
674429
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00294
PipeID
P03276
Time
4:29 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5258
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29
Purpose
Routine Assessment
Project
WO_674429_TV02351_DEC2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0722
Downstream MH
02 0721
Dir. of Survey
Downstream
Length Surveyed
368.3 ft.
Total Length
368.3 ft.
Structural Index
4
Structural Quick
4H3D
Structural Rating
256
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
256
Pipe schematic from manhole 02 0722 to 02 0721
MH: 02 0722MH: 02 0721downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 07220 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK16.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start51.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"55.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"136.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish136.6 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start147.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"149.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"268.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"271.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"368.3 ft. AMH - Downstream Manhole, Survey Ends - 02 0721368.3 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

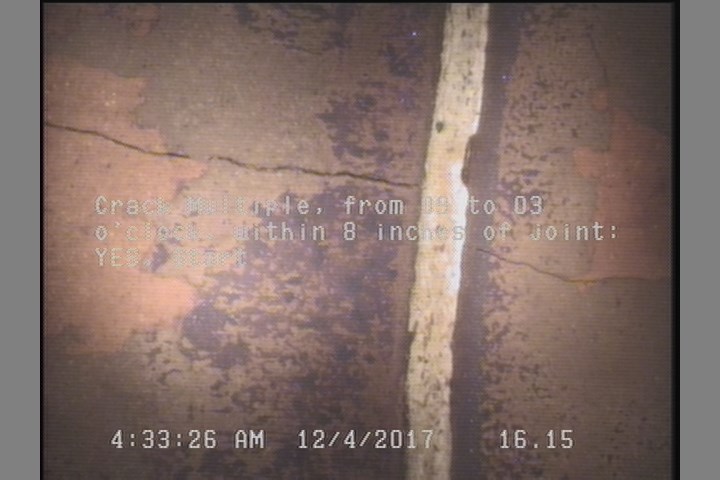

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    16.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

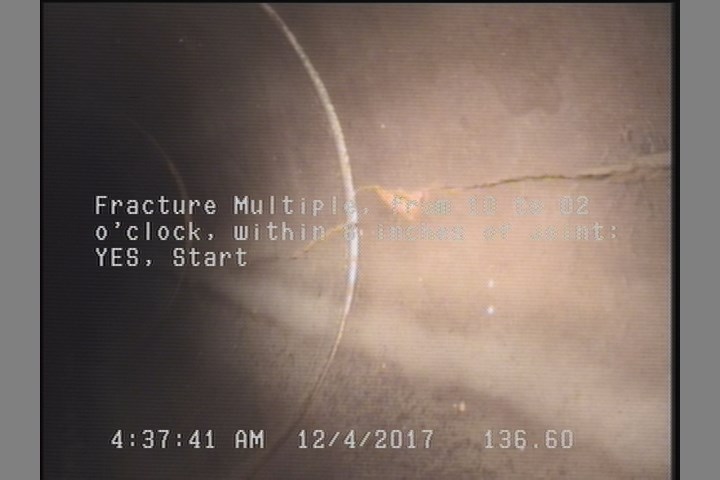

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    136.6 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P03276Work order 674429

Observations (15)

DistanceCodeObservation
271.4TFC—
136.6FM—
0AMH02 0722
0MWL—
16.2CM—
149.1TFC—
368.3AMH02 0721
268.3TFC—
147.4TFC—
0MWM—
368.3FM—
51.5TFA—
0.1MGOCONNECTION AT MH 3 O'CLOCK
55.4TFC—
136.5CM—

Properties (4)

additional_info
SC346287
custom_field_two
2
customer
LACSD
datetime
2017-12-04T04:29:37-08:00
