Wastewater/Activity/PacpInspection/1.0Nov 28, 2017, 11:46 AM
02 1305_02 1304_28112017_034558.mp4
- Date
- 11/28/2017
- W/O
- 673943
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00238
- PipeID
- P03824
- Time
- 3:46 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5052
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_673943_TV02329_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1305
- Downstream MH
- 02 1304
- Dir. of Survey
- Downstream
- Length Surveyed
- 335.1 ft.
- Total Length
- 335.2 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 198
- O&M Index
- 1
- O&M Quick
- 311G
- O&M Rating
- 45
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 243
Observation photos (3)

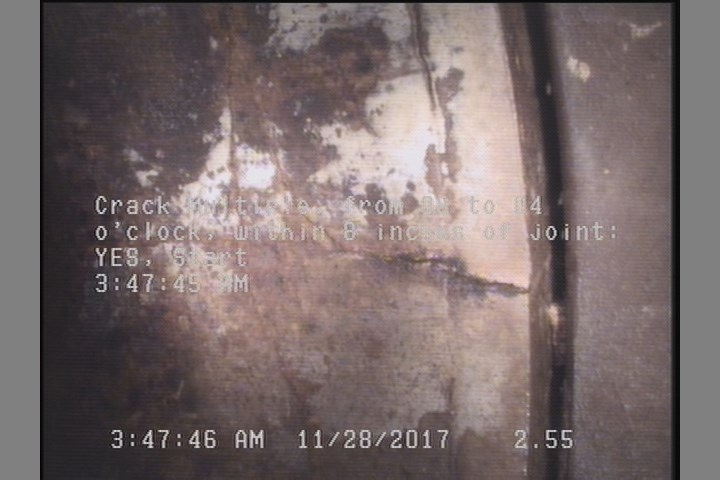

2.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

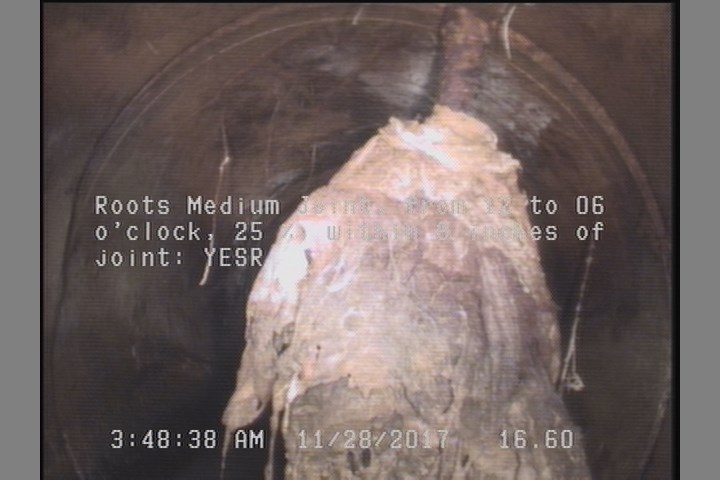

16.6 ft. - Roots Medium Joint, from 12 to 06 o'clock, 25 %, within 8 inches of joint: YESR

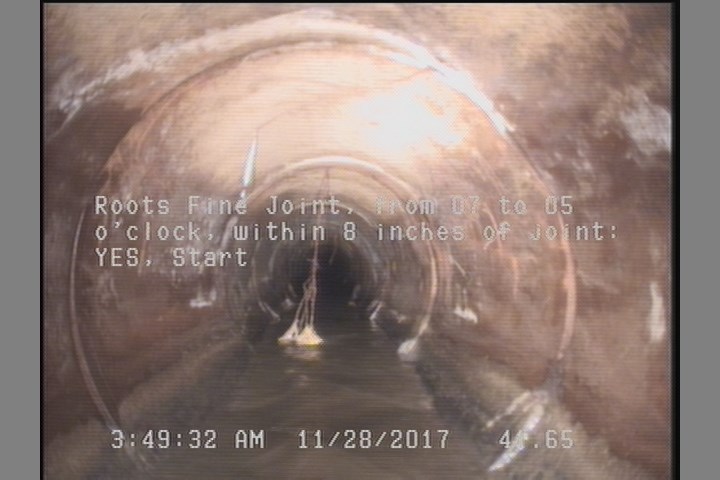

41.7 ft. - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 14.3 | RFJ | — |
| 98.1 | TFC | — |
| 2.6 | CM | — |
| 249.9 | TFA | — |
| 149.2 | TFA | — |
| 16.6 | RMJ | — |
| 102.3 | TFA | — |
| 246.3 | RFJ | — |
| 0 | AMH | 02 1305 |
| 0 | MWL | — |
| 200.7 | TF | — |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 41.7 | RFJ | — |
| 331 | CM | — |
| 49.5 | TFC | — |
| 297.3 | TF | — |
| 335.2 | AMH | 02 1304 |
Properties (4)
- additional_info
- SC346281
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-11-28T03:46:10-08:00
