Wastewater/Activity/PacpInspection/1.0May 17, 2017, 07:57 AM
A 0662_A 0661_20170517_010334.mp4
- Date
- 05/17/2017
- W/O
- 607686
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00316
- PipeID
- P07871
- Time
- 12:57 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4528
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- CITY OF INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_607686_TV21041_MAR2017
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- A 0661
- Downstream MH
- A 0662
- Dir. of Survey
- Upstream
- Length Surveyed
- 4 ft.
- Total Length
- 4 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 5121
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

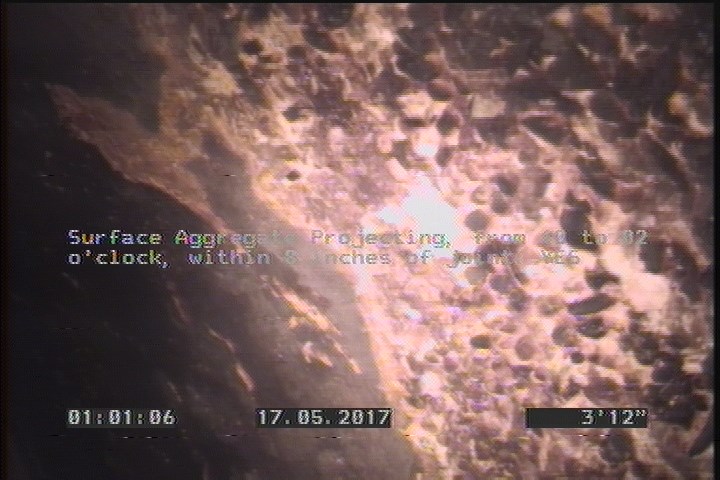

4 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

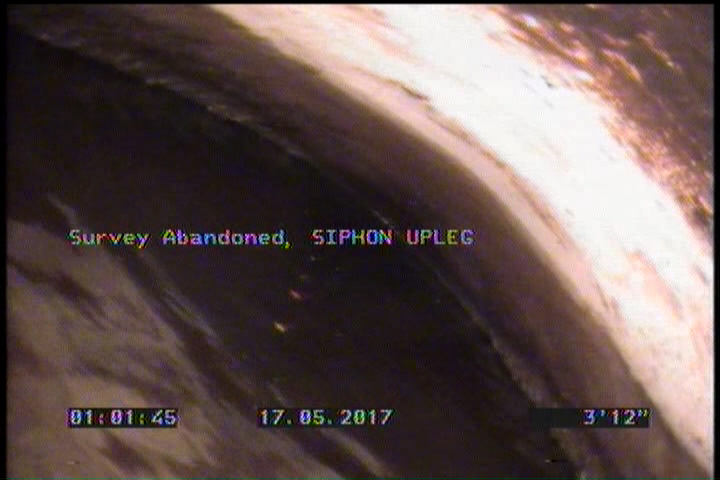

4 ft. - Survey Abandoned - SIPHON UPLEG

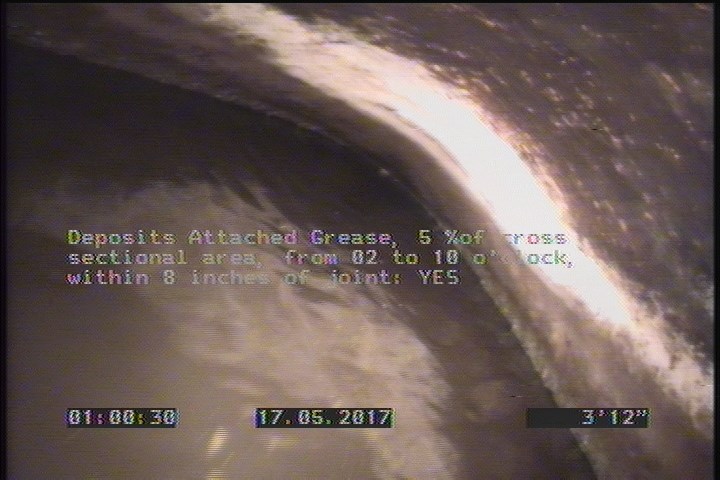

4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 4 | SAP | — |
| 4 | MSA | SIPHON UPLEG |
| 0 | AMH | A 0661 |
| 4 | DAGS | — |
Properties (4)
- additional_info
- SC340742
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-17T00:57:43-07:00
