Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 8, 2018, 08:47 PM

  • Section#1_C 0571_A 0831__182018__G6911.mp4

Date
01/08/2018
W/O
0679379
Weather
Light Rain
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00324
PipeID
P23446
Time
12:47 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6911
Sewer Name
A JOA-1A NORTH LONG BEACH INTERCEPTOR
City
LAKEWOOD
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20180108SHO_JOA1A_NORTH_LONG_BEACH_INERCEPTOR
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
C 0571
Downstream MH
A 0831
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole C 0571 to A 0831
MH: C 0571MH: A 0831downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01102.1 ft. FM - Fracture Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES2.1 ft. AMH - Downstream Manhole, Survey Ends - 0120

Observation photos (2)

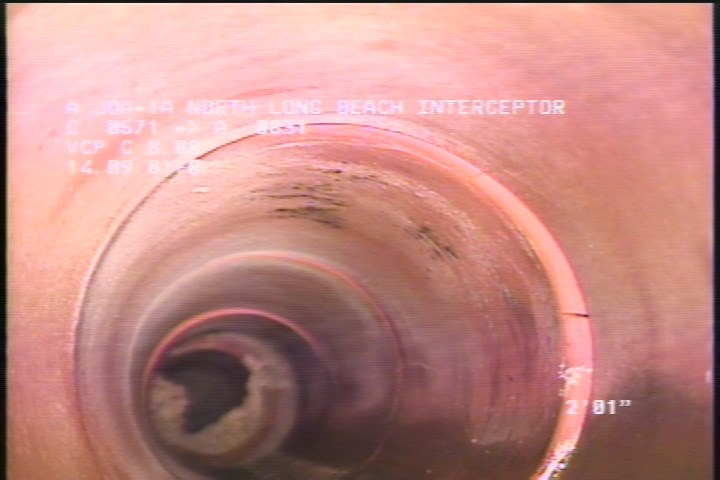

  • Fracture Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES

    2.1 ft. - Fracture Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES

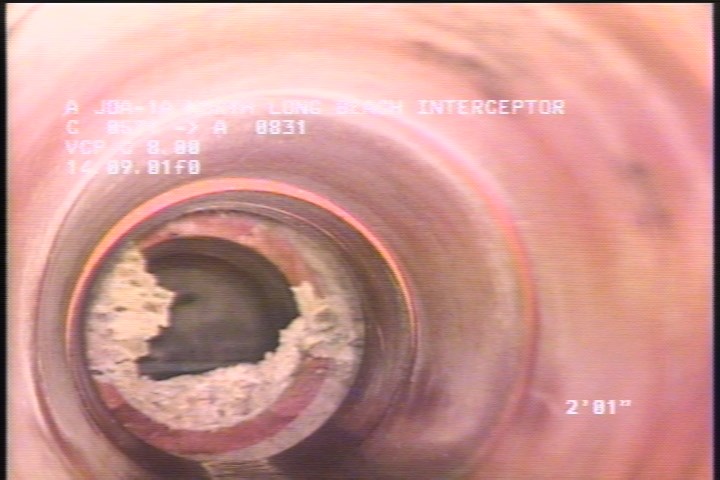

  • Downstream Manhole, Survey Ends - 0120

    2.1 ft. - Downstream Manhole, Survey Ends - 0120

All inspections of P23446Work order 0679379

Observations (5)

DistanceCodeObservation
0MWM—
2.1FM—
0MWL—
2.1AMH0120
0AMH0110

Properties (5)

additional_info
RFIR
custom_field_three
CRACKS & FRACTURES
custom_field_two
3
customer
LACSD
datetime
2018-01-08T12:47:39-08:00
