Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 13, 2017, 06:25 AM

  • F 0147_F 0333 _09132017_000630.mp4

Date
09/12/2017
W/O
651806
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00037
PipeID
P26386
Time
11:25 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4969
Sewer Name
F JOINT OUTFALL F - UNIT 3B
City
NORWALK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
39
Purpose
Routine Assessment
Project
WO_651806_TV02231_AUG2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
63 in.
Width
63 in.
Upstream MH
F 0147
Downstream MH
F 0333
Dir. of Survey
Downstream
Length Surveyed
613.9 ft.
Total Length
613.9 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole F 0147 to F 0333
MH: F 0147MH: F 0333downstream0 ft. MWL - Water Level, 50 %of cross sectional area0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - F 01476 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start6 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start97.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"300.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"613.9 ft. MGO - General Observation - CONNECTION AT 9 OC613.9 ft. AMH - Downstream Manhole, Survey Ends - F 0333613.9 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish613.9 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

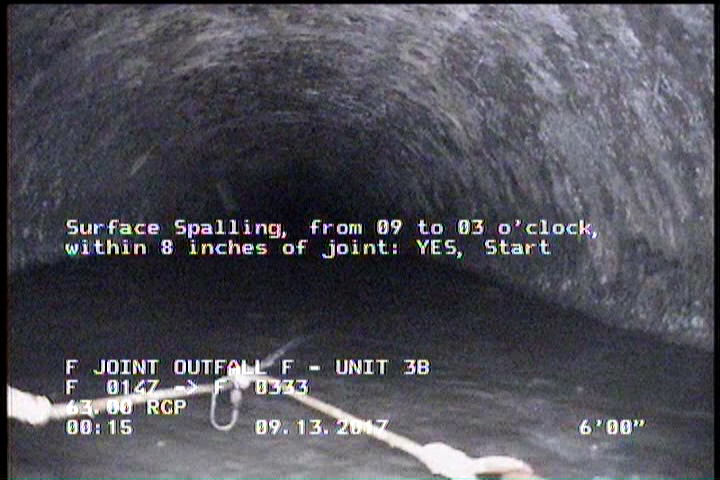

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P26386Work order 651806

Observations (11)

DistanceCodeObservation
0MWL—
6SSS—
97.1TB—
6SAP—
613.9MGOCONNECTION AT 9 OC
300.1TF—
613.9AMHF 0333
0MWM—
613.9SSS—
0AMHF 0147
613.9SAP—

Properties (4)

additional_info
SC345961
custom_field_two
3
customer
LACSD
datetime
2017-09-12T23:25:09-07:00
