Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 29, 2016, 10:26 AM

  • 01 0204_01 0203_29082016_032649.mp4

Date
08/29/2016
W/O
585995
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00202
PipeID
P01246
Time
3:26 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3574
Sewer Name
01 COMPTON AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
WO_585995_TV01012_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0203
Downstream MH
01 0204
Dir. of Survey
Upstream
Length Surveyed
275.8 ft.
Total Length
275.8 ft.
Structural Index
3
Structural Quick
3H22
Structural Rating
142
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
143
Pipe schematic from manhole 01 0203 to 01 0204
MH: 01 0203MH: 01 0204upstream0 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 01 020447.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"59.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"61.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"117.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"140.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"159 ft. RFC - Roots Fine Connection, at 02 o'clock159.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"180.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"198.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"229.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start236 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES238.7 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES244.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"275.8 ft. AMH - Downstream Manhole, Survey Begins - 01 0203275.8 ft. MWM - Water Mark, 35 %of cross sectional area275.8 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK275.8 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (5)

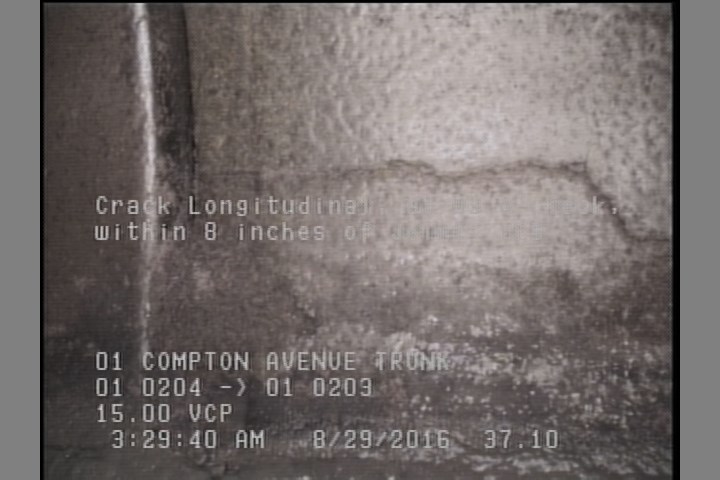

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    37.1 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

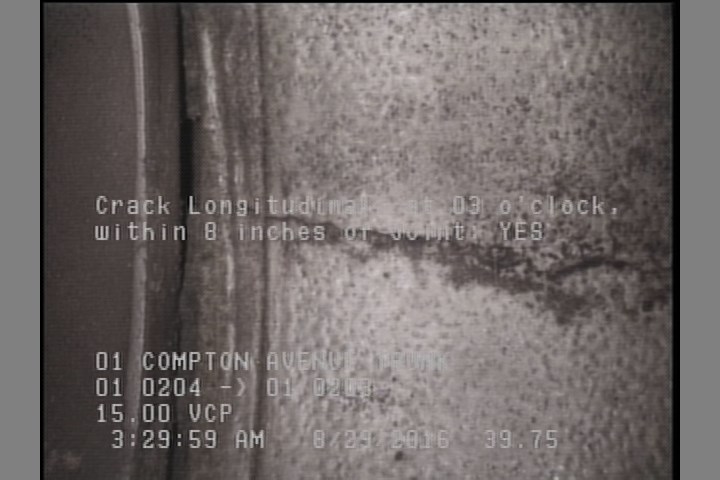

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    39.8 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

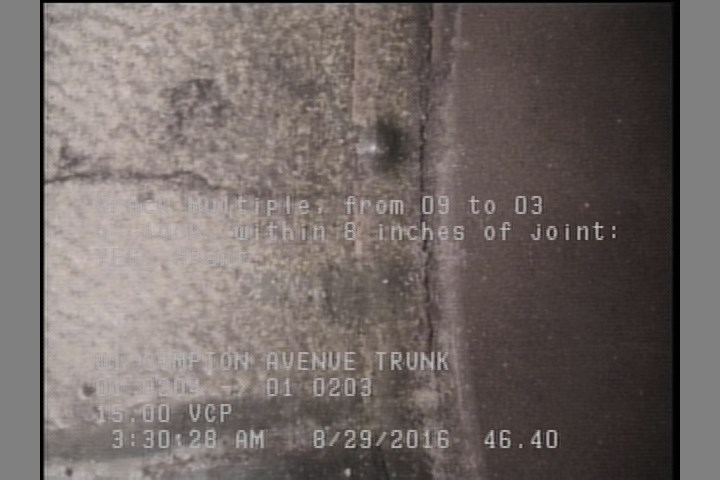

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    46.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

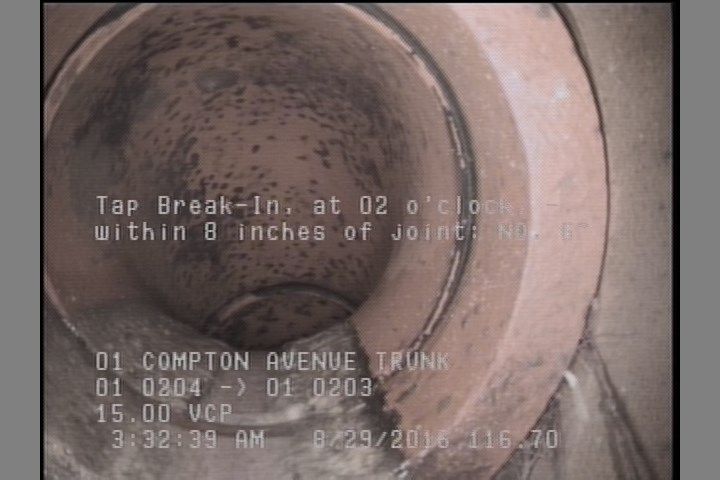

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    116.7 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

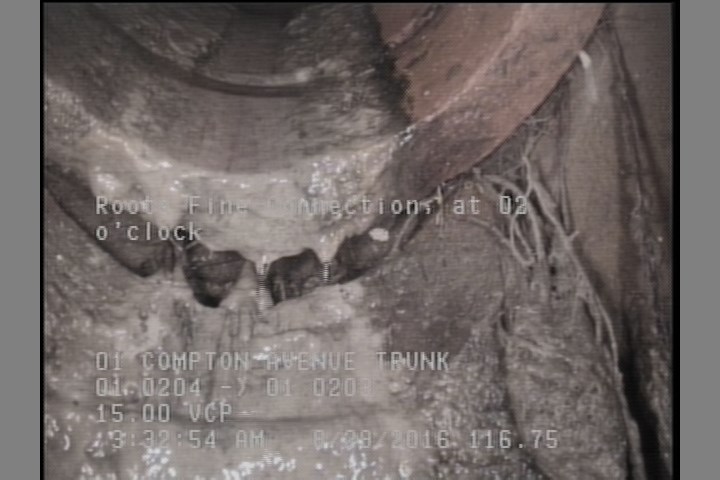

  • Roots Fine Connection, at 02 o'clock

    116.8 ft. - Roots Fine Connection, at 02 o'clock

All inspections of P01246Work order 585995

Observations (19)

DistanceCodeObservation
46.4CM—
216.5TF—
228.5TF—
214.1TF—
157.9TFA—
134.9TF—
77TF—
0AMH01 0203
31.6TF—
116.7TB—
275.8CM—
0MWM—
0MGOLATERAL AT MH 3 OCLOCK
37.1CL—
95.1TFA—
39.8CL—
275.8AMH01 0204
0MWL—
116.8RFC—

Properties (4)

additional_info
SC306162
custom_field_two
3
customer
LACSD
datetime
2016-08-29T03:26:10-07:00
