Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2016, 09:54 AM

  • F_01 COMPTON AVENUE TRUNK_01 0197LOS ANGELES_SI_TapeLocation.mpg

Date
08/30/2016
W/O
585995
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00202
PipeID
P01239
Time
2:54 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3575
Sewer Name
01 COMPTON AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
WO_585995_TV01012_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0197
Downstream MH
01 0196
Dir. of Survey
Downstream
Length Surveyed
216.3 ft.
Total Length
216.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 01 0197 to 01 0196
MH: 01 0197MH: 01 0196downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 01 01974.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start18.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"51.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"53.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"62.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"82.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"109 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"109 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"114.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"120.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"135 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"143.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"164.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"198.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"216.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish216.3 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK216.3 ft. AMH - Downstream Manhole, Survey Ends - 01 0196

Observation photos (2)

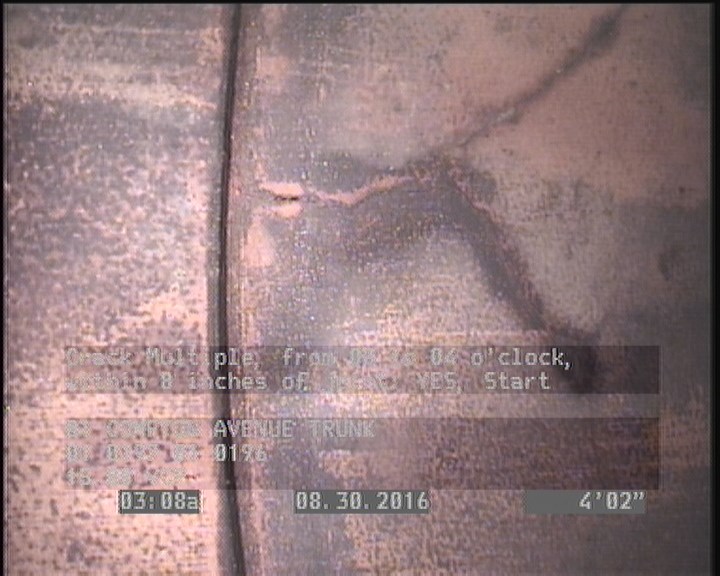

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

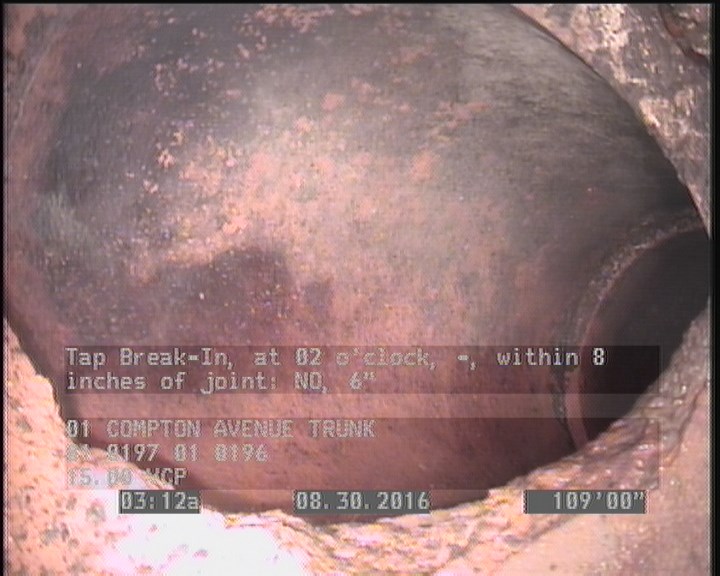

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    109 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P01239Work order 585995

Observations (21)

DistanceCodeObservation
0MWM—
0MWL—
51.1TF—
109TFC—
109TB—
216.3MGOLATERAL AT MH 3 OCLOCK
114.7TFC—
143.7TF—
120.3TF—
0MGOLATERAL AT MH 9 OCLOCK
0AMH01 0197
18.3TF—
164.5TFC—
216.3AMH01 0196
216.2CM—
53.7TF—
62.2TF—
82.8TF—
4.2CM—
135TFC—
198.1TF—

Properties (4)

additional_info
SC306165
custom_field_two
3
customer
LACSD
datetime
2016-08-30T02:54:06-07:00
