Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 6, 2016, 08:50 AM

  • 01 0174_01 0173_06092016_015058.mp4

Date
09/06/2016
W/O
585995
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00202
PipeID
P01204
Time
1:50 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3579
Sewer Name
01 COMPTON AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_585995_TV01012_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0173
Downstream MH
01 0174
Dir. of Survey
Upstream
Length Surveyed
295.1 ft.
Total Length
295.2 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 01 0173 to 01 0174
MH: 01 0173MH: 01 0174upstream0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 01 01746 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"6 ft. RFL - Roots Fine Lateral, at 10 o'clock15.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"21.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"54.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"80 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"89.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"104.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"112.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"115.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"139.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"169.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"174.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"183.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"204 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"216.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"230 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"242.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"256.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"266.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"268.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"277.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"278.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start285 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES295.2 ft. MWM - Water Mark, 10 %of cross sectional area295.2 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH295.2 ft. MWL - Water Level, 5 %of cross sectional area295.2 ft. AMH - Downstream Manhole, Survey Begins - 01 0173

Observation photos (3)

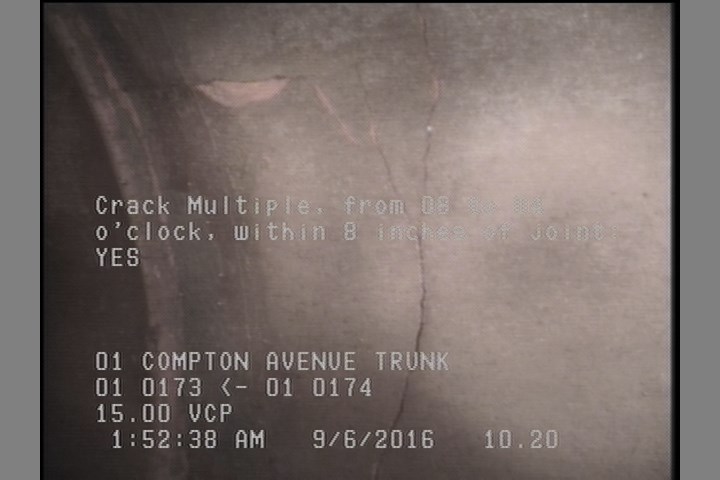

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    10.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

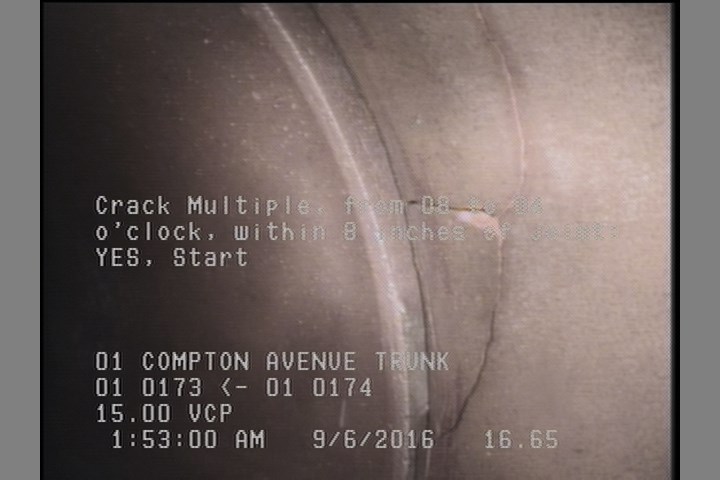

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    16.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

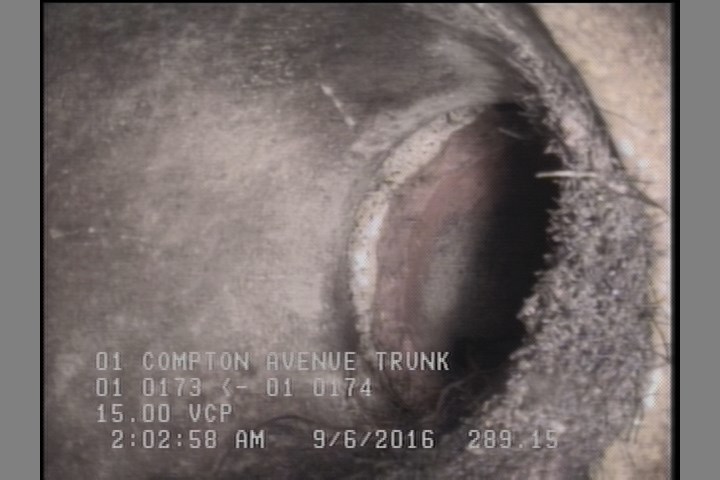

  • Roots Fine Lateral, at 10 o'clock

    289.2 ft. - Roots Fine Lateral, at 10 o'clock

All inspections of P01204Work order 585995

Observations (30)

DistanceCodeObservation
0MWM—
155.4TFC—
179.7TFC—
295.2CM—
215.2TFC—
126TF—
0MGOCAPPED LATERAL 9 O'CLOCK @ MH
91.2TF—
52.7TFC—
10.2CM—
289.2TF—
18.1TFC—
273.9TF—
182.6TF—
295.2AMH01 0174
26.7TFC—
39TF—
240.9TFC—
0MWL—
205.4TF—
279.6TF—
0AMH01 0173
79TFC—
190.8TFC—
120.3TF—
29TFC—
111.8TFC—
65.2TF—
16.7CM—
289.2RFL—

Properties (4)

additional_info
SC306169
custom_field_two
3
customer
LACSD
datetime
2016-09-06T01:50:39-07:00
