Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 6, 2016, 11:05 AM

  • 01 0199_01 0198_06092016_040553.mp4

Date
09/06/2016
W/O
585995
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00202
PipeID
P01241
Time
4:05 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3579
Sewer Name
01 COMPTON AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
WO_585995_TV01012_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0199
Downstream MH
01 0198
Dir. of Survey
Downstream
Length Surveyed
306.6 ft.
Total Length
306.6 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
162
O&M Index
1
O&M Quick
311D
O&M Rating
29
Overall Index
2
Overall Quick
—
Overall Rating
191
Pipe schematic from manhole 01 0199 to 01 0198
MH: 01 0199MH: 01 0198downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 01990 ft. MWM - Water Mark, 15 %of cross sectional area23.2 ft. CM - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES29.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"31.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"39.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES42.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start51.2 ft. RFJ - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES, Start58.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"80 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"81.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"81.5 ft. RFL - Roots Fine Lateral, at 10 o'clock125.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"148.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"178 ft. RFJ - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish178.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"181.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"189.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"231.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"248.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"257.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"292.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"302.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish306.6 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK306.6 ft. AMH - Downstream Manhole, Survey Ends - 01 0198

Observation photos (5)

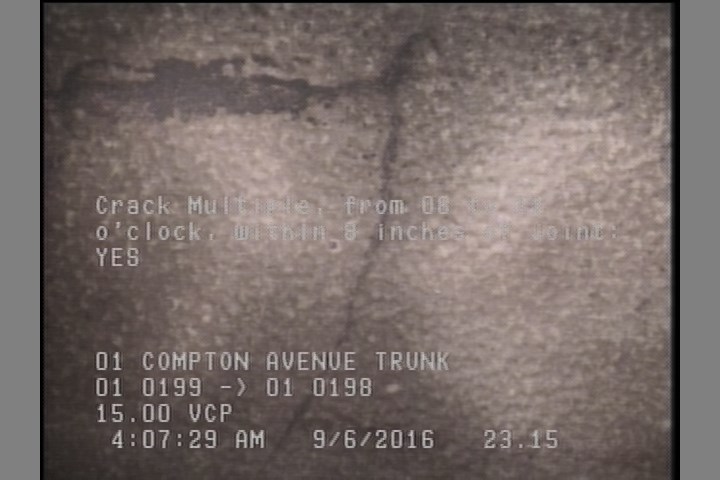

  • Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

    23.2 ft. - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

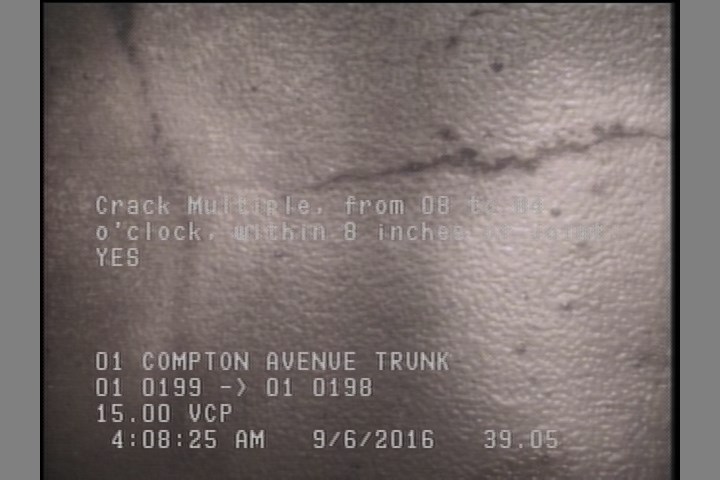

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    39.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

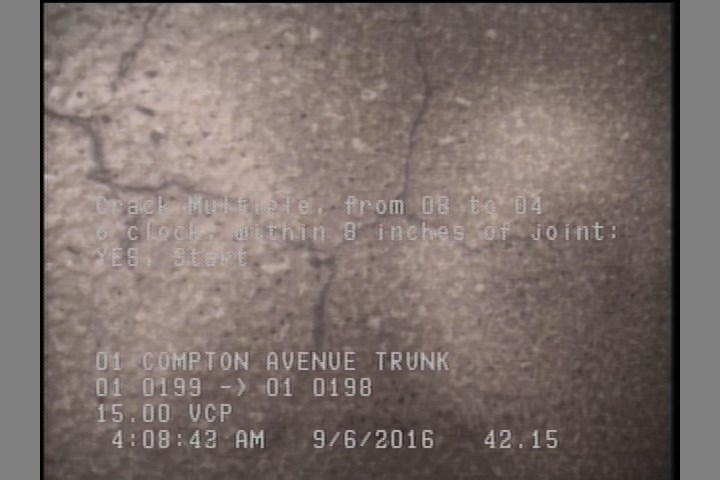

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    42.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

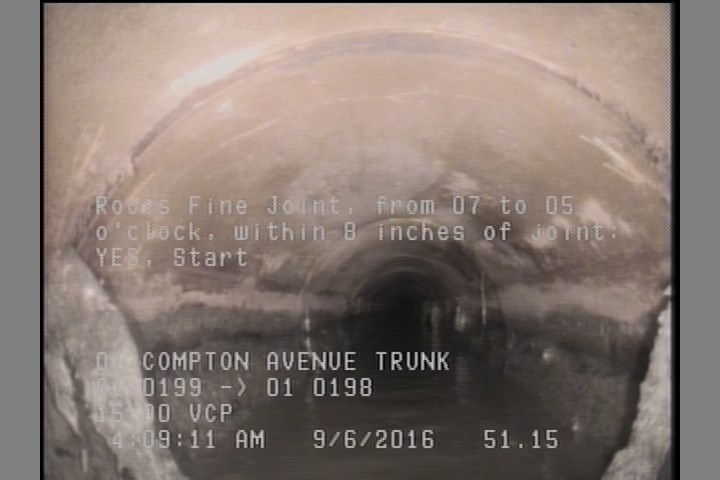

  • Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    51.2 ft. - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

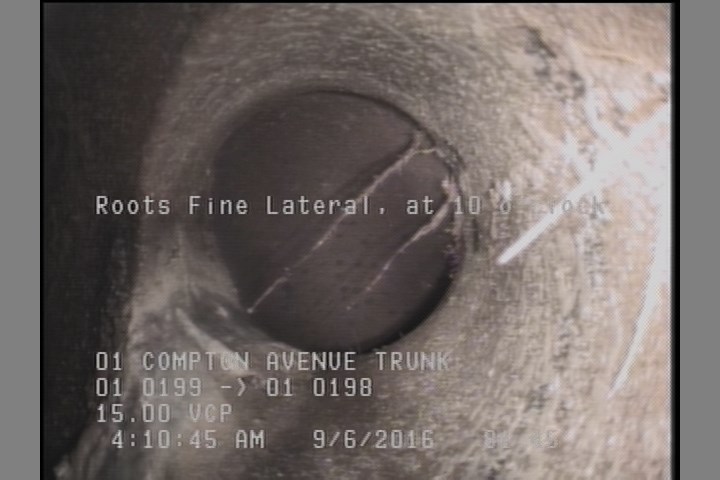

  • Roots Fine Lateral, at 10 o'clock

    81.5 ft. - Roots Fine Lateral, at 10 o'clock

All inspections of P01241Work order 585995

Observations (26)

DistanceCodeObservation
306.6MGOLATERAL AT MH 3 OCLOCK
51.2RFJ—
0MWL—
148.9TFC—
29.5TFC—
178.6TFA—
42.2CM—
178RFJ—
292.7TF—
257.3TFC—
81.5TF—
23.2CM—
0AMH01 0199
181.5TF—
302.8CM—
39.1CM—
58.7TF—
231.5TFA—
31.6TF—
248.7TF—
125.9TF—
189.7TF—
306.6AMH01 0198
0MWM—
81.5RFL—
80TF—

Properties (4)

additional_info
SC306169
custom_field_two
3
customer
LACSD
datetime
2016-09-06T04:05:11-07:00
